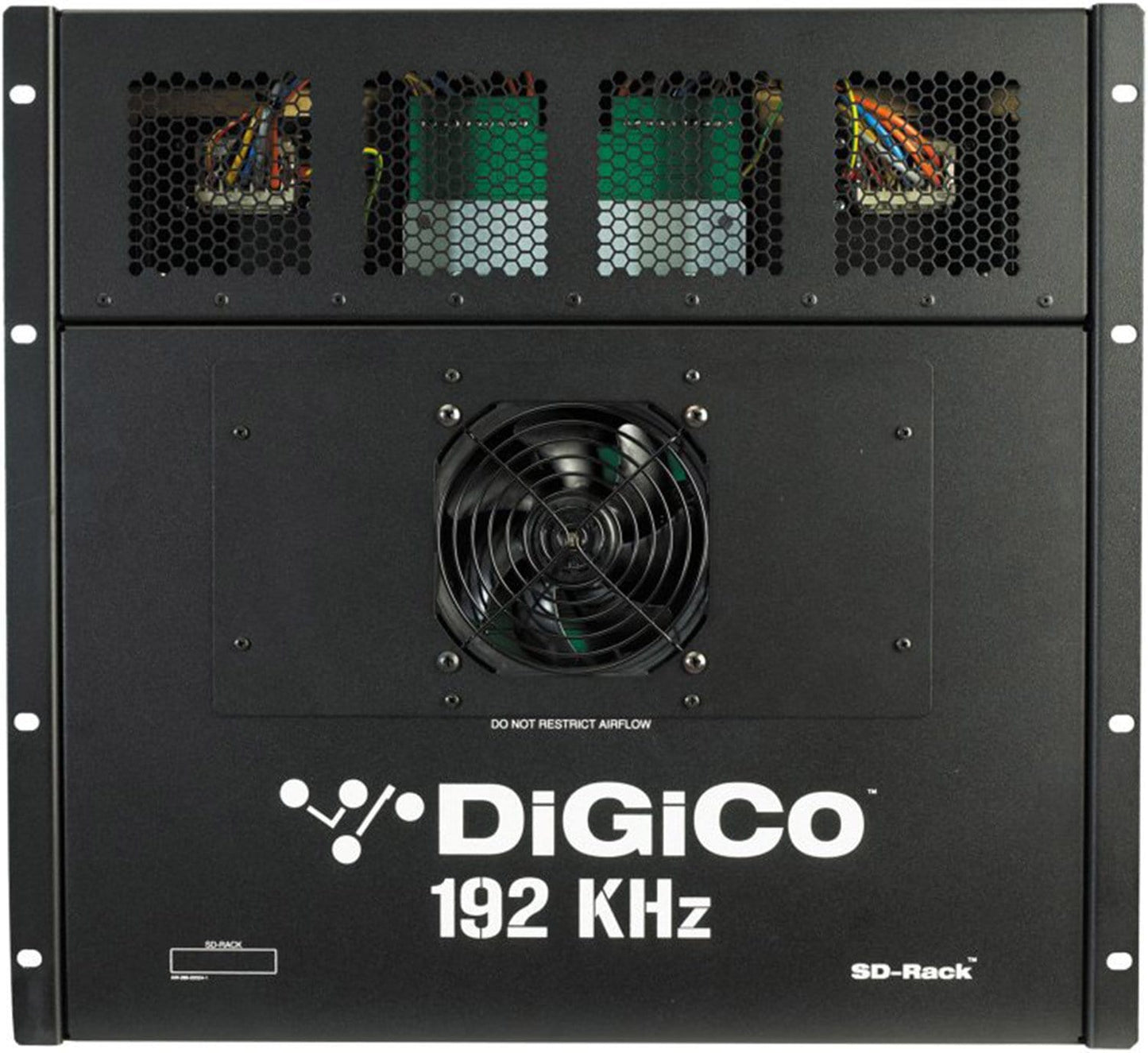

DiGiCo SDRACKHMA Interface Rack for SD Console

Must be bought with Digico SD7 or Quantum 338 Console.

Populated with the following cards:
(7) SDAADC192 - 56 Analog Inputs
(4) SDDAC192 - 32 Analog Outputs
(1) SDAESO - 4 AES-EBU Outputs
(1) Optocore HMA Card

The DiGiCo SD-Rack is a 14 slot input and output rack, allowing up to 56 inputs and 56 outputs. The SD-Rack is compatible with a large selection of analogue and digital modules including DiGiCo’s 32-bit DACs, Dante, AES/EBU and Aviom. Based on the same Stealth FPGA technology as the world-renowned SD-Range of consoles, the result is industry-leading A/D conversion complete with DiGiCo’s famous Gain Tracking™.

Features:

• 14 card module slots (up to 56 inputs and 56 outputs)
• 10U Rack Mountable
• Gain Tracking™
• Proven touring ready rugged design
• Easily accessible, hot-swappable, redundant PSUs
• Removable PSUs and MADI Pod for cleaning and repair
• MADI Split outputs
• Inbuilt SRC for MADI Split outputs
• Flashing screen to indicate system OK from a distance
• Locked controls to prevent accidental setting changes
• Internal Oscillator
• Can be used as a standalone rack

Specifications:

• WORKSURFACE
  • 14 card module slots (7 input and 7 output)
  • 2 x Redundant, hot-swappable PSUs
  • 1 x Optocore Interface (Optional)
  • 1 x LCD Menu Screen
  • 4 x Menu Buttons
  • 1 x MADI Main I/O BNC
  • 1 x MADI Aux I/O BNC
  • 1 x MADI Split Main Output BNC
  • 1 x MADI Split Aux Output BNC
  • Word Clock I/O BNC
  • 1 x USB 2.0 Type B port
• SIGNAL PROCESSING
  • Internal Oscillator
  • Inbuilt Sample Rate Conversion for split outputs
  • Gain Tracking™
• OPTIONS
  • Optocore Interface (HMA, OpticalCon or ST connectivity)
  • Upgrade to SingleMode Optocore
  • Compatible Cards: 32-Bit Mic Pre / 32-Bit DAC / ADC / DAC / AES I/O XLR / AES I/O BNC / AES Input / AES Output / AES42 / Dante / ADAT / SDI I/O / Aviom
  • Blanking Plate
• AUDIO SPECIFICATIONS
  • Sample Rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176kHz or 192kHz
  • Optocore Fibre Speed: 1G or 2G
  • Split Output MADI Type: 56 Ch, SD Rack or 64 Ch
  • Oscillator Level: -96dB to 0dB
  • Oscillator Frequency: 20Hz to 22kHz
• PHYSICAL
  • Dimensions: 482.7mm (w) x 371mm (d) x 443.7mm (h)
  • Weight: 26kg (Unloaded)
  • Power Requirements: 85-264 VAC, 47-440Hz, 4A MAX
  • Redundancy: Internal hot-swappable PSUs x 2
  • Product Code: X-SD-RACK (Unloaded MADI only)
  • Product Code: X-SD-RACK-O (Unloaded HMA optics)
