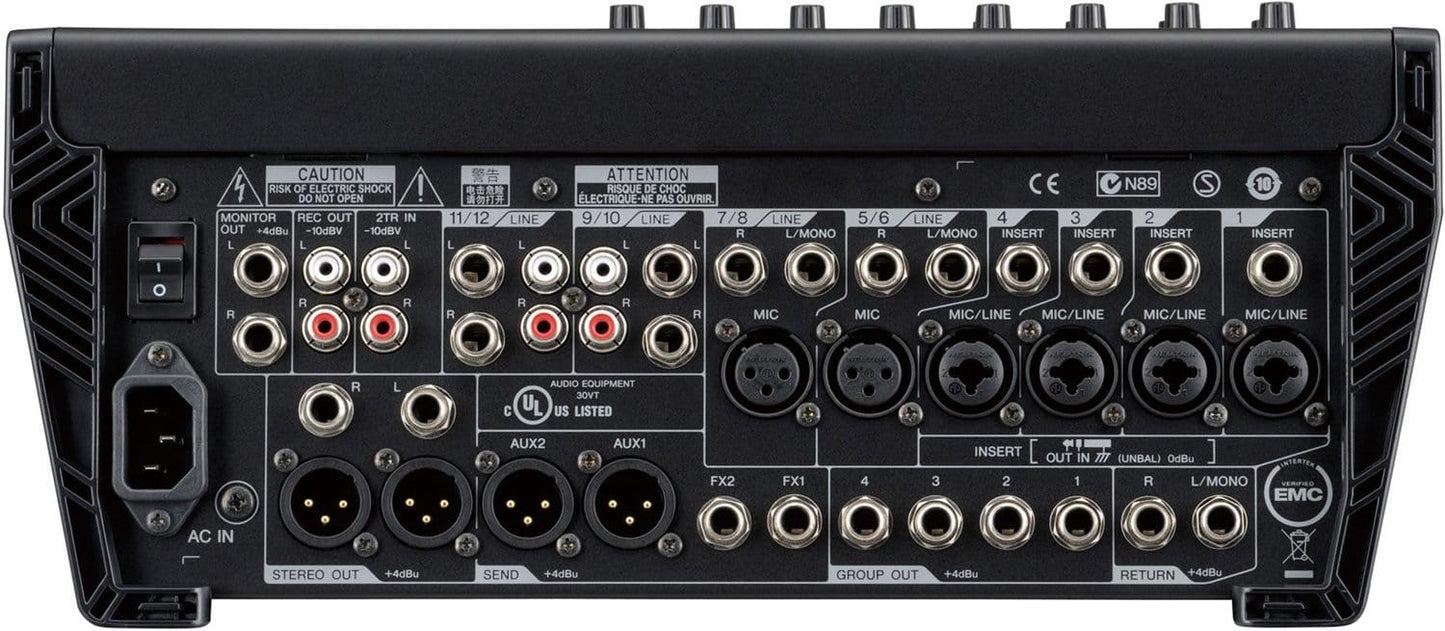

Yamaha MGP12XCA 12-Channel Analog Audio Console
The Yamaha MGP12X 12-Channel Premium Mixing Console is the result of the call for a small format sound reinforcement console with a feature set that meets the demands of today's touring bands, performance groups, live venues, houses-of-worship, town halls, and more. The console features a total of 12 input channels with 4 mono inputs, and 4 stereo inputs, dual effects processor, 1-knob compression, stereo hybrid channels, and optional control / audio playback from Apple iPads and iPhones.
Features:
- Studio-grade discrete class-A "D-Pre" mic preamps with an Inverted Darlington Circuit
- Musical X-pressive EQ based on Yamaha's famed VCM technology
- Professional 1-knob compressors with LED indicators
- High-grade dual digital effects processors: Advanced REV-X and classic SPX
- Stereo hybrid channels utilizing a powerful, proprietary DSP
- Digital connectivity for iPod/iPhone
- MGP editor for detailed control of the console's DSP settings via iPod/iPhone
- Rugged, impact-resistant, powder-coated metal chassis
- Internal universal power supply for world-wide use
- 6 mic inputs with 48V phantom power and HPF per channel
- 12 line inputs (4 mono and 4 stereo)
- Additional 2TR inputs provided to accept the output from analog devices or iPod/iPhone
- 2 Aux sends + 2 FX sends
- 4 Group Buses + ST Bus
Specifications
- Channels: 12 Line inputs (4 mono and 4 stereo)
- Groups: 4 Group buses + ST bus
- AUX Input: 2 Aux Sends + 2 FX Sends
- Compressor: Compressor CH1-4, HPF (100Hz 12dB/oct)
- EQ Section Mono: ±15dB(Max.), High 8kHz shelving/ Mid 250Hz-5kHz peaking(CH1-4,9-12)/ Low 125Hz shelving
- Stereo:±15dB(Max.):High 8kHz shelving/ Mid 2.5kHz peaking(CH5-8)/ Low 125Hz shelving
- Effects:
- FX1:REV-X(8 Program, Parameter control)
- FX2:SPX (16 Program, Parameter control)
- Microphone Inputs: 6, (100Hz 12dB/oct)
- Phantom Power: 48V phantom power per channel
- Line Inputs Line: 4mono + 4stereo
- Channel insert in: 4
- Return: 1 stereo
- 2TR IN: 1 stereo
- Digital I/O: USB audio USB in: iPod, iPhone exclusive
- THD: 0.02% (20Hz-20kHz@ +14dBu)
- Frequency Response: +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz
- EIN: -128 dBu (20Hz-20 kHz, Rs=150Ω, input gain = maximum)
- Residual Output: Noise -102 dBu (20Hz-20 kHz, Rs=150Ω, input gain = maximum)
- Crosstalk: -74dB @ 1kHz
- Power Requirements: 100-240V 50Hz/60Hz
- Consumption: 45W
- Dimensions (WxHxD) :13.7 x 5.62 x 19.48" (348 x 143 x 495mm)
- Weight: 16.53 lbs. (7.5kg)
- Packaging Info:
- Package Weight: 23.25 lbs.
- Box Dimensions (LxWxH): 24.0 x 19.0 x 9.5"
