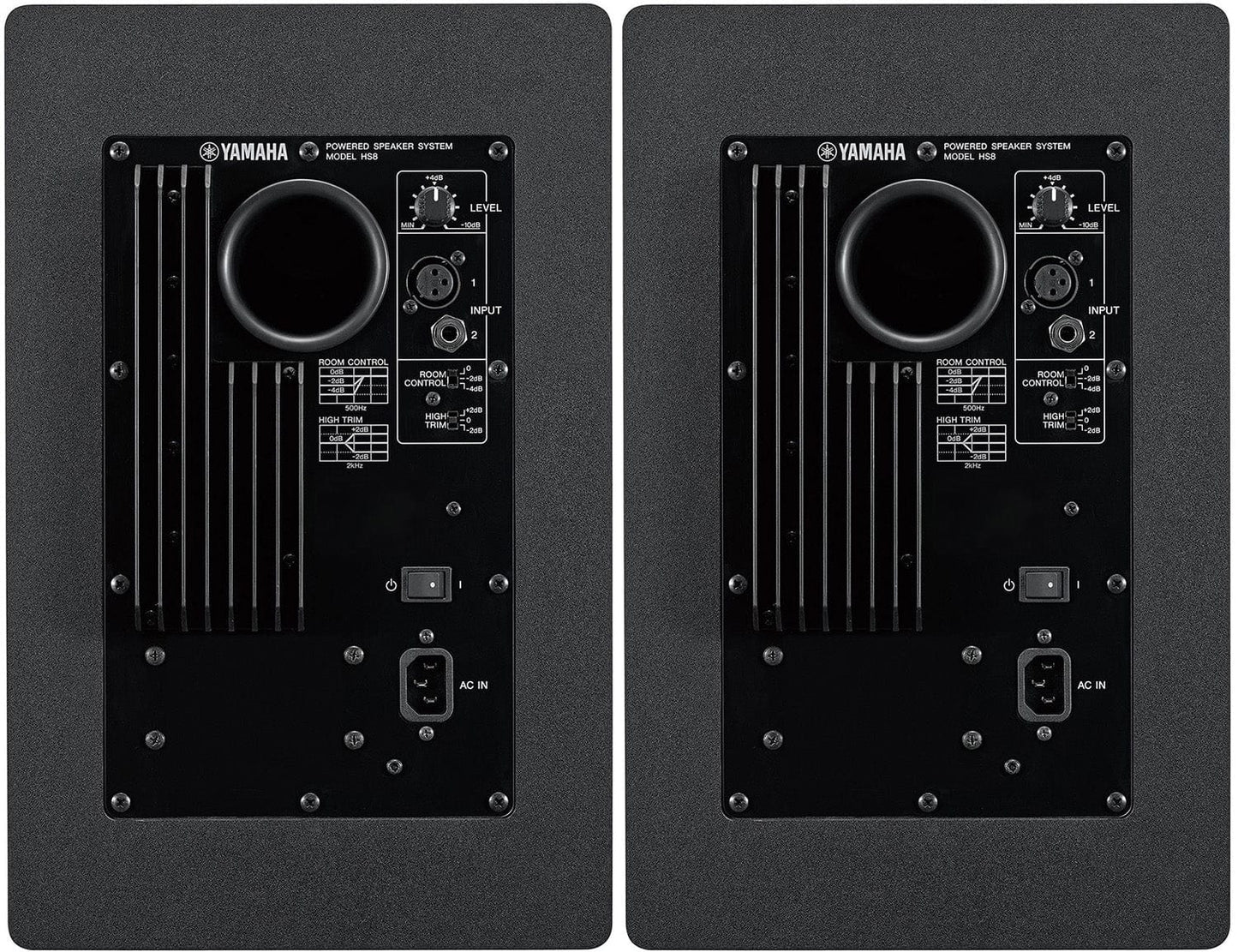

Yamaha HS8-MP Matched Pair of HS8 8-Inch Studio Monitors
The HS8 Powered Studio Monitor from Yamaha is a bi-amplified monitor that is designed for accurate sound reproduction. It is capable of up to 120W of total output and features an 8-inch woofer and a 1-inch tweeter with waveguide that can produce frequencies up to 30kHz. The HS8 has both an XLR and 1/4" TRS input that accept either balanced or unbalanced signals for integration into a variety of studio setups.
Features:
- 120W Total Output
- 8" Cone Woofer
- 1" Dome Tweeter
- Room Control Response Switch
- High Trim
- 1x XLR Input
- 1x 1/4" TRS Input
- Low Resonance Enclosure
Specifications:
- System Type: 2-Way Bi-Amped Powered Studio Monitor
- Frequency Response: 38 Hz to 30 kHz
- Crossover Frequency: 2 kHz
- Transducer:
- LF: 8" (127 mm) Cone
- HF: 1" (25 mm) Dome
- Output Power:
- Total: 120W
- LF: 75W
- HF: 45W
- Input Sensitivity: -10 dBu / 10 kΩ
- Inputs:
- 1x Balanced XLR3-31 Type
- 1x 1/4" (6.35 mm) Balanced TRS
- Controls:
- Level Control (+4 dB/Center Click)
- EQ: High Trim Switch (+/- 2 dB @ HF)
- Room Control Switch(0, -2, -4 dB under 500 Hz)
- Indicators: 1x Power On White LED
- Power Consumption: 60 W
- Enclosure:
- Type: Bass-Reflex
- Material: MDF
- Dimensions (WxHxD): 9.8 x 15.4 x 13.1" (250 x 390 x 334 mm)
- Weight: 22.5 lb (10.2 kg)
- System Type: 2-Way Bi-Amped Powered Studio Monitor
- Frequency Response: 38 Hz to 30 kHz
- Crossover Frequency: 2 kHz
- Transducer:
- LF: 8" (127 mm) Cone
- HF: 1" (25 mm) Dome
- Output Power:
- Total: 120W
- LF: 75W
- HF: 45W
- Input Sensitivity: -10 dBu / 10 kΩ
- Inputs:
- 1x Balanced XLR3-31 Type
- 1x 1/4" (6.35 mm) Balanced TRS
- Controls:
- Level Control (+4 dB/Center Click)
- EQ: High Trim Switch (+/- 2 dB @ HF)
- Room Control Switch(0, -2, -4 dB under 500 Hz)
- Indicators: 1x Power On White LED
- Power Consumption: 60 W
- Enclosure:
- Type: Bass-Reflex
- Material: MDF
- Dimensions (WxHxD): 9.8 x 15.4 x 13.1" (250 x 390 x 334 mm)
- Weight: 22.5 lb (10.2 kg)
