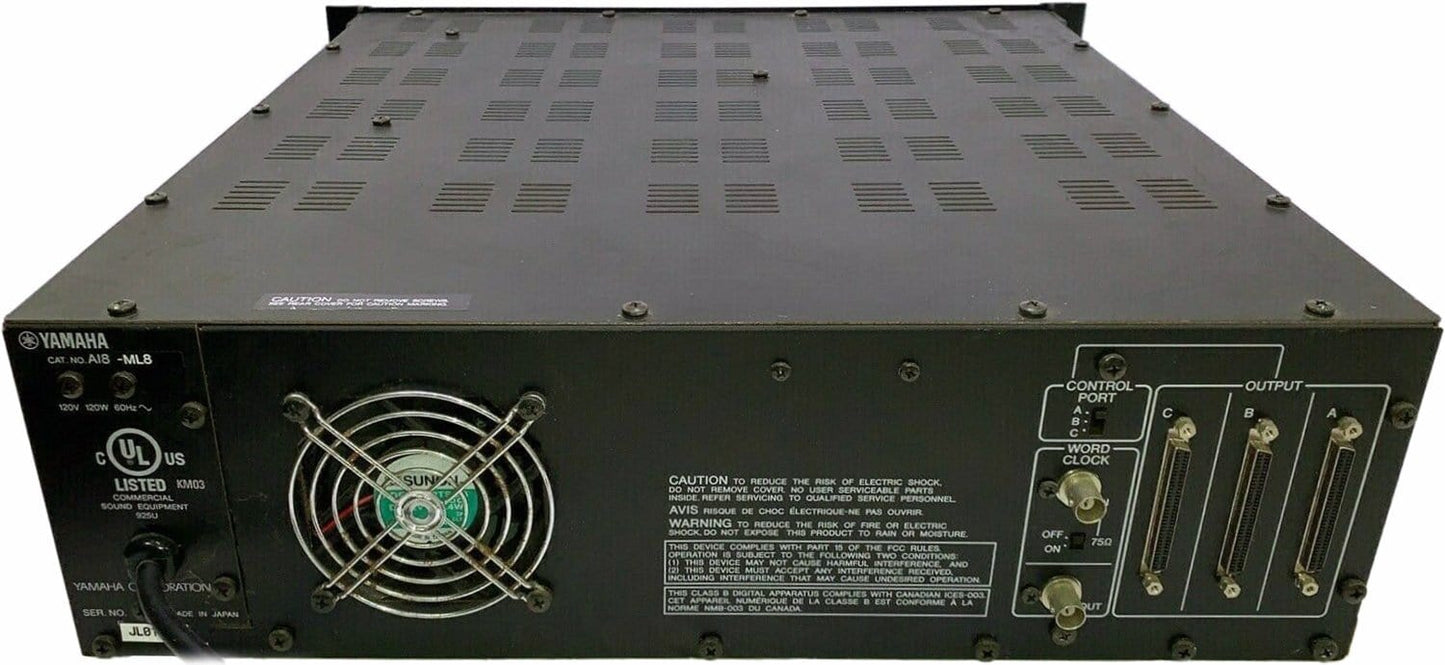

Yamaha AI8ML8F Block for 8x LMY4MLF Cards

The AI8 analog input box, specifically designed for the Yamaha PM1D digital audio mixing system. The AI8 inputs signals to the DSP unit DSP1D/DSP1D-EX engine (controlled via the CS1D control surface). Up to ten AI8s can be connected to each DSP1D/DSP1D-EX.

Specifications

• Sampling frequency (external sync): 39.69 kHz – 50.88 kHz
• Power supply:
  • USA and Canada : 120 V, 60 Hz
  • Others : 230 V, 50 Hz
• Power consumption: 120 W
• Dimensions (W × H × D): 480 mm × 141.5 mm × 466.8 mm
• Weight: 15.4 kg
• Operating temperature: 10 – 35°C
• Power cable length: 2.1 m
• Cooling fan speed: always fixed
• Accessories: Connection cable (68-pin, D-sub, half-pitch) x 1, Length: 3m
