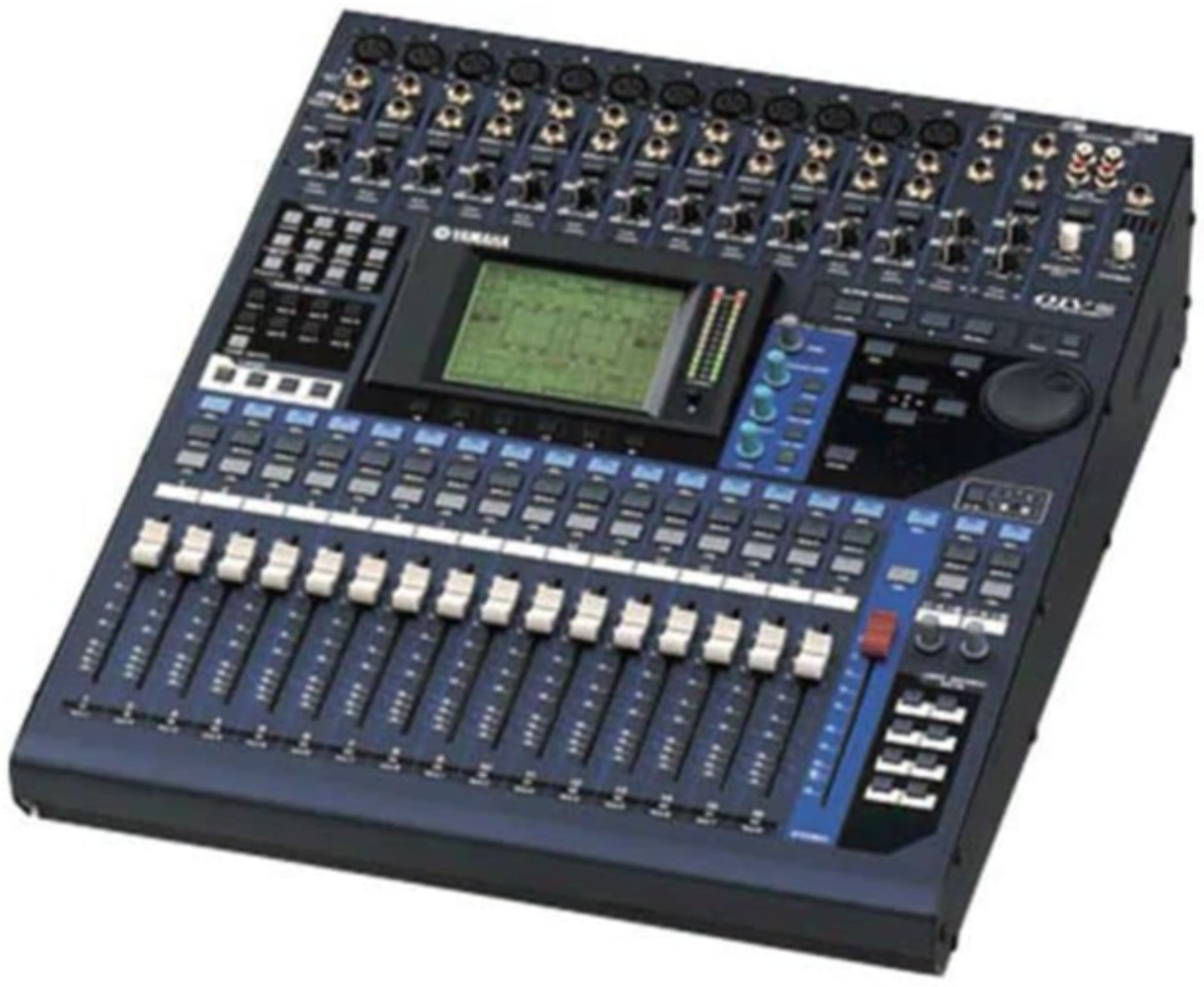

Yamaha 01V96VCM Digital Mixing Console
The 01V96VCM delivers the performance and reliability of Yamaha's acclaimed digital live sound and production consoles in a remarkably compact design that is perfect for home and professional applications where space is limited or maximum portability is required. It may be small, but it can handle up to 40 inputs and can be cascaded if more are required. And now, in addition to the many improvements that were implemented in the 01V96 Version 2, the 01V96VCM comes with a selection of Yamaha's unsurpassed VCM effects built in. Of course the entire console - effects included - features 24 bit/96 kHz operation for ultimate resolution and sound quality that will satisfy the most demanding applications.
Features:
- Built-in VCM Effects
- Precise 24-bit/96-kHz Audio and High-performance Head Amps
- 40-input 18-bus Mix Capacity at 96 kHz
- Versatile Connectivity and Expandability for a Wide Range of Applications
- Powerful Channel Functions with Flexible Control and Patching
- Four Advanced Multi-effect Processors at 44.1/48 kHz, or Two at 88.2/96 kHz
- 01V96 Editor Software Supplied
- Comprehensive Interface with Large LCD, 100-mm Motor Faders, and Dedicated Scene Memory Keys
- Versatile Pairing and Grouping Functions Enhance Mixing Efficiency
- I/O Expansion Slot for Easy Expansion in a Variety of Formats
- Sophisticated DAW or Digital Recorder Integration
- 01V96 Cascade Link and Other Advanced Capabilities
- Built-in VCM Effects
- Channel Strip
- Compressor 276 (mono) / Compressor 276S (Stereo)
- Compressor 260 (mono) / Compressor 260S (Stereo)
- Equalizer 601
- Reverb
- Free Version 2 Download Enhances 01V96 Functionality
- Seamless ADD-ON EFFECTS Support
- A Major Studio Manager Evolution
Specifications:
- Mixing capability:
- Mixing channels: 32 Mono + 4 Stereo
- GROUP: 8
- AUX: 8
- MAIN: Stereo
- Input channel functions: Gate, Attenuator, 4-band PEQ, 2x Compressor, Delay, Pan
- Output channel functions: Attenuator, 4-band PEQ, Compressor, Delay
- On-board processors: 4x SPX multi effectors
- I/O:
- Mic inputs: 12
- Phantom power: +48V DC; ON/OFF per 4ch
- Line inputs: 2x Stereo, 2x 2tr in
- AD converter: 24-bit; 128-time over sampling
- Line outputs: Stereo output, Monitor output, 4x Omni output
- DA converter: 24-bit; 128-time over sampling
- Digital I/O: ADAT (8-in/8-out), 2tr in/out
- Expansion slots: Mini-YGDAI (16-in/16-out)
- Control and others: To Host(USB), MIDI, Word clock I/O
- Internal processing: 32bit, Accumulator: 58bit
- Sampling frequency rate
- Internal: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
- External: 44.1kHz/88.2kHz (-10%) - 48kHz/96kHz (+6%)
- Signal delay: Less than 1.6ms (@48kHz), Less than 0.8ms (@96kHz)
- Total harmonic distortion: Less than 0.05% (20Hz-40kHz)
- Frequency response: 0, +0.5, -1.5dB 20Hz-40kHz
- Dynamic range: DA: 110dB; AD+DA: 105dB
- Hum & noise level:
- Equivalent input noise: -128dBu
- Residual output noise: -86dBu
- Crosstalk: -80dB
- Power requirements: AC100V, 120V, 220-240V 50/60 Hz
- Power consumption: 90W
- Dimensions:
- W: 436mm; 17-3/16in
- H: 150mm; 5-7/8in
- D: 548mm; 21-9/16in
- Net weight: 15kg; 33.1lbs
- Accessories: Owner’s Manual, Studio Manager Installation Guide, AC power cord
