XTA SIDD DP324 Dual-Channel Dynamics Processor

XTA SIDD DP324 Dual-Channel Dynamics Processor

SiDD is Seriously Intelligent Digital Dynamics - a powerful dual/stereo-channel dynamics processor for Front of House System Control, Channel Insert, In-Ear Monitoring, Stage Monitoring, Recording, Mastering and Broadcast, offering compressor, limiter, gate/expander, dynamic EQ, parametric input EQ, ADT' harmonics generators, sidechain EQs, delay and instant recall factory user/presets, all in 1U.

Features:

• Superb audio quality – carefully optimised double precision signal processing coupled with a 40-bit internal data path ensures a dynamic range in excess of 110dB. The high sampling rate means minimal filtering providing exceptional sonic purity.
• A highly accurate 6 band parametric equaliser on each input, providing +15 to –30dB of gain at centre frequencies between 20Hz and 20kHz, with a wide range of ‘Q’s available between 0.4 to 128. All parameters feature fine resolution with 1/36 octave frequency steps, 0.1dB gain increments, and 100 ‘Q’ settings. Any parametric section can also be set to operate as a high or low shelving filter.
• A fully featured compressor with two bands of sidechain equalisation, and featuring variable knee and ‘look-ahead’ delay for absolute control.
• A noise gate / expander, again with dedicated sidechain processing – high and low pass filters plus two parametrics. The ‘look ahead’ design allows the gate to open before the signal arrives, completely eliminating clicks.
• A dynamic equaliser – compress or expand only the frequency band you choose, with unprecedented control and precision.
• A delay line with separate ‘A.D.T’ module that may be routed to the auxiliary outputs. This allows for ‘staging’ of performers ‘front/back’ and ‘left/right’ of the soundstage.
• A ‘brickwall’ limiter with sidechain EQ and ‘look ahead’ ability for pre-emptive adaptation to signal peaks, and so complete prevention of overshoot.
• A harmonics generator to introduce controlled levels of second and third harmonic distortion, for simulation of ‘valve’ sound characteristics.
• Three velocity-sensitive encoders provide a familiar and intuitive control format with all filter information displayed simultaneously on a 2 x 24 character backlit LCD screen.
• The comprehensive standard specification also includes 256 memories, PC Card storage and remote control via MIDI, RS232 or RS485 ports, with security lock-out.
• AES/EBU digital input and output interfaces are available as an option.
• Input and output balancing transformers are also available as an option.

Specifications:

• Inputs: 2 electronically balanced◆
  • Impedance: > 10k ohms.
  • CMRR : >65dB 50Hz - 10kHz.
• Outputs: 4 electronically balanced◆
  • Source Imp: < 60ohms
  • Min. Load: 600ohm
  • Max. Level: +20dBm into 600 ohm
• Frequency Resp.:+½dB 20Hz-20kHz
• Dyn Range: >110dB 20Hz-20k unwtd
• Distortion: <.02%@1kHz,+18dBm
• Maximum Delay: 300 mS
• Min Step Size: 21μS
• Input Gain: +15dB in 0.1dB steps
• Output Gain: -60dB - +15dB in 0.1dB steps, and ‘Off’
• Parametric Equalisation: 6 per Channel
  • Filter Gain: +15dB to -30dB in 0.1dBsteps.
  • Freq. Range: 20Hz - 20kHz, 1/36 octave steps. (368 positions)
  • Filter Q / BW: 0.4 to 128 / 2.5 to 0.008 (Sections switched to shelving response)
  • Low frequency: 20Hz - 1kHz
  • High frequency: 1kHz - 20kHz
  • Shelf gains: ±15dB in 0.1dB steps.
• High and Lowpass Filters:
  • Filters: 1 of each per output.
  • Freq. Range HPF: 10Hz - 16kHz
  • 1/36 octave steps.
  • Freq. Range LPF: 35Hz - 22kHz
  • 1/36 octave steps.
  • Responses: Bessel/Butterworth 12db/Octave
• Dynamics Processing:
  • Dynamic EQ module x 2
  • Gate/Expander x 2
  • Compressor x 2
  • Limiter x 2
• Additional Processing:
  • Harmonics Generator
  • A.D.T.Module
• Display:2x24 character backlit LCD
• Input meter: 2 x 7 point, -18dB to +18dB.
• Output meter: 2 x 7 point, -18dB to +18dB.
• Gain reduction and Threshold metering for each module.

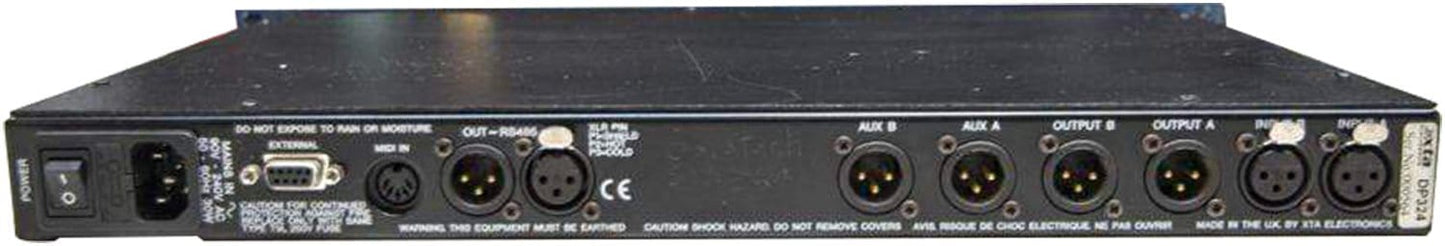

• Connectors:
  • Inputs: 3 pin female XLR
  • Outputs: 3 pin male XLR.
  • MIDI In: 5 pin DIN
  • External: 9 pin DEE connector (RS232)
  • RS485:3 pin male XLR (out) 3 pin male
  • XLR (in)
  • Power: 3 pin IEC
• Power: 60 to 250V ±15% @ 50/60Hz.
• Consumption: < 20 watts.
• Weight : 3.5kg. Net (4.8kg. Shipping)
• Size: 1.75"(1U) x 19" x 11.8" (44 x 482 x 300mm) excluding connectors.
• Options ◆ = Transformers available.
• Optional Interfaces: AES/EBU Digital Input/Output
