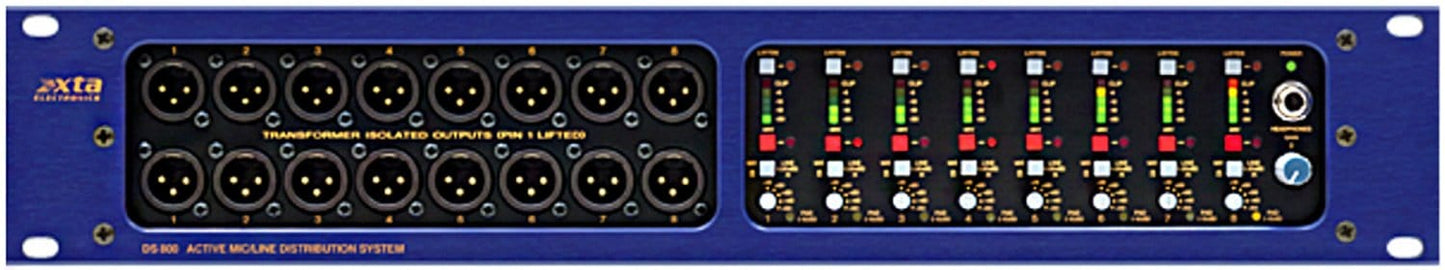

XTA DS800 8x32-Channel Microphone/Line Distribution System
The XTA DS800 Mic / Line Distribution System is a high quality active distribution / splitter unit containing eight channels of processing in 2U of rack space. Each channel features one actively balanced input and a total of four outputs, two of which are individually actively balanced and normally connected to Front Of House and Stage Monitor consoles. The two remaining outputs are transformer isolated and located on the front panel of the unit. These are typically used as broadcasting or recording feeds. A maximum of 50dB gain is available via the five position Gain switch. This allows sufficient gain to be applied to low level signals, such as dynamic microphones, to avoid the poor noise performance often associated with active mic splitters. Phantom power (48VDC) is provided, and is switchable to each input by selecting 'Phantom Power' on the front panel. The DS800 is designed to reduce system grounding problems; please refer to the 'System Grounding' section further on in this manual for more information.
Features:
- Remote activated pad, adjustable gain, mic/line switch
- 48V phantom power, 5 segment LED metering, listen facility
- Headphone output and associated gain control are also provided
Specifications
- Inputs: 8 electronically balanced
- Impedance (microphone): 2k ohms
- Impedance (Line): 10k ohms
- CMRR: >80dB @ 1kHz
- Outputs:
- FOH: 8 electronically balanced
- MON: 8 electronically balanced
- Isolated Feeds: 16 Transformer balanced. 2.5kVAC for 1 min. isolation
- Source Imp: < 80ohms
- Min. Load: 600ohm
- Max. Level: +20dBm into 600 ohm load
- Gain: 10dB, 20dB, 30dB, 40dB or 50dB via 5 position switch
- Headroom meter: 5 point LED @ 0, -6, -12, -18, -30dB below clipping
- Frequency Resp.: ±0.5dB 20Hz - 20kHz
- Equivalent Input Noise( 20Hz -20kHz. Unweighted):
- 10dB Gain: < -112dBm
- 20dB Gain: < -117dBm
- 30dB Gain: < -120dBm
- 40dB Gain: < -120dBm
- Distortion: < 0.01% @ 1kHz, +4dB output
- Connectors:
- Inputs: 3 pin female XLR.(Pin 1 =Gnd, Pin 2 =Hot, Pin 3 =Cold)
- Outputs FOH: 3 pin male XLR.(Pin 1 =Gnd, Pin 2 =Hot, Pin 3 =Cold)
- Outputs MON: 3 pin male XLR.(Pin 1 =Gnd, Pin 2 =Hot, Pin 3 =Cold)
- Isolated Outputs: 3 pin male XLR..(Pin 1 =N/C, Pin 2 =Hot, Pin 3 =Cold)
- Power: 3 pin IEC
- Power: 80 to 250VAC @ 50/60Hz
- Consumption: < 40 watts
- Weight: 8.1kg. Net (9.5kg. Shipping)
- Size: 3.5"(2U) * 19" * 12.2" (88 * 482 * 312mm) excluding connectors
- Inputs: 8 electronically balanced
- Impedance (microphone): 2k ohms
- Impedance (Line): 10k ohms
- CMRR: >80dB @ 1kHz
- Outputs:
- FOH: 8 electronically balanced
- MON: 8 electronically balanced
- Isolated Feeds: 16 Transformer balanced. 2.5kVAC for 1 min. isolation
- Source Imp: < 80ohms
- Min. Load: 600ohm
- Max. Level: +20dBm into 600 ohm load
- Gain: 10dB, 20dB, 30dB, 40dB or 50dB via 5 position switch
- Headroom meter: 5 point LED @ 0, -6, -12, -18, -30dB below clipping
- Frequency Resp.: ±0.5dB 20Hz - 20kHz
- Equivalent Input Noise( 20Hz -20kHz. Unweighted):
- 10dB Gain: < -112dBm
- 20dB Gain: < -117dBm
- 30dB Gain: < -120dBm
- 40dB Gain: < -120dBm
- Distortion: < 0.01% @ 1kHz, +4dB output
- Connectors:
- Inputs: 3 pin female XLR.(Pin 1 =Gnd, Pin 2 =Hot, Pin 3 =Cold)
- Outputs FOH: 3 pin male XLR.(Pin 1 =Gnd, Pin 2 =Hot, Pin 3 =Cold)
- Outputs MON: 3 pin male XLR.(Pin 1 =Gnd, Pin 2 =Hot, Pin 3 =Cold)
- Isolated Outputs: 3 pin male XLR..(Pin 1 =N/C, Pin 2 =Hot, Pin 3 =Cold)
- Power: 3 pin IEC
- Power: 80 to 250VAC @ 50/60Hz
- Consumption: < 40 watts
- Weight: 8.1kg. Net (9.5kg. Shipping)
- Size: 3.5"(2U) * 19" * 12.2" (88 * 482 * 312mm) excluding connectors
