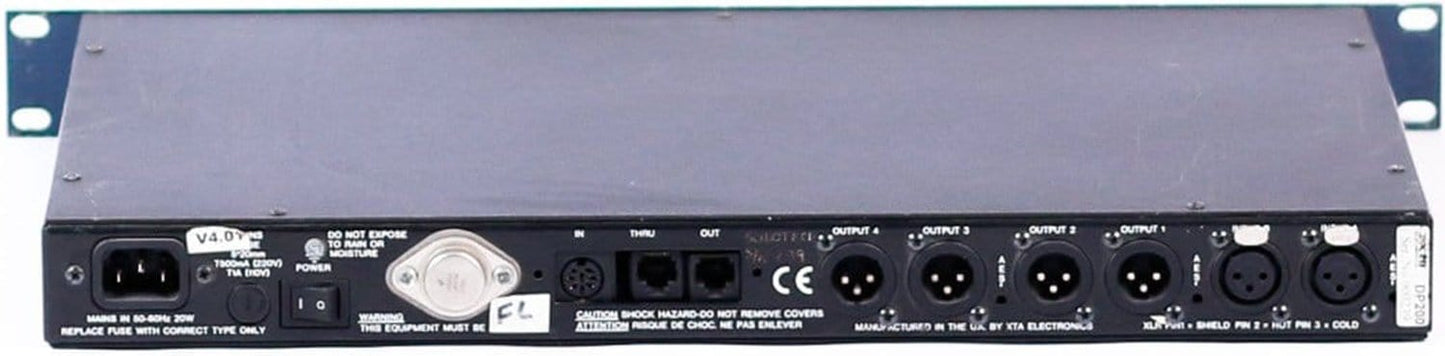

XTA DP200 Digital Equaliser

XTA DP200 Digital Equaliser

The DP200 is a compact and powerful DSP based audio processing unit, ideally suited for fixed installations, where it combines the functions of multiple conventional products in a compact 1U high unit. To achieve this the DP200 provides:- 2 input 4 output format, 10 configurations including 4 crossover modes, 4x 8 bands of parametric equalisation, up to 682mS delay, variable High and Lowpass filters, 4 output limiters and digital level controls for each output. Each parametric section can be positioned between 20Hz & 20kHz, features a wide range of Q's and has +15dB to -30dB gain available, controllable in 0.1dB steps. The first two sections can also be designated a Low or High frequency shelving filter. MIDI control and user memories are provided, and also a multi-level security 'lock-out' function for all controls.

Features:

• Superb audio quality : Carefully optimised Double Precision processing plus 40 bit internal data path for exceptional dynamic range and sonic quality.
• A flexible 2 input, 4 output multi-mode format featuring a choice of 2 way / 4 way / 3 way + Sub Crossover, dual 16 / quad 8 band parametric equaliser and dual 14 / quad 5 band parametric equaliser with limiters.
• Each parametric section provides +15dB to -30dB of gain at any centre frequency 20Hz - 20kHz with a wide range of Q's from 0.4 to 128. All parameters feature fine resolution with 1/24 octave frequency steps, 0.1dB gain increments and 100 Q settings.
• Parametric sections 1 and 2 can be set for LF & HF shelving response.
• Four high performance limiters are provided, featuring a wide range of control over Attack, Release and Threshold parameters. A limiter display function provides four 'over-limit' meters simultaneously on the LCD display.
• Variable High and Low pass filters for each output can be set for 12, 18 and 24dB / octave slopes and a choice of Bessel, Butterworth or Linkwitz-Riley responses are available. Independent control over High & Lowpass functions allows asymmetric crossover functions to be realised.
• Phase reverse is selectable for each output.
• Three velocity-sensitive rotary encoders provide a familiar and easy to use control format with all filter information displayed simultaneously on a backlit LCD display.
• Channel and section 'Flat' keys are provided allowing A/B comparison, or equalisation to be pre-set and then dropped in.
• Delay of up to 682mS can be independently set for each output with a minimum increment of 21μS.
• Comprehensive standard specification includes 40 memories, MIDI for external control & linking master / slave units, selectable operating level and multi-level security lock-out function.
• The DP200 provides exceptional audio quality with a full 103dB dynamic range, high sampling rate and minimal filtering.
• Wide range digital control of level is provided for each output. This also allows mute to be applied to any output.
• AES / EBU digital inputs and outputs are available as an option, with optical I/O also available to special order.
• Optional RS232,RS422 and RS485 interfaces are also available. These also provide for close-contact recall of memories 1 to 5, (or 1 to 31 using a binary encoded arrangement.)

Specifications:

• Inputs: Two electronically balanced.◆
  • Impedance: > 10k ohms.
  • CMRR: >65dB 50Hz - 10kHz.
• Outputs: Four electronically balanced.◆
  • Source Imp: < 60ohms.
  • Min. Load: 600ohm.
  • Max. Level: +20dBm into 600 ohm load.
• Frequency Resp.: ±0.5dB 20Hz - 20kHz.
• Dynamic Range: >103dB 20Hz -20kHz. unwtd.
• Distortion: < 0.02% @ 1kHz, +18dBm.
• Maximum Delay: 682 mS. (increment 21 μS)
• Output gain: Adjustable +15dB to -40dB in 0.1dB steps and mute.
• Input gain: Adjustable 0dB to -40dB in 0.1dB steps. (crossover modes only)
• Parametric Equalisation:
  • Filters: 8 Sections per output ( 16 in Dual mode).
  • Filter gain: +15dB to -30dB in 0.1dB steps.
  • Centre frequency: 20Hz - 20kHz, 1/24 octave steps. (240 positions)
  • Filter Q: 0.4 to 128
• (Sections 1 & 2 switchable to Shelving response):
  • Low frequency: 20Hz - 1kHz
  • High frequency: 1kHz - 20kHz
  • Shelf gains: ±15dB in 0.1dB steps.
• High and Lowpass Filters:
  • Filters: 1 of each per output.
  • Frequency (HPF): 10Hz - 16kHz, 1/24 octave steps.
  • Frequency (LPF): 60Hz - 22kHz, 1/24 octave steps.
  • Response: Bessel / Butterworth 12/18/24dB per octave and Linkwitz-Riley 24dB per octave.
• Limiters
  • Threshold: +20dBu to -27dBu (dependent on operating level).
  • Attack time: 1 to 99 milliseconds.
  • Release time: 4, 8 or 16 times the attack time.(Slow, Medium, Fast)
• Operating level: Headroom selectable +3dB, +8dB, +15dB & +20dB.
• Display: 2 x 20 character backlit LCD.
• Headroom meter: 2 x 7 point, -30dB to clip.
• Connectors:
  • Inputs: 3 pin female XLR.
  • Outputs: 3 pin male XLR.
  • MIDI: In / Out / Thru 5 pin DIN.
  • Power: 3 pin IEC.
• Power: 110 / 220 V ±15% @ 50/60Hz.
• Consumption: < 20 watts.
• Weight: 3.5kg. Net (4.8kg. Shipping)
• Size: 1.75"(1U) * 19" * 11.8" (44 * 482 * 300mm) excluding connectors.
• Optional Interfaces: RS232 (9 way DEE), RS422 (9 way DEE) and RS485 (8way RJ45 x 2). These options also provide closed contact memory recall via 8 pin DIN socket.
• Options:
  • ◆ = Transformers available.
  • Relay bypass.
  • Digital I/O.
