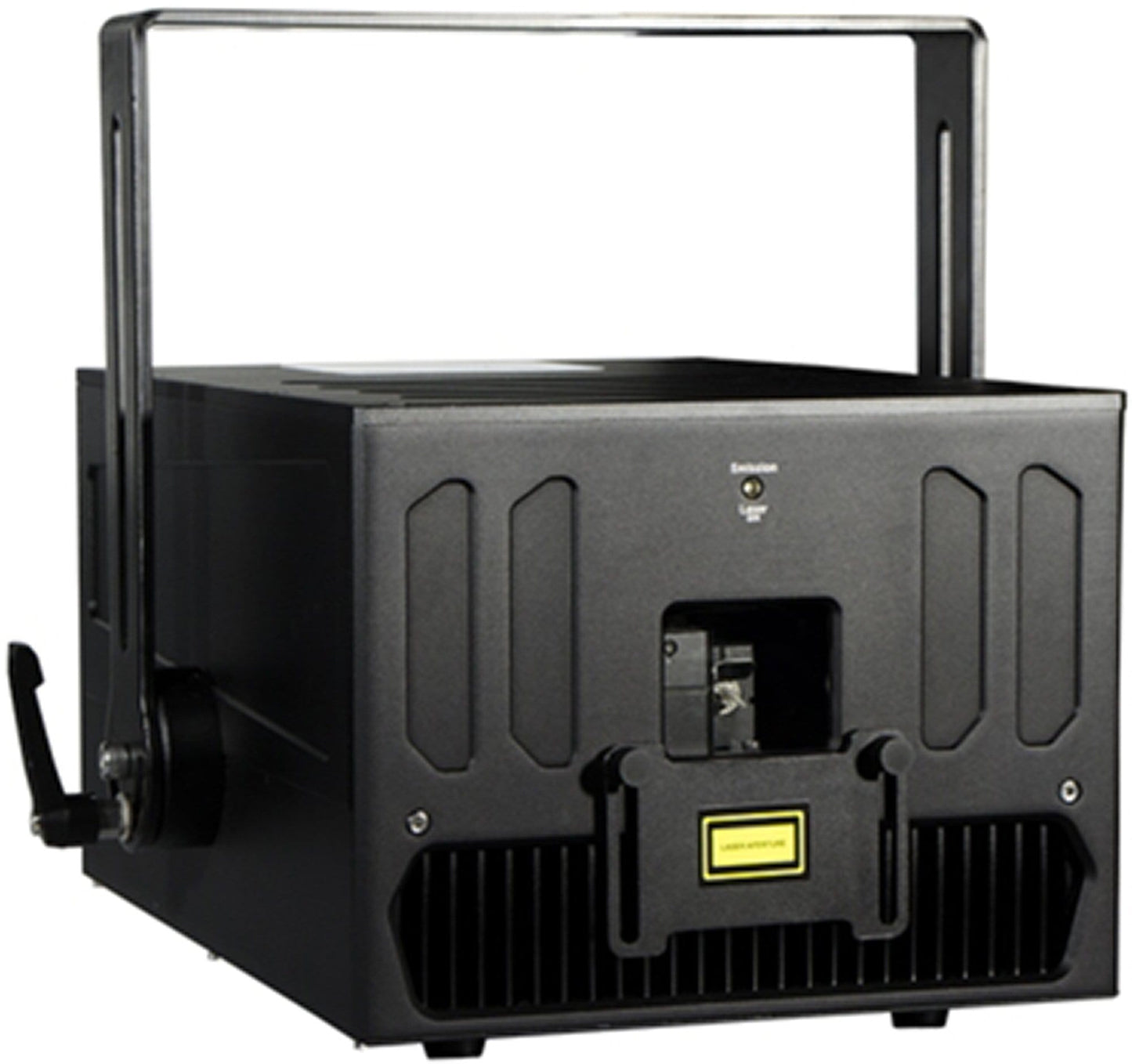

X-Laser Skywriter HPX M-30 30-Watt RGB Mercury Laser
The Skywriter HPX 30W is engineered to outmatch the competition, by offering superior brightness, superior control and superior value. Skywriter models are perfect for large-scale professional touring and install applications. With the ultimate in RGB color mixing technology and total control (via X-Laser’s Mercury), the Skywriter HPX 30W provides incredible laser effects.
Features:
- 30W full RGB
- Fully sealed optical deck
- 20K precision graphics
- High power, high value
- Mercury compatible
- Ideal for large venues, touring acts and large production companies
- Series of external fans keep the components and diodes cool
- Produces more than 1,000 colors with additive analog RGB color mixing
- Eligible for the X-Laser EZ Variance Kit (view accessories)
Specifications:
- Control: X-Laser Mercury integrated
- Scanners: High-speed, closed-loop galvanometers, max scan angle 45 degrees, 20K PPS at 8 degrees
- Settings interface: Mercury LED interface
- Wavelengths: 638nm red, 520nm green, 450nm blue
- Beam source: Direct-injection diode modules
- Color modulation: Analog via FB4, 1,000+ colors
- Beam divergence: 1-2 mRad
- Cooling: External heat sink and fan system
- FDA/IEC hazard class: Class 4
- International safety: IEC 60825-1 ed. 2007
- FDA/CDRH: 21CFR1040.10 and 1040.11(c)
- Canadian safety: CSA C.22.2 No. 60950-1
- EU safety: EN 60825-1, EN 60950
- Control: X-Laser Mercury integrated
- Scanners: High-speed, closed-loop galvanometers, max scan angle 45 degrees, 20K PPS at 8 degrees
- Settings interface: Mercury LED interface
- Wavelengths: 638nm red, 520nm green, 450nm blue
- Beam source: Direct-injection diode modules
- Color modulation: Analog via FB4, 1,000+ colors
- Beam divergence: 1-2 mRad
- Cooling: External heat sink and fan system
- FDA/IEC hazard class: Class 4
- International safety: IEC 60825-1 ed. 2007
- FDA/CDRH: 21CFR1040.10 and 1040.11(c)
- Canadian safety: CSA C.22.2 No. 60950-1
- EU safety: EN 60825-1, EN 60950
