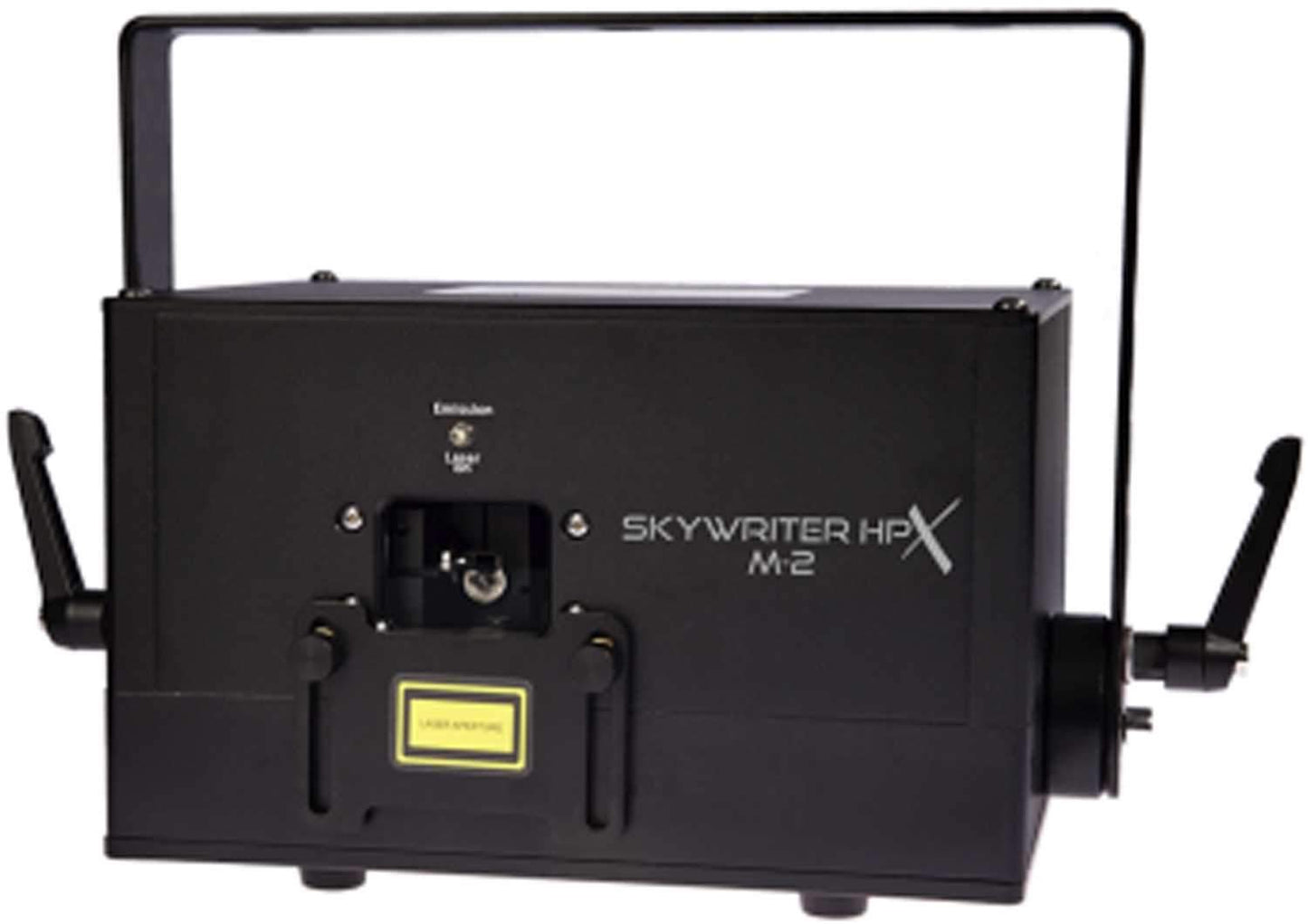

X-Laser Skywriter HPX M-2 RGB 2-Watt Mercury Laser

X-Laser Skywriter HPX M-2 2-Watt Mercury Laser

The Skywriter HPX M-2 is the most affordable way to access X-Laser’s Mercury laser control system in a fixture that is truly road ready. The Skywriter HPX M-2 is the lower-power, lower-cost sibling of their most popular projector, the Skywriter HPX M-5, and is available for less than $2,500 from authorized X-Laser dealers.

The Skywriter HPX M-2 is ideal for small and medium-sized productions where vibrant laser effects can stand out on their own, or be used to complement other effect lighting. Lighting professionals can easily integrate the M-2 into their lighting rigs, and control it in unison with the rest of their lighting, from just about any major console or lighting controller. The Skywriter HPX M-2 has 2W of full RGB laser power and can be used indoors or outdoors, in venues with audiences of up to 1,000 guests.

The lower cost of the Skywriter HPX M-2 combined with their Mercury control system allows for large arrays of lasers with incredible capabilities, all controlled from a lighting console to create amazing cascading movement, dimmer and color chases.

Features:

• 2000mW balanced RGB laser engine
• Single-mode, direct-injection diodes for great modulation and reliability
• Matched diode sets for better beam quality
• Mercury laser control system with the master and basic profiles including:
  • 450+ gobos
  • 11 digital prisms
  • 50 color macros
  • 60 motion macros with variable speed and amplitude
• 5-pin DMX
• Large, matte-finish LCD interface
• Art-Net connectivity (upgradable to their etherStop system)

Specifications:

• Control: X-Laser Mercury control, ILDA
• Scanner: High-speed, closed-loop galvanometers, max scan angle 45 degrees, 30k PPS at 8 degrees
• Settings interface: Mercury LED panel
• Color modulation: Analog via ILDA, 1,000+ colors
• Laser energy: 2W raw (500mW R, 500mW G, 1W B)
• Beam source: Direct-injection diode modules
• Wavelengths: 638nm red, 50green, 445nm blue
• Physical: 15"W x 12.3" L x 9.4" H, 15lbs (381mm x 310mm x 239mm, 6.8kg)
• Housing type: Anodized 6061 aluminum
• Power draw: 40W typical , 85W peak
• Power: 150W PowerCon True in/out 5x20mm 250V 6.3A fast-acting fuse
• Beam divergence: 1.6mRad
• Cooling: TEC, force air
• FDA/IEC hazard class: Class 4
• International safety: IEC 60825-1 ed. 2007
• FDA/CDRH: 21CFR1040.10 and 1040.11(c)
• Canadian safety: CSA C.22.2 No. 60950-1
• EU safety: EN 60825-1, EN 60950
• Included: User Training DVD, User Manual,PowerCON cord, Warranty information, Beam blockfoil, Remote E-Stop Plug, Keys
