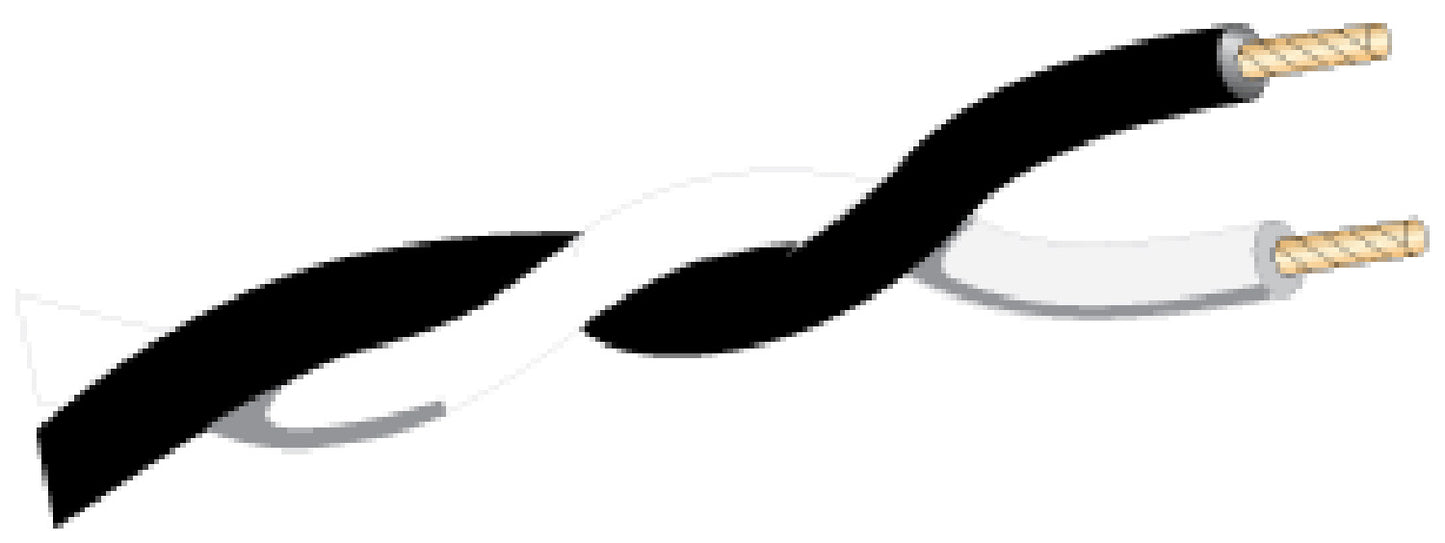

CONSTRUCTION & DIMENSIONS

-

CONDUCTOR PARAMETER

-

   • Number of Conductors

2

   • AWG Size

10

   • Conductor Stranding

65x28

   • Conductor Type

Bare copper

   • Nominal DCR

1.1 Ohm/1000ft

INSULATION PARAMETER

-

   • Insulation Type

PVC-Nylon

   • Insulation Thickness

0.020 in - .005”

   • Insulation Color Code

1. Black 2.White

SHIELDING PARAMETER

-

   • Shield Type

None

ELECTRICAL CHARACTERISTICS

-

OVERALL CONSTRUCTION PARAMETERS

-

Jacket Type

Unjacketed

Jacket Thickness

--

Nominal Cable O.D.

0.326 in

Plenum

No

NEC UL Rating

THHN THWN

RoHS Compliant

Yes

Pull Tension

220 lbs

Bend Radius

2.87 in

Cable Weight

76 lbs

OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS

-

UL Flammability

UL1685

Operating Range

-25 to 90 Deg C - Dry (THHN),

-25 to 75 Deg C - Wet (THWN)

UL Voltage Rating

600
