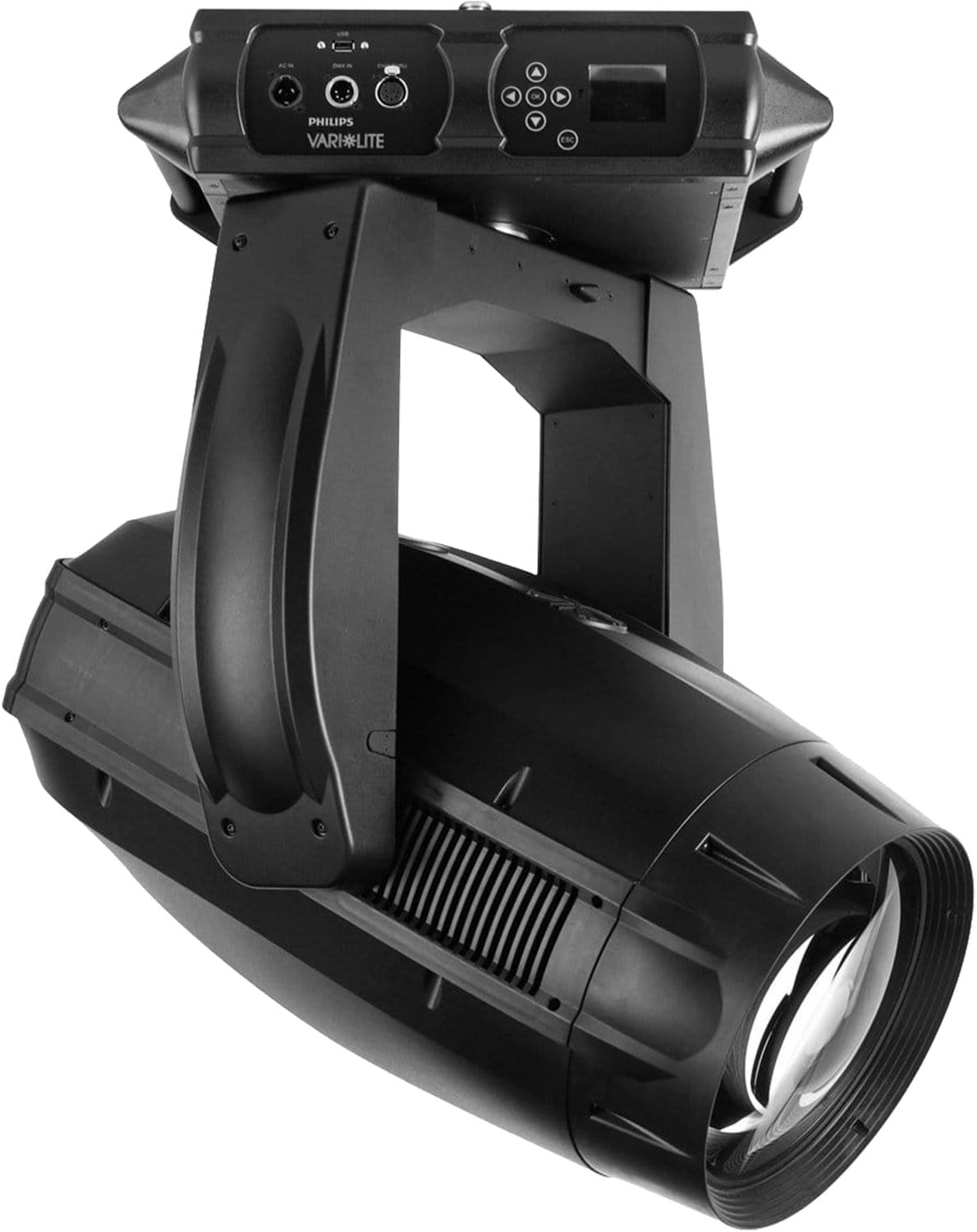

Vari-Lite VL4000 BeamWash Spot Arc Moving Light

Vari-Lite VL4000 BeamWash Spot Arc Moving Light

The Vari-Lite VL4000 BeamWash is designed to provide designers, rental companies, venues and productions with a complement of fixtures offering unlimited design possibilities. Without the need to change lenses, the VL4000 BeamWash combines stunning wash capabilities with intense beam functionality and the ability to produce a powerful collimated shaft of light. Producing 43,000 lumens in standard mode (35,000 studio mode), the VL4000 BeamWash uses a 1200W lamp to provide incredible point-of-source imagery through its 254mm (10”) front lens. When used in wash mode, the luminaire provides a 10 to 60 degree zoom range. By simply adjusting a DMX value, the VL4000 BeamWash can shift to an intense beam luminaire with an amazing 4 to 40 degree beam angle, or a Shaft fixture for a powerful, collimated ray of light where the 4 degree beam angle can be further reduced to near zero.

Features:

• 1200W Philips MSR Gold FastFit lamp
• Swap from wash to beam with no lens change
• Image projection is sharper than standard beam fixtures
• Studio mode for quitter application uses
• Multiple hanging rail points
• Dual opposing color wheels
• Infinity CMY cross fading system
• 2 fixed color wheels; five positions each
• Variable CTO color temperature correction
• Two gobo wheels; seven rotatable, indexable positions plus open
• 43,000 lumens (standard mode), 35,000 lumens (studio mode)
• One animation wheel; rotating indexable pattern with variable motion control
• Wash mode zoom range from 10-60° (6:1 optics system)
• Beam mode zoom range from 4-40° (10:1 optics system)
• Shaft mode zoom range from 4° to near 0°
• 5 facet step prism
• Beam and shaft mode indexing and rotating lenticular effect
• Wash mode indexing and rotating beam shaping
• Two year limited warranty

Specifications:

• SOURCE
  • Type: MSR
  • Lamp cap: PGJX50
  • Wattage: 1200W
• OPTICAL PERFORMANCE
  • Lumen output (max.):
    • Standard mode: 43,000
    • Studio mode: 35,000
  • Color temperature: 6000K
  • CRI / Ra: >75
  • Dimming system: Mechanical glass blades / independent dual strobe blades
• BEAM
  • Beam angle:
    • Wash mode: 10-60°
    • Beam mode: 4-40°
    • Shaft mode: 4°
• COLOR
  • Color system: CMY, variable CTO 2 color wheel 5 + open
• IMAGING
  • Gobo 1: Gobo wheel 6 + open rotating
  • Gobo 2: Gobo wheel 6 + open rotating
  • Animation wheel: 1 x Index / rotating animation wheel
  • Prism: 5 facet linear
  • Frost: N/A
  • Framing shutters / beam shaping: Lenticular lens
  • Iris: Yes
• MOVEMENT
  • Pan / tilt: 540° / 270°
• COOLING
  • Fan: Yes
  • Studio mode: Yes
• DATA PROTOCOLS
  • Controls: DMX512-A / RDM
  • DMX channels: 46 / 41
• POWER
  • Range: 200-264VAC, 50/60Hz
• ENVIRONMENT
  • Operating temperature:
    • Standard mode: -29-40°C -20-104°F
    • Studio mode: -29-50°C -20-122°F
• PHYSICALS
  • IP rating: IP20
  • Finish: Black
  • Construction: Metal frame, engineering plastic covers
• DIMENSIONS
  • H x W x L: 890 x 735 x 567mm 35 x 29 x 22.3in
  • Hanging centers: 762mm 30in
• WEIGHT
  • Weight: 45.8kg 101lb
• WARRANTY & APPROBATION
  • Warranty: 2 years
  • Approvals / listings: CE, ETL, UL, FCC CSA, RoHS, ISO 9001
