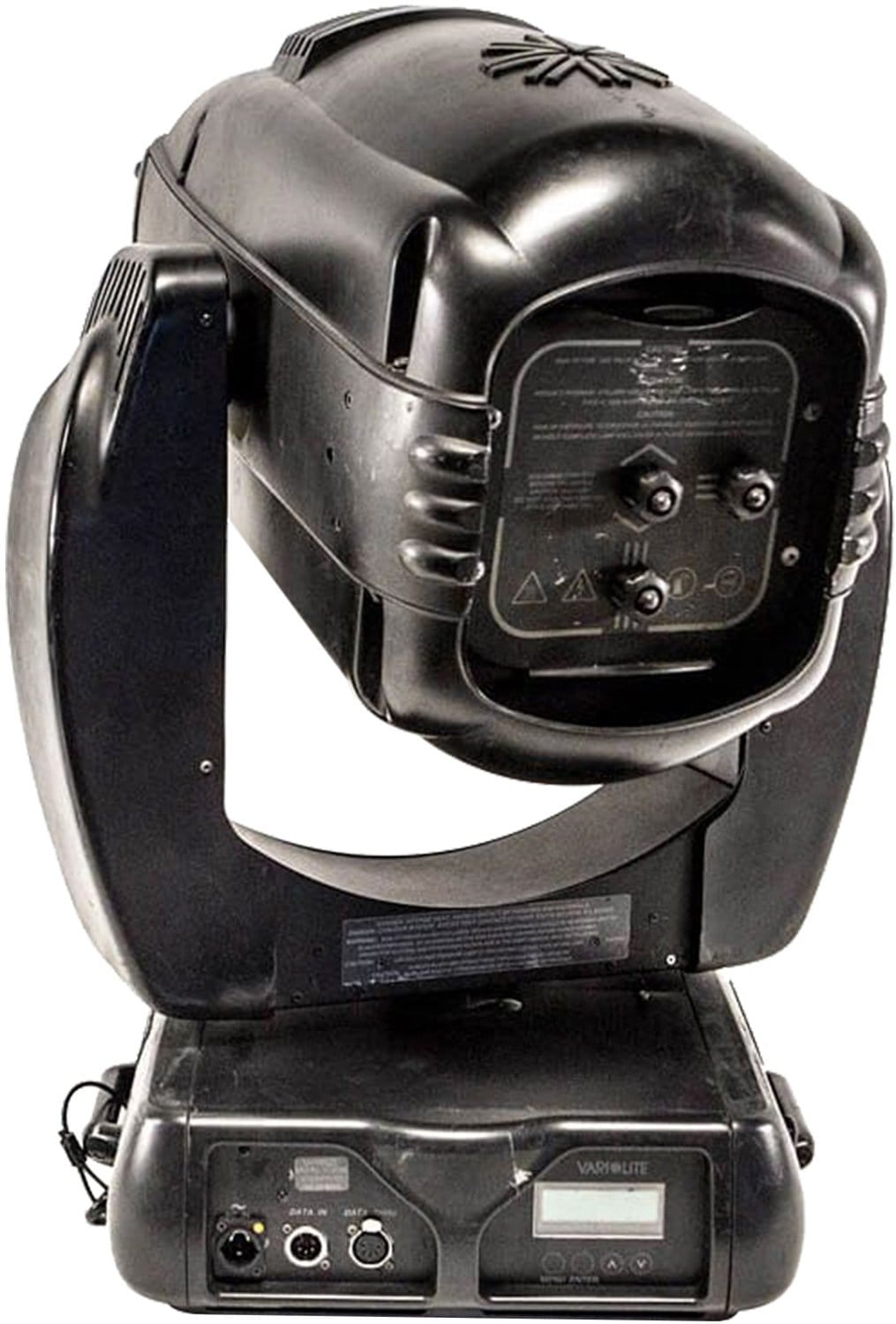

Vari-Lite VL3000 Wash Moving Head Light
The VARI-LITE®VL3000™Wash luminaire sets a new standard with an unprecedented 35,000 lumens output and superior color and beam control in a wash luminaire. The VL3000™Wash luminaire features 10:1zoomable beam spreader optics, CYM color mixing, variable CTO color temperature correction, a six-position color wheel and separate dimmer and ultra-fast strobe mechanisms. A standard palette of colors is provided with the unit. Custom colors are available. An upper enclosure houses the control electronics as well as an arc power supply for the 1200 watt short arc lamp.
Specifications:
- Programmable Functions
- Color System: A three-filter CYM cross-fading mechanism. A fixed color wheel with six interchangeable color filters and continuous wheel rotation for additional effects. It includes a variable CTO color temperature correction filter.
- Beam Size Control: A zoomable 6:1 beam spreader mechanism provides continuous beam size control for rapid changes and smooth timed beam angle changes from 10° to 60°.
- Intensity Control: Full field dimming designed for both smooth timed fades as well as quick dimming effects.
- Strobe: High-performance dual blade strobe system capable of ultra-fast operation.
- Pan and Tilt: Smooth, time-controlled continuous motion by way of three-phase stepper motor systems.
- Range: Pan - 540°, Tilt - 270°.
- Accuracy: 0.3° resolution.
- Description
- Source: 1200W Short Arc Lamp
- Color Temperature: 6000K
- CRI: 85
- Fixture Output: 20,000 lumens.
- Power Requirements: Standard AC power distribution from 200– 264 VAC, 50/60 HZ. The unit requires 7 to 12 A depending on the AC supply voltage.
- Reflector: Precision glass reflector system with dichroic cold mirror coating.
- Operational Temperature: -20° to 122°F (-29° to 50°C).
- Cooling: Forced air cooling.
- Control: Completely compatible with a wide variety of DMX512 consoles.
- DMX Channels: 16
- Mounting Position: The VL3000 Wash luminaire can be mounted and operated in any orientation.
- Spacing: Hangs on 26 in. (66 cm) centers.
- Weight: 79 lbs (36 kg).
- Color System: A three-filter CYM cross-fading mechanism. A fixed color wheel with six interchangeable color filters and continuous wheel rotation for additional effects. It includes a variable CTO color temperature correction filter.
- Beam Size Control: A zoomable 6:1 beam spreader mechanism provides continuous beam size control for rapid changes and smooth timed beam angle changes from 10° to 60°.
- Intensity Control: Full field dimming designed for both smooth timed fades as well as quick dimming effects.
- Strobe: High-performance dual blade strobe system capable of ultra-fast operation.
- Pan and Tilt: Smooth, time-controlled continuous motion by way of three-phase stepper motor systems.
- Range: Pan - 540°, Tilt - 270°.
- Accuracy: 0.3° resolution.
- Source: 1200W Short Arc Lamp
- Color Temperature: 6000K
- CRI: 85
- Fixture Output: 20,000 lumens.
- Power Requirements: Standard AC power distribution from 200– 264 VAC, 50/60 HZ. The unit requires 7 to 12 A depending on the AC supply voltage.
- Reflector: Precision glass reflector system with dichroic cold mirror coating.
- Operational Temperature: -20° to 122°F (-29° to 50°C).
- Cooling: Forced air cooling.
- Control: Completely compatible with a wide variety of DMX512 consoles.
- DMX Channels: 16
- Mounting Position: The VL3000 Wash luminaire can be mounted and operated in any orientation.
- Spacing: Hangs on 26 in. (66 cm) centers.
- Weight: 79 lbs (36 kg).
