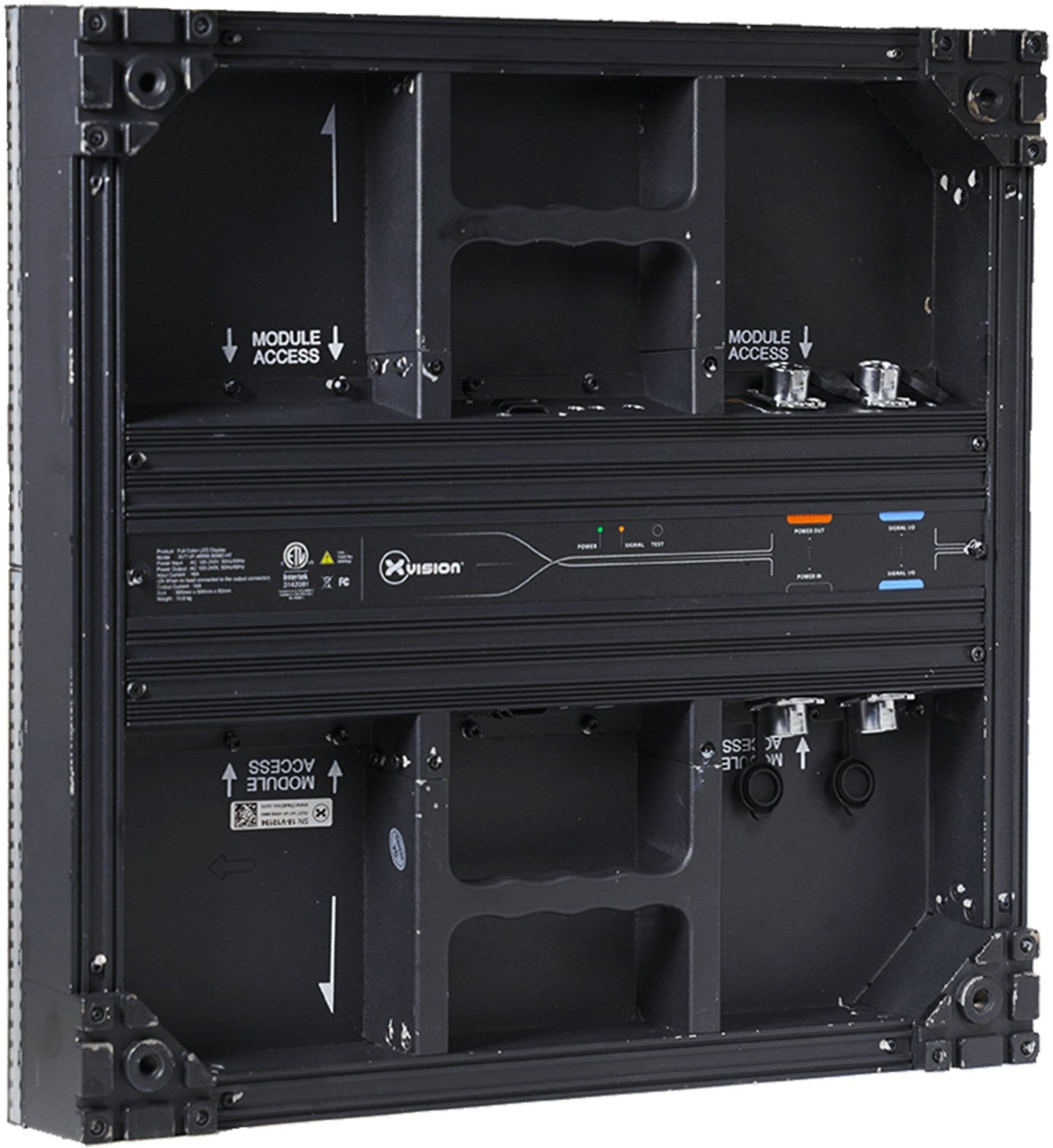

Theatrixx VLEDFLOOR9 8.9 millimeter Outdoor LED Floor Tile
Requires external processor (Sold Separately)
The xVision Video Deck LED system enables designers to use the stage itself as part of the video display system. Its high strength rubberized façade allows high weight items such as cars or set pieces to be placed on top of the unit, while delivering exceptional contrast with deep black, a feature to often overlooked on many similar products.
Specifications:
- Optics
- LED Type: NationStar
- Pixel Configuration: SMD 3 in 1
- Pixel Pitch: 8.93 mm
- Panel Resolution: 56 x 56 pixels
- Brightness: 3 000 nits (cd/m2)
- Viewing Angle: 120° H x 120° V
- Min. Viewing Distance: 18 ft (5.5 m)
- Max. Viewing Distance: 250 – 400 ft (80 -120 m)
- Electronics
- Refresh Rate: 1200 Hz (HRR)
- Grayscale Depth: 14 bits
- Driving Mode: 1/4 scan
- Voltage input: 120-240 VAC 50 – 60 Hz auto.
- Power Consumption: 200W
- Mechanical
- Static load bearing: 1 500 lbs (681 kg) per panel
- Safety Factor: 3:1
- Dimensions: 19.6 ̋ x 19.6 ̋ x 3.5 ̋ (500x500x80 mm)
- Weight: 26.5 lbs (12 kg)
- Cooling: Passive (Chassis as heatsink)
- Frame construction: Die-cast aluminum
- Protection Rating: IP65 (Waterproof)
- Control
- Input: DVI-D
- Input resolution: Up to 1 920 x 1 080
- Output resolution: 500 k pixels per output
- USB: via Pc-Based Software
- Connection System
- Type: Quick-lock, IP65 multipin
- Mating Lifetime: 500 cycles
- Power: 3-pin 12/3, 20A rated
- Data: 9-pin CAT6
