Telex TR82NB4 RF Communication Belt Pack 2-Channel Rx 518-536 Megahertz

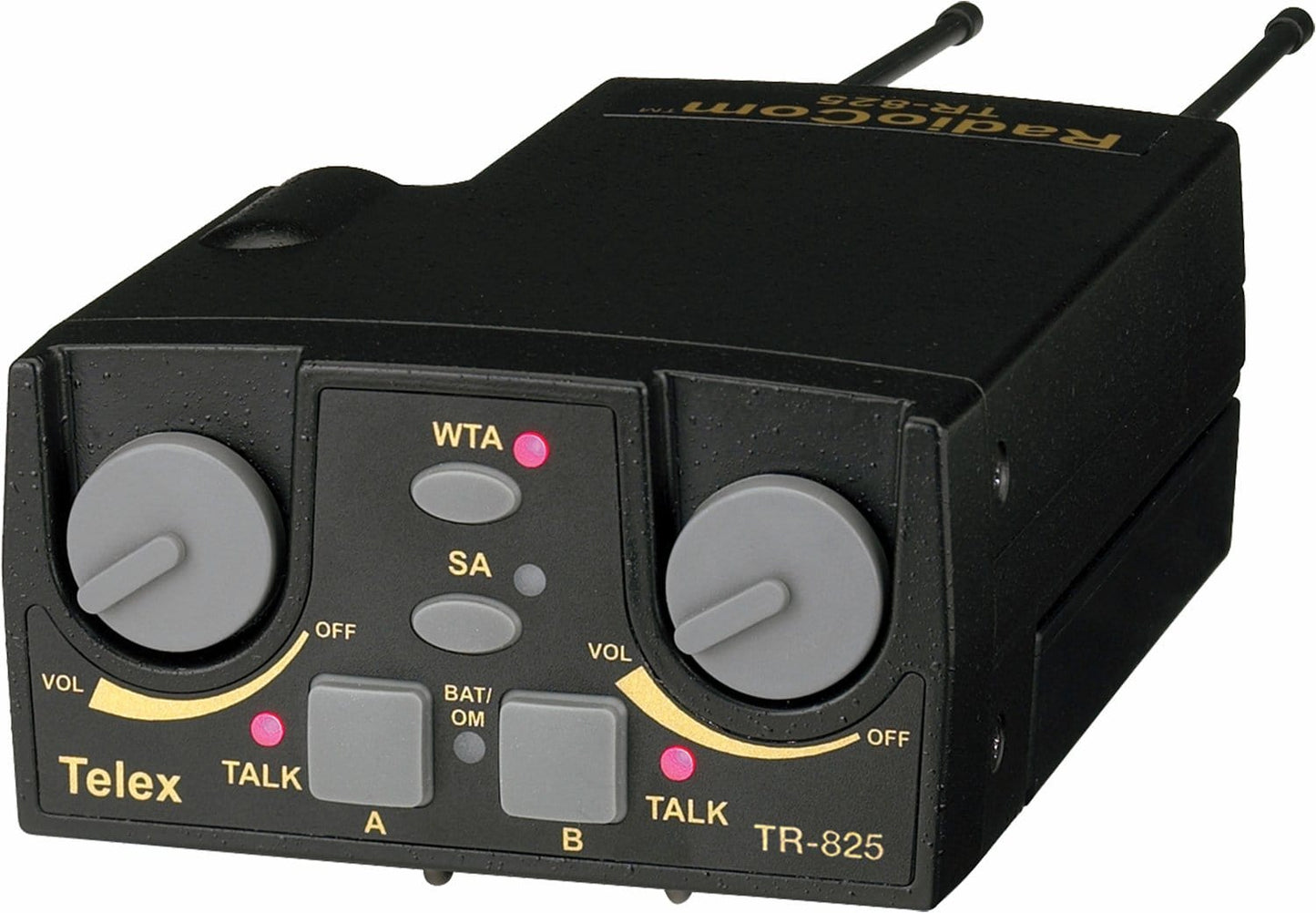

The Telex RadioCom TR-825 is a Two-channel UHF frequency-agile wireless beltpack for use with the BTR-800. The TR-825 is a dual listen beltpack, allowing you to listen to "Tech" in one ear and "Production" in the other. Individual volume controls also allow for easy level adjustment. The TR-800 has an all metal cast magnesium case, an LCD based graphical user interface, stage announce activation, wireless talk around (ISO) activation, enhanced ClearScan, detachable antennas and an auto-sensing headset connector that automatically switches between electret and dynamic headset mics.
Features:
- Low Battery/Overmodulation (BAT/OM) Light
- On/Off & Volume Control
- Stage Announce (SA)
- Talk Button
- Talk Light
- Wireless Talk Around (WTA)
Product Specs
-
RF Frequency Range - 470 - 608 MHz, 614 - 740 MHz in 18 MHz TX and RX bands
-
Power Requirements - 6 “AA” Cells Alkaline (NiMH optional)
-
TR-825 Current Draw - 190 mA (Push-to-Talk, A and B Talk On)
-
Temperature Range - -4° F to 130° F (-20° C to 55° C)
-
TX Antenna - ¼ Wave (supplied), Screw type, Replaceable
-
RX Antenna - ¼ Wave (supplied), Screw type, Replaceable
-
TR-825 FCC ID - B5DM517
-
Frequency Response - 300 Hz-8 kHz
-
Microphone Input Sensitivity - 7 mV
-
Local Headset Output - 40 mW output into 600W (1% distortion)
-
Transmitter Type - Synthesized, 712 channels
-
Transmit Power - 50 mW Max. (Auto-power reduction)
-
Modulation Type - FM
-
Deviation - 40 kHz (35 kHz Europe)
-
RF Frequency Stability - 0.00005
-
Modulation Limiter - Peak-Responding Compressor
-
Radiated Harmonics & Spurious - Exceeds FCC specifications
- Receiver -
-
Type - Dual Conversion Super heterodyne, Synthesized, FM, 712 channels
-
RF Sensitivity - <0.7 μV for 12 dB SINAD
-
Squelch Threshold - 20 dB SINAD (About 1.0 μ V)
-
IF Selectivity - 3 dB at 230 kHz
-
Image Rejection - 70 dB or better
-
Squelch Quieting - 90 dB
-
RF Frequency Stability - 0.00005
-
Distortion - <1% at full deviation
-
Product Dimensions/Weight - 3.75”W x 5.35”H x 2.02”D (9.5cm x 13.5cm x 5.1cm) 21 oz (595 g) with alkaline batteries
