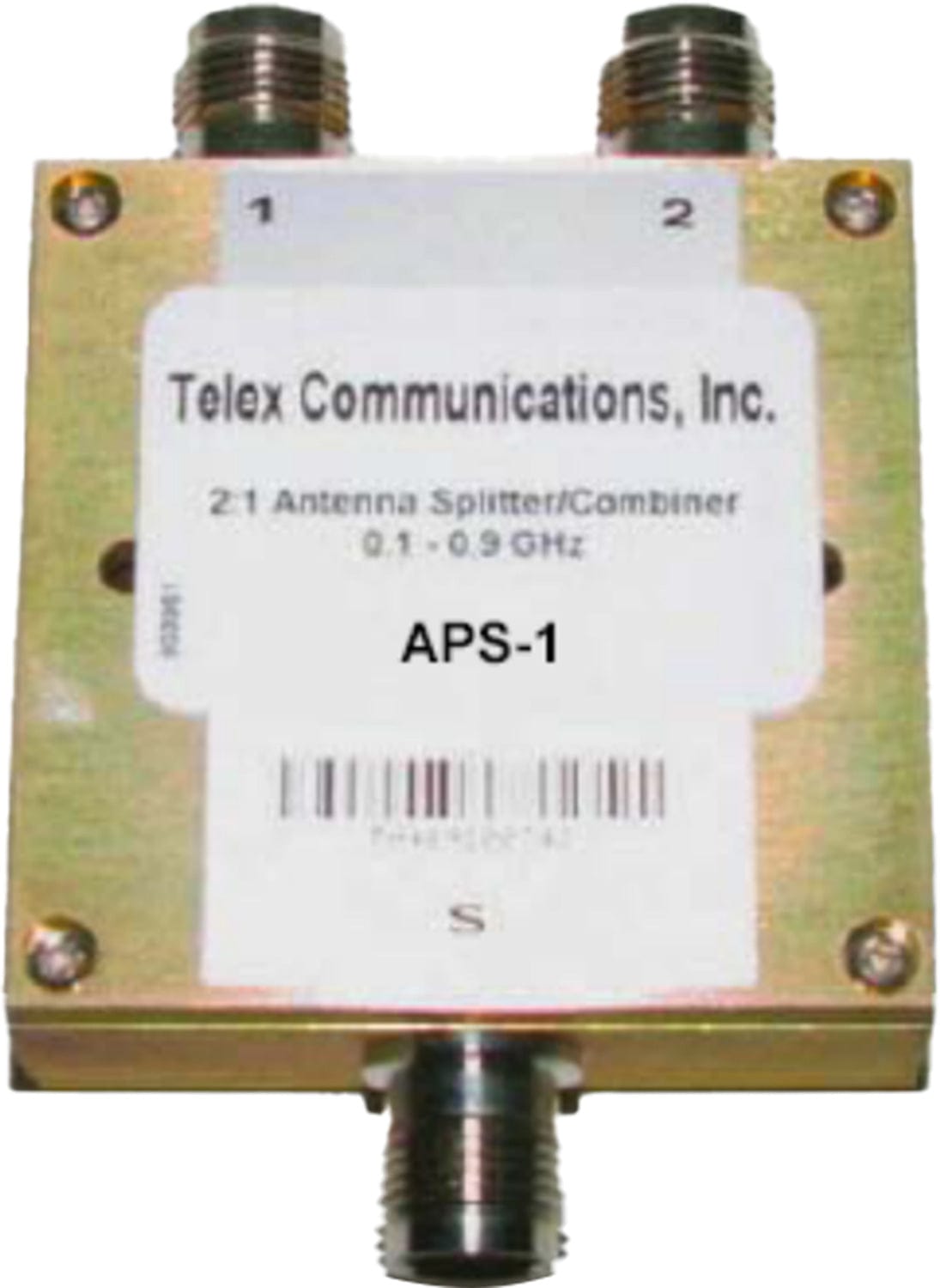

Telex APS-1 Passive Antenna Distribution System Splitter/Combiner

Telex APS-1 Passive Antenna Distribution System Splitter/Combiner

The Telex APS-1 Amplified Broadband Combiner/Splitter enables the operation of 2 UHF wireless intercom base transceivers using only two antennas. In addition to accommodating 2 transmit and 2 receiver antennas, it provides power connections for up to 2 base transceivers. The APS-1 features excellent output isolation, along with the broadband input filtering and amplification so necessary in multi-frequency systems to prevent inter modulation. The unit is an ideal complement to the Telex BTR1, RKP-4B, BTR-700, or BTR-800 series of UHF wireless intercoms, and supports directional and bi-directional log periodic antennas, along with standard 1/2 wave antenna types.

Features:

• UHF antenna splitter and combiner for Telex BTR-1/BTR-500/BTR-600/BTR-700 wireless intercom systems
• High DC output power with low inter modulation distortion, high isolation between ports
• Accepts 1/2 wave, directional and bi-directional log periodic antennas
• Standard IEC 320 power input connector
• Power for up to 2 transceivers
• TNC connectors for consistent impedance across frequency range

Specifications:

• # Of Channels: 2
• RF Frequency Range:
  • Splitter: 614 - 746 MHz
  • Combiner: 470 - 608 MHz
• Attenuation / Gain: Not Specified by Manufacturer
• Operating Voltage: 12VDC, 5A (DC Out)
• Weight: Not Specified by Manufacturer
• Dimensions: Not Specified by Manufacturer
• Packaging Info:
  • Package Weight: 0.35 lb
  • Box Dimensions (LxWxH): 6.5 x 4.5 x 2.5"
