Description

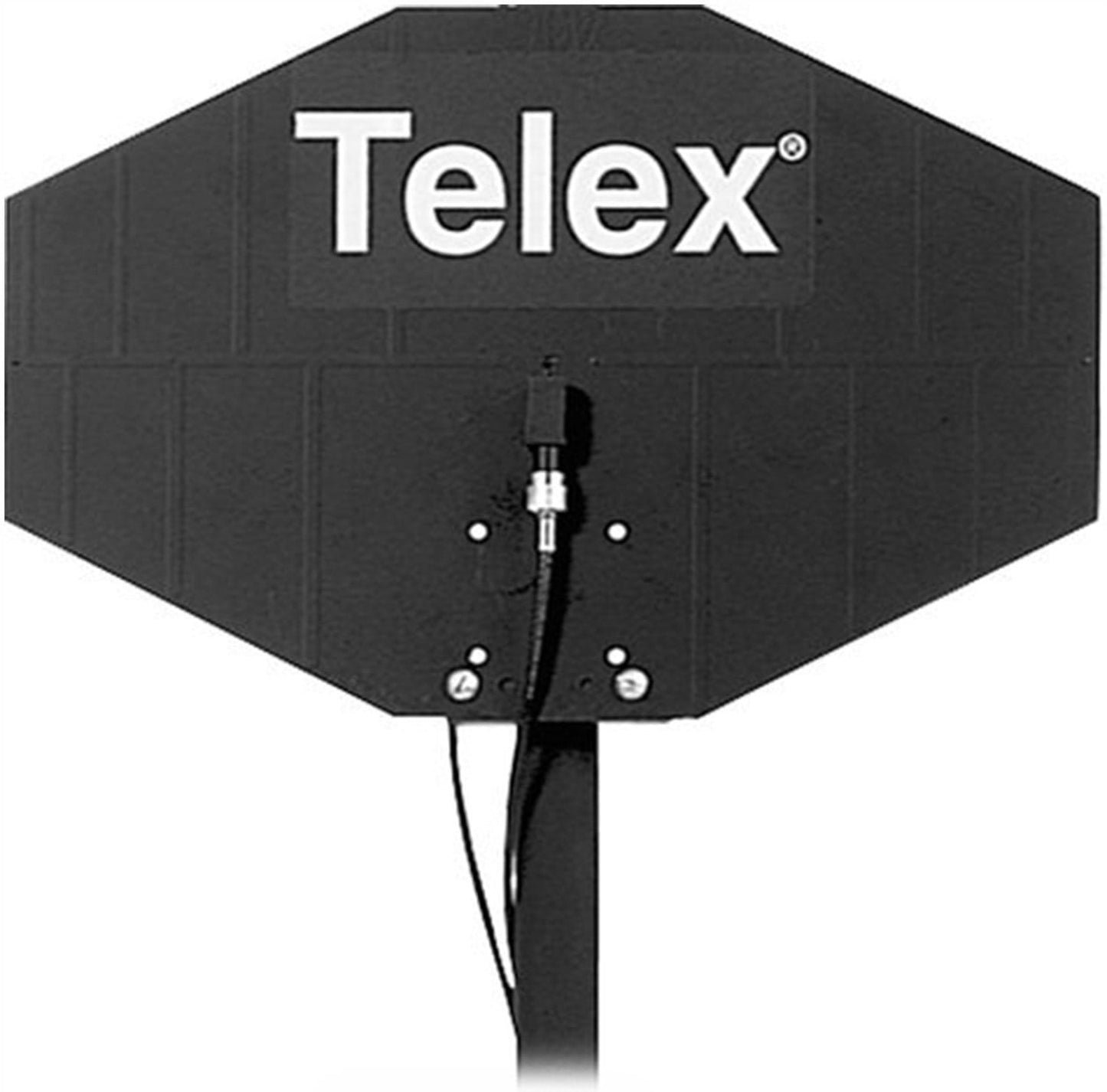

Telex ALP700 RF Antenna for Base Station UHF 450-760 Megahertz
The ALP700 is a broadband bi-directional log periodic antenna. It will receive any frequency from 470 to 760MHz. The "Gain" of this antenna enables it to receive signals from a greater distance than a typical "whip" type antenna. Log Periodic Antennas are also directional and will have the best reception when aligned with the area to be covered. This yields the benefit of greater range toward the end zone along the sideline.
Specifications:
- Maximum Gain: 1.8dBd (4dBi)
- Frequency Range: 450-760MHz
- SWR: 2.5:1
- Input Impedance: 50 ohm
- Input Connector: TNC
- Size: 10.81" x 16.61"
- Weight: 0.65lbs
