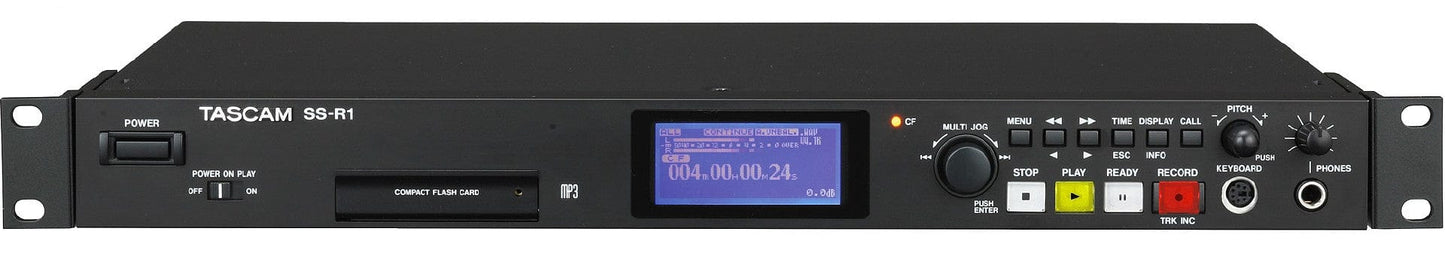

Tascam SSR1 Rackmount SD Player/Recorder

Tascam SSR1 Rackmount SD Player/Recorder

The SS-R1 from Tascam is a professional-quality 1RU Compact Flash recorder. Designed to be used in applications that previously used cassette or MiniDisc recorders, the SS-R1 records high-quality WAVE or MP3 files to widely-available Compact Flash media.

The SS-R1 offers terrific connectivity options, with XLR and RCA line-level inputs and outputs, and S/PDIF digital coaxial inputs and outputs. Multiple control options are available, with a wired remote, and RS-232 and parallel ports for remote control. A PS/2 keyboard connector lets you easily name files and folders, and control the unit.

• Compact 1RU chassis
• Records WAVE or MP3 files to Compact Flash media
• Stereo line-level XLR and RCA inputs and outputs
• S/PDIF digital coaxial inputs and outputs
• RS-232, parallel, and 3.5mm remote control connectors
• PS/2 keyboard connector for naming files and folders
• Backlit LCD info screen
• Front-panel record and playback controls
• Front-panel headphone jack with independent volume control
• Power on play function

Tascam SS-R1 Specs

• Type
• Rack Mount Stereo CF Recorder
• Recording/Reading Methods
• WAVE or MP3 to CF Cards
• Recording Bit Rate
• 16-bit
• Sampling Frequency
• 44.1, 48kHz
• Number of Channels
• 2
• Frequency Response
• 20Hz - 20kHz (±0.5dB)
• Signal-to-Noise Ratio
• 95dB
• Dynamic Range
• 95dB
• Total Harmonic Distortion (THD)
• 0.005% or Less
• Connectors
• 1 x AC Power Input
• 1 x Stereo XLR Input (2 Jacks)
• 1 x Stereo XLR Output (2 Jacks)
• 1 x Stereo RCA Input (2 Jacks)
• 1 x Stereo RCA Output (2 Jacks)
• 1 x S/PDIF Digital Coaxial Input
• 1 x S/PDIF Digital Coaxial Output
• 1 x RS-232C Connector
• 1 x Parallel Connector
• 1 x 3.5mm Remote Input
• 1 x PS/2 Keyboard Connector
• 1 x 1/4" Stereo Headphone Jack
• Dimensions
• 19 x 11.9 x 1.8" (483 x 301 x 44mm)
• Weight
• 7.3 lbs (3.3kg)
