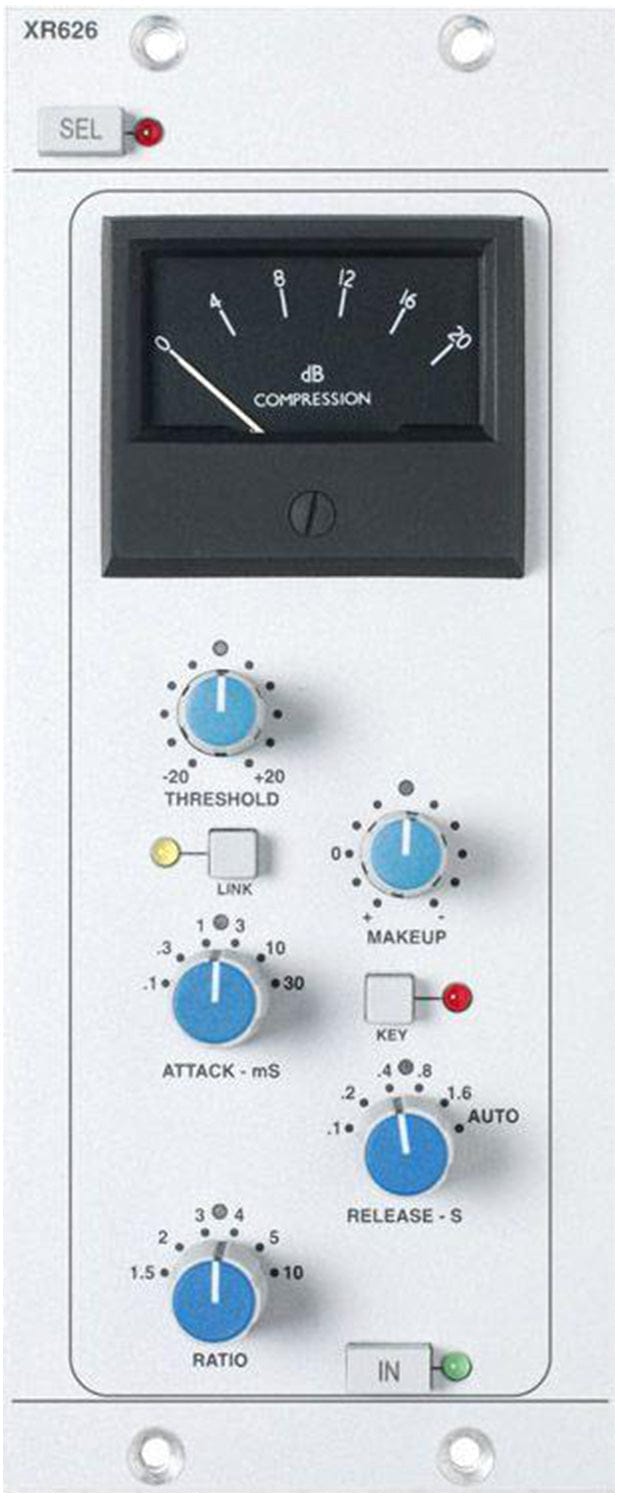

SSL X-Rack Stereo Buss Compressor Module (2 Slot)
The X-Rack Stereo Bus Compressor Module from Solid State Logic is a stereo compressor module that delivers the classic tonal characteristic of the G-Series console compressor but with the added benefit of a high bandwidth, ultra low noise SuperAnalogue circuit design. The module is extremely simple to operate and includes the usual threshold, attack, ratio, release, and make up controls. It includes true stereo side-chain input and is accompanied by a "link" feature that enables multiple stereo bus compressor modules to be combined for surround processing.
Features:
- Dual channel, modular dynamics processor based around SSL’s G-Series console bus compressor
- True Stereo side-chain input for external signal keying
- Link control enables several modules to be combined for surround compression
- Gain reduction meter as fitted to the classic SSL console range
- Electronically balanced XLR connections
Specifications:
- Function: Bus Compressor
- Number of Channels: 2
- Compression Threshold: -20dB to +20dB, variable
- Compression Ratio: 1:1.5, 2, 3, 4, 5, 10, stepped
- Attack Time: 0.1, 0.3, 1, 3,10, 30 mSec, stepped
- Release Time: 0.1, 0.2, 0.4, 0.8, 1.6 Sec and Auto, stepped
- Maximum Output Level: >+26dBu
- Make-up Gain: Yes, variable
- Frequency Response: 20Hz to 20kHz, +/-0.3dB (-3dB at 90kHz)
- Noise: <-90dBu
- I/O :
- 2 x XLR Connectors (input/output)
- 2 x XLR Key Inputs
- Dimensions: (WxDxH) 2.80" x 7.90" x 6.75" (70mm x 200mm x 171mm)
- Weight: 1.20 lbs. (.76 kg)
