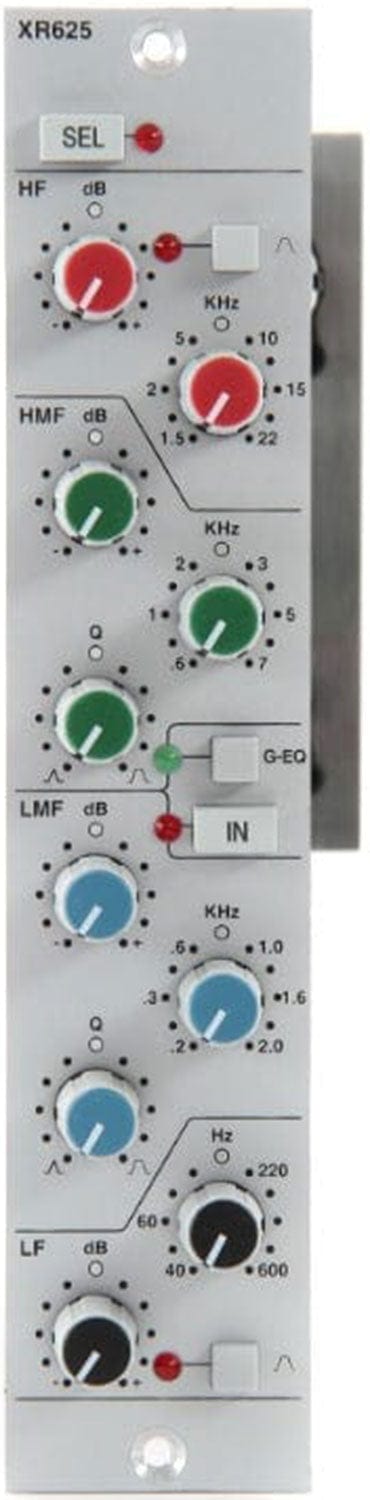

SSL X-Rack EQ Equalizer Module
The X-Rack Channel EQ Module, XR625 from Solid State Logic is a 4-band EQ module that requires the use of an X-Rack or Mynx enclosure. Designed for users of Digital Audio Workstations and other audio/post applications, the EQ can be combined with any number of other modules to achieve a scalable system that features the legendary SSL sonic signature.
Features:
- Capacitor-less SuperAnalogue Design
- 4-band Parametric EQ with Variable "Q"
- Shelf/Bell Controls on the High and Low Bands
- Twin-Curve E and G Series EQ
- Modular Rackmount Design
- Total Recall
- Classic SSL Analog Sound
- Mix-and-Match Any XRack Modules
- Build Your Ultimate SSL Setup
Specifications:
- Filter Type: Parametric and shelving
- Number of Channels: Single
- Inputs: 1 x XLR
- Outputs: 1 x XLR
- Maximum Input Level: Not specified by manufacturer
- Frequency Bands:
- HF Shelving: 1.5kHz to 22kHz, variable
- LF Shelving: 40Hz to 600Hz, variable
- HMF Parametric: 600Hz to 7kHz, variable
- LMF Parametric: 200Hz to 2.5kHz, variable
- Bandwidth:
- HF Shelving: Q = 2.5
- LF Shelving: Q = 2.5
- HMF Parametric: Q = variable from 0.5 to 2.5 (may also vary with gain)
- LMF Parametric: Q = variable from 0.5 to 2.5 (may also vary with gain)
- Range (Boost/Cut):
- HF, HMF and LMF: +/-20dB
- LF: +/-16.5dB
- Maximum Output Level: +26dBu
- Frequency Response: 20Hz to 20kHz, +/-0.5dB (-3dB at 200kHz)
- Dynamic Range: Not specified by manufacturer
- Noise: <-83dBu (+4dBu operating level)
- Dimensions: 1.4 x 7.9 x 6.8" (35 x 200 x 171mm)
- Weight: 9.5 oz (260g)
- Specialties: The LF and HF bands have variable turnover frequency with switchable bell/shelving and selectable response curves
- Filter Type: Parametric and shelving
- Number of Channels: Single
- Inputs: 1 x XLR
- Outputs: 1 x XLR
- Maximum Input Level: Not specified by manufacturer
- Frequency Bands:
- HF Shelving: 1.5kHz to 22kHz, variable
- LF Shelving: 40Hz to 600Hz, variable
- HMF Parametric: 600Hz to 7kHz, variable
- LMF Parametric: 200Hz to 2.5kHz, variable
- Bandwidth:
- HF Shelving: Q = 2.5
- LF Shelving: Q = 2.5
- HMF Parametric: Q = variable from 0.5 to 2.5 (may also vary with gain)
- LMF Parametric: Q = variable from 0.5 to 2.5 (may also vary with gain)
- Range (Boost/Cut):
- HF, HMF and LMF: +/-20dB
- LF: +/-16.5dB
- Maximum Output Level: +26dBu
- Frequency Response: 20Hz to 20kHz, +/-0.5dB (-3dB at 200kHz)
- Dynamic Range: Not specified by manufacturer
- Noise: <-83dBu (+4dBu operating level)
- Dimensions: 1.4 x 7.9 x 6.8" (35 x 200 x 171mm)
- Weight: 9.5 oz (260g)
- Specialties: The LF and HF bands have variable turnover frequency with switchable bell/shelving and selectable response curves
