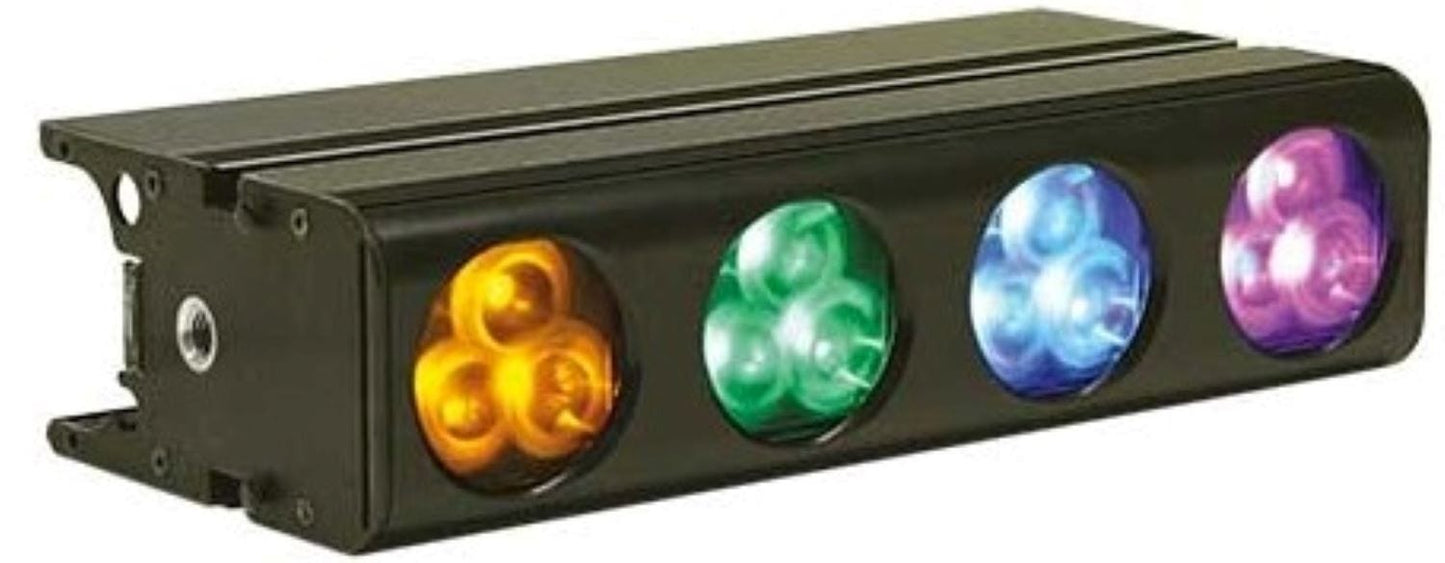

Chroma-Q Color Block RGB LED Fixture
Color Block fixture requires an external power supply to operate, Talk to a sales representative for more information.
The Chroma-Q® Color Block™ has a modular design and a comprehensive range of fixing options that allows users to easily create a complete LED system using stock of just one generic fixture type - including battens, blinders and various mounting configurations using the built in fixing.
| Product Code | CHCB4: Chroma-Q Color Block DB4 |
|---|---|
| A (no fixings) | 250mm / 9.8" |
| B (no fixings) | 62mm / 2.4" |
| Depth (no fixings): | 117mm / 4.6" |
| Weight | 1.4kg / 3.1lbs |
| Power consumption | HSI = 0.45A @ 48V DC, RGB = 0.9A @ 48V DC |
| Connector | XLR4 |
| Colour | Black anodised |
| Cooling Fans | 2 x DC |
| Lamp life | Up to 25,000 hours |
| IP Rating | IP20 |
| Variable effect engine parameters | Colour spread, scroll, grouping, step, strobe, colour roll, speed, fade (up/down) and resolution |
