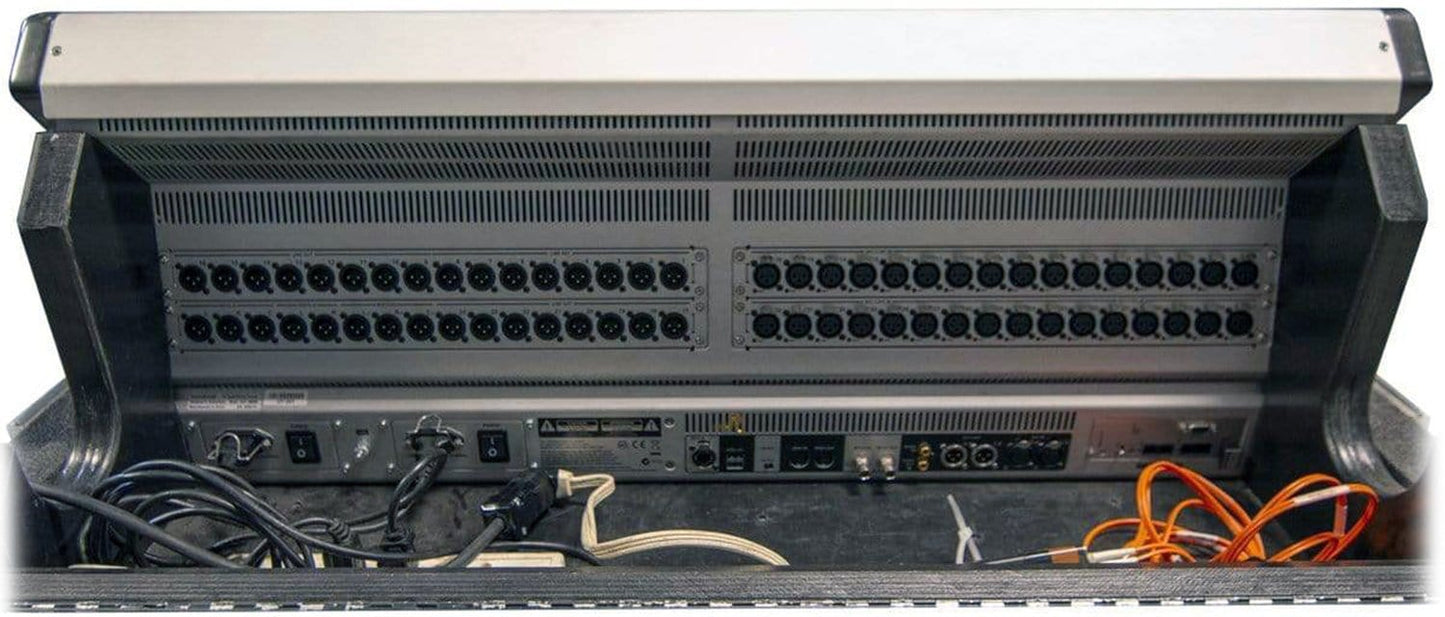

Soundcraft Vi1 Digital Mixing Console

Soundcraft Vi1 Digital Mixing Console

A complete standalone console package with 32 channels of analogue input to 27 analogue outputs, plus 6 digital inputs, 4 Stereo FX Returns and 6 digital outputs in one chassis. As standard, Input to mix capacity is 46chs, but by adding a stagebox (compatible with the existing Vi racks), simultaneous channel count increases to 64. Channels are routable to 24 multifunction busses, plus LR and Mono Mix busses. Up to 8 of the busses can be configured as Matrix mixes, each with up to 16 sources. The surface is just over a metre wide, and includes 16 motorised channel faders with fixed and user-definable layers, 8 output/VCA faders and 2 master faders.ing simultaneous access to 16 input channels.

Specifications:

• Frequency Response - Local Mic input to Line output: +0/-1dB, 20Hz-20kHz
• AES/EBU In to AES/EBU Out: +0/-0.2dB, 20Hz-20kHz
• THD+Noise: 22Hz-22kHz
• THD & Noise - Local Mic In (min gain) to Local Line Out: <0.003% @ 1kHz
• THD & Noise - Local Mic In (max gain) to Local Line Out: <0.020% @ 1kHz
• Mic Input E.I.N: <-125dBu (150Ω source), 22Hz-22kHz bandwidth, unweighted
• Residual Noise: -95dBu - Local line output; no inputs routed, Mix fader @0dB
• CMRR: 80dB @ 1kHz Local Mic Input
• Sampling Frequency: 48kHz
• Latency - Local Mic Input to Local Line output: < 2ms @48kHz
• AES/EBU Input Sample Rate: 32–108kHz (with SRC enabled)
• DSP Resolution: 40-bit floating point
• Internal Clock Accuracy: < +/- 50ppm
• Internal Clock Jitter: < +/- 5ns
• External Sync: BNC Wordclock
• Input & Output Levels - Mic Inputs: +23dBu max
• Input & Output Levels - Line Outputs: +22dBu max
• Input & Output Levels - Nominal Operating Level: 0dBu (-18dBFS)
• Input & Output Impedances - Mic Inputs: 2k7Ω
• Input & Output Impedances - All other analogue Input: >10kΩ
• Input & Output Impedances - Line Outputs: <75Ω
• Input & Output Impedances - AES/EBU Outputs: 110Ω
• Oscillator: 20Hz to 20kHz/Pink/White Noise, variable level
• Channel HP filter: 20Hz-600Hz, 18dB per octave
• Channel LP filter: 1kHz-20kHz, 18dB per octave
• EQ (Inputs and Bus Outputs) - HF: 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
• EQ (Inputs and Bus Outputs) - Hi-Mid: 20Hz-20kHz, +/-18dB, Q=0.3-8.7
• EQ (Inputs and Bus Outputs) - Lo-Mid: 20Hz-20kHz, +/-18dB, Q=0.3-8.7
• EQ (Inputs and Bus Outputs) - LF: 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
• Metering: Internal 11-segment LED bargraphs plus 4-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s.
• Mains Voltage Operating Range: 90-264V, 47-63Hz, autoranging
• Mains Power Consumption: Control Surface - 100W
• Internal Mass Storage: 4GB Compact Flash Card
• Operating Temperature: 0°C – 45°C (32°F – 113°F)
• Relative Humidity: 0% – 90%, non-condensing Ta=40°C (104°F)
• Storage Temperature: -20°C – 60°C (-4°F – 140°F)
• Height: 394mm (15.5")
• Width: 1034mm (40.7")
• Depth: 711mm (28.0")
• Weight: 37kg* (82lb)
