Sony RCP-751 CCU Rotative Button Control Panel

Sony RCP-751 CCU Rotative Button Control Panel

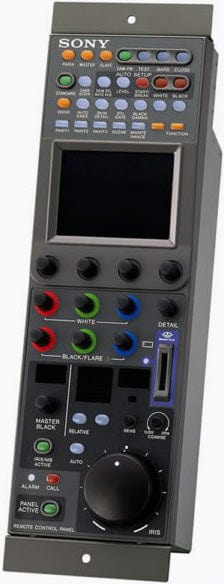

The Sony RCP-751 is a remote control panel specifically designed for the BVP and HDC series professional cameras and connects via the CCU/HDCU-series camera control unit. The remote can be used up to 656" (200 m) away, making it useful in a variety of applications. The RCP-751 is identical in function when compared to the RCP-750, except the iris and master black adjusters are rotary knobs instead of joystick-type.

Specifications:

• Input and Output Connectors:
  • Remote: 8-Pin Multi-Connector
  • AUX: 8-Pin Multi-Connector
  • External I/O: 9-Pin D-Sub Connector
• Maximum Cable Length: 656' (200 m)
• Operating Temperature: 5-40°C (41-104°F)
• Power Requirements: 10.5-35 VDC
• Power Consumption: 4W
• Dimensions (WxHxD): 4.1 x 14 x 3.5" (10.2 x 35.4 x 8.7 cm)
• Weight: 2.9 lb (1.3 kg)
