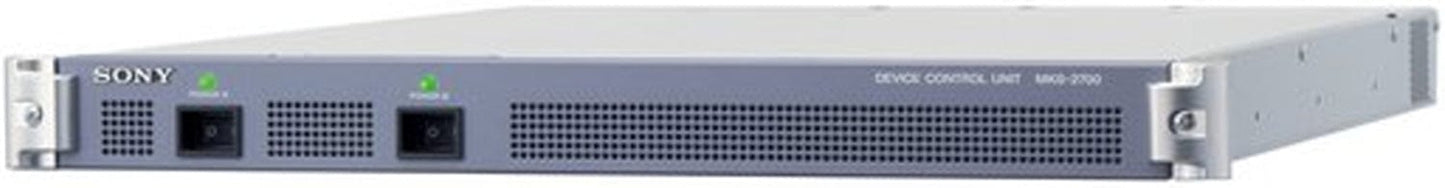

Sony MKS2700 Control Unit for MVS8000
The Sony MKS-2700 is a device controller for Sony production switchers. The module takes 1RU in any standard 19" racking system and can be fitted with optional boards indicated through its series of tally lights. Control through both RS-422A and RS-45. This specific model is compatible with the MVS8000A, DVS9000, and MFS2000 switchers.
Features:
- Takes 1RU in any 19" Rack
- Can be fitted with optional boards
- Easy to set-up and use
Specifications:
- Control Connectors:
- RJ-45: 100Base-TX Standard
- Tally: D-Sub 37-Pin (In/Out)
- RS-422A
- Compatible with these Models:
- MVS8000A
- DVS9000
- MFS2000
- Operating Temperature: 41-104°F (5-40°C)
- Power Requirements: 100-240 VAC, 50/60 Hz
- Power Consumption: 0.5-0.7A
- Dimensions (WxHxD): 17.4 x 1.8 x 20.5 (44.4 x 4.4 x 52 cm)
- Weight: 18.7 lb (8.5 kg)
