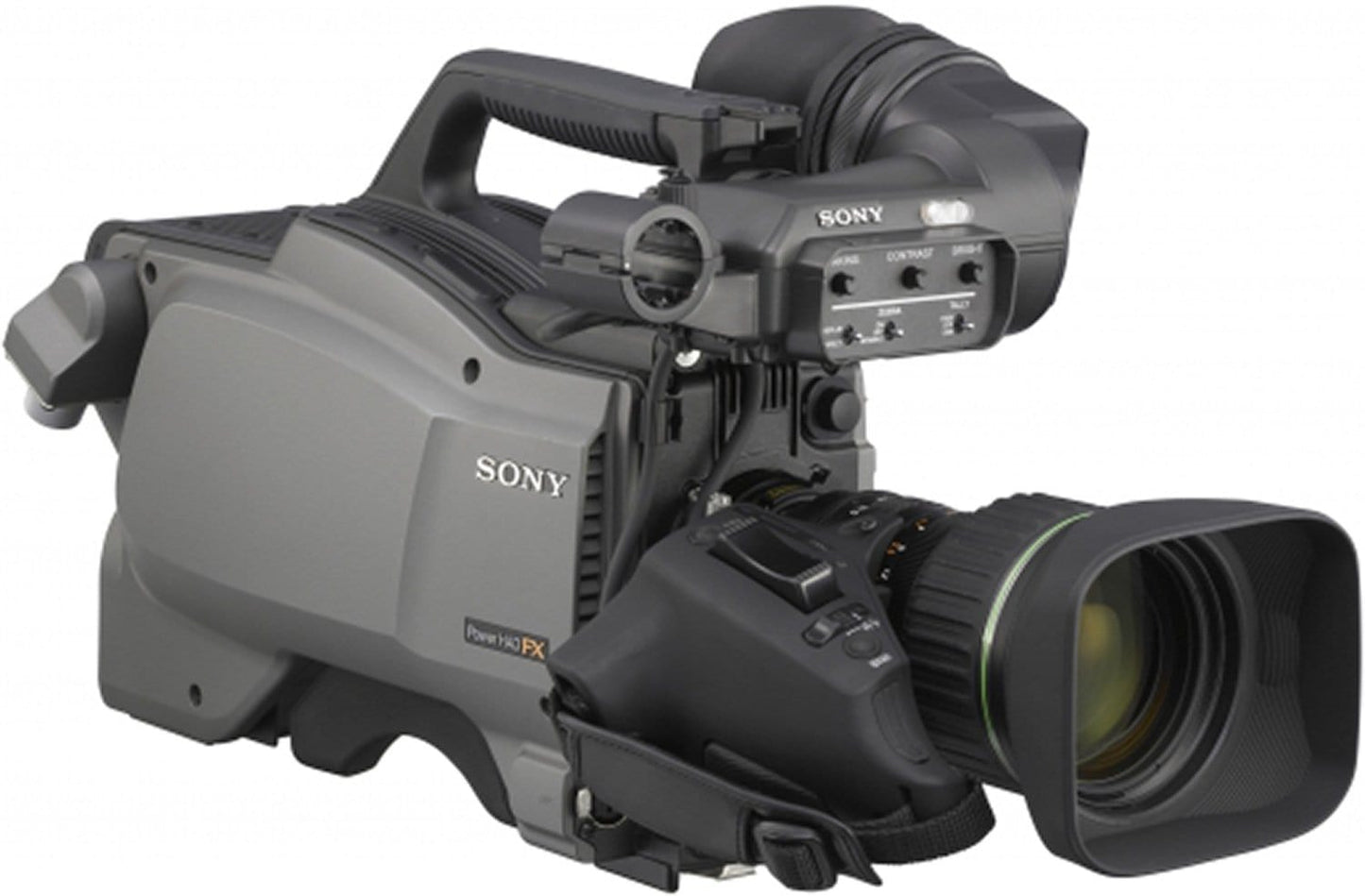

Sony HXC-100 Triax HD Camera
Only available as part of a complete system. Talk to a Sales Representative for more information.
Sony's HXC-100 HD/SD System Camera equipped with newly developed digital triax technology, which allows systems to be configured with conventional triax. The HXC-100 camera supports versatile applications for HD with a high-quality SD output. It uses the latest 14-bit A/D conversion circuit as well as the superb 2/3-inch Power HAD FX CCDs to bring out high picture quality.
Features:
- Power HAD FX CCD for high sensitivity
- Digital triax operation
- Simple System Configuration
- 14-bit A/D (Analog to Digital) conversion
- Newly developed Focus Assist Functions
- Robust Design
Specifications:
- General
- Power requirements: 180 V DC, 1.0 A (max.), 12 V DC, 7 A (max.)
- Operating temperature: -10°C to +45°C (14°F to +113°F)
- Storage temperature: -20°C to +60°C ( -4°F to +140°F)
- Mass: 4.4 kg (9 lb 11 oz)
- Camera
- Pickup device: 3-chip 2/3-inch type, Progressive Scan Power HAD FX CCD
- Effective picture elements (H x V): 1920 x 1080
- Signal format: 1080/50i, 59.94i, 720/50P, 59.94P, 480/59.94i, 576/50i
- Spectrum system: F1.4 prism system
- Lens mount:Sony bayonet mount
- Built-in filters:
- CC Electrical
- ND 1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
- Sensitivity (at 2000 lx, 3200 K, 89.9% reflectance): F10 (59.94 Hz)/F11 (50 Hz) at 2000 lx (3200 K, 89.9% reflectance)
- Signal-to-noise ratio (typical):
- HD : -55 dB (1080i)
- SD : -65 dB at 59.94 Hz, -63 dB at 50 Hz
- Horizontal resolution:
- HD : 1000 TV lines
- SD : 900 TV lines
- Shutter speed selection:
- 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 (s) (59.94i mode)
- 1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000 (s) (50i mode)
- Modulation depth:
- HD : 45% at 27.5 MHz (1080i)
- SD : 90% at 5 MHz
- Input/output connectors
- Audio input (CH1, CH2):
- XLR 3-pin, female (1 each)
- For MIC: -60 dBu (may be selected to -20 dBu by menu or HXCU-100 operations), balanced
- For LINE: 0 dBu, balanced
- Mic 1 input: XLR 3-pin, female (1)
- Return control input: 6-pin (1)
- Prompter output/Genlock input/Return input: BNC type (1), 1 Vp-p, 75 ohms
- DC input: XLR 4-pin (1), 10.5 to 17 V DC
- DC output: 4-pin (1), 10.5 to 17 V DC, 0.5 A (max.)
- Test output: BNC type (1)
- SDI output: BNC type (1)
- Earphone output: Stereo minijack (1)
- CCU: Triax connector (1)
- Tracker: 10-pin (1)
- Intercom: XLR 5-pin, female (1)
- Remote: 8-pin (1)
- Lens: 12-pin (1)
- Viewfinder: 20-pin (1)
- Supplied Accessories
- Operation manual
- Cable clamp belt
- Switch label
- Flange focal length adjustment sheet
- General
- Power requirements: 180 V DC, 1.0 A (max.), 12 V DC, 7 A (max.)
- Operating temperature: -10°C to +45°C (14°F to +113°F)
- Storage temperature: -20°C to +60°C ( -4°F to +140°F)
- Mass: 4.4 kg (9 lb 11 oz)
- Camera
- Pickup device: 3-chip 2/3-inch type, Progressive Scan Power HAD FX CCD
- Effective picture elements (H x V): 1920 x 1080
- Signal format: 1080/50i, 59.94i, 720/50P, 59.94P, 480/59.94i, 576/50i
- Spectrum system: F1.4 prism system
- Lens mount:Sony bayonet mount
- Built-in filters:
- CC Electrical
- ND 1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
- Sensitivity (at 2000 lx, 3200 K, 89.9% reflectance): F10 (59.94 Hz)/F11 (50 Hz) at 2000 lx (3200 K, 89.9% reflectance)
- Signal-to-noise ratio (typical):
- HD : -55 dB (1080i)
- SD : -65 dB at 59.94 Hz, -63 dB at 50 Hz
- Horizontal resolution:
- HD : 1000 TV lines
- SD : 900 TV lines
- Shutter speed selection:
- 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 (s) (59.94i mode)
- 1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000 (s) (50i mode)
- Modulation depth:
- HD : 45% at 27.5 MHz (1080i)
- SD : 90% at 5 MHz
- Input/output connectors
- Audio input (CH1, CH2):
- XLR 3-pin, female (1 each)
- For MIC: -60 dBu (may be selected to -20 dBu by menu or HXCU-100 operations), balanced
- For LINE: 0 dBu, balanced
- Mic 1 input: XLR 3-pin, female (1)
- Return control input: 6-pin (1)
- Prompter output/Genlock input/Return input: BNC type (1), 1 Vp-p, 75 ohms
- DC input: XLR 4-pin (1), 10.5 to 17 V DC
- DC output: 4-pin (1), 10.5 to 17 V DC, 0.5 A (max.)
- Test output: BNC type (1)
- SDI output: BNC type (1)
- Earphone output: Stereo minijack (1)
- CCU: Triax connector (1)
- Tracker: 10-pin (1)
- Intercom: XLR 5-pin, female (1)
- Remote: 8-pin (1)
- Lens: 12-pin (1)
- Viewfinder: 20-pin (1)
- Audio input (CH1, CH2):
- Supplied Accessories
- Operation manual
- Cable clamp belt
- Switch label
- Flange focal length adjustment sheet
