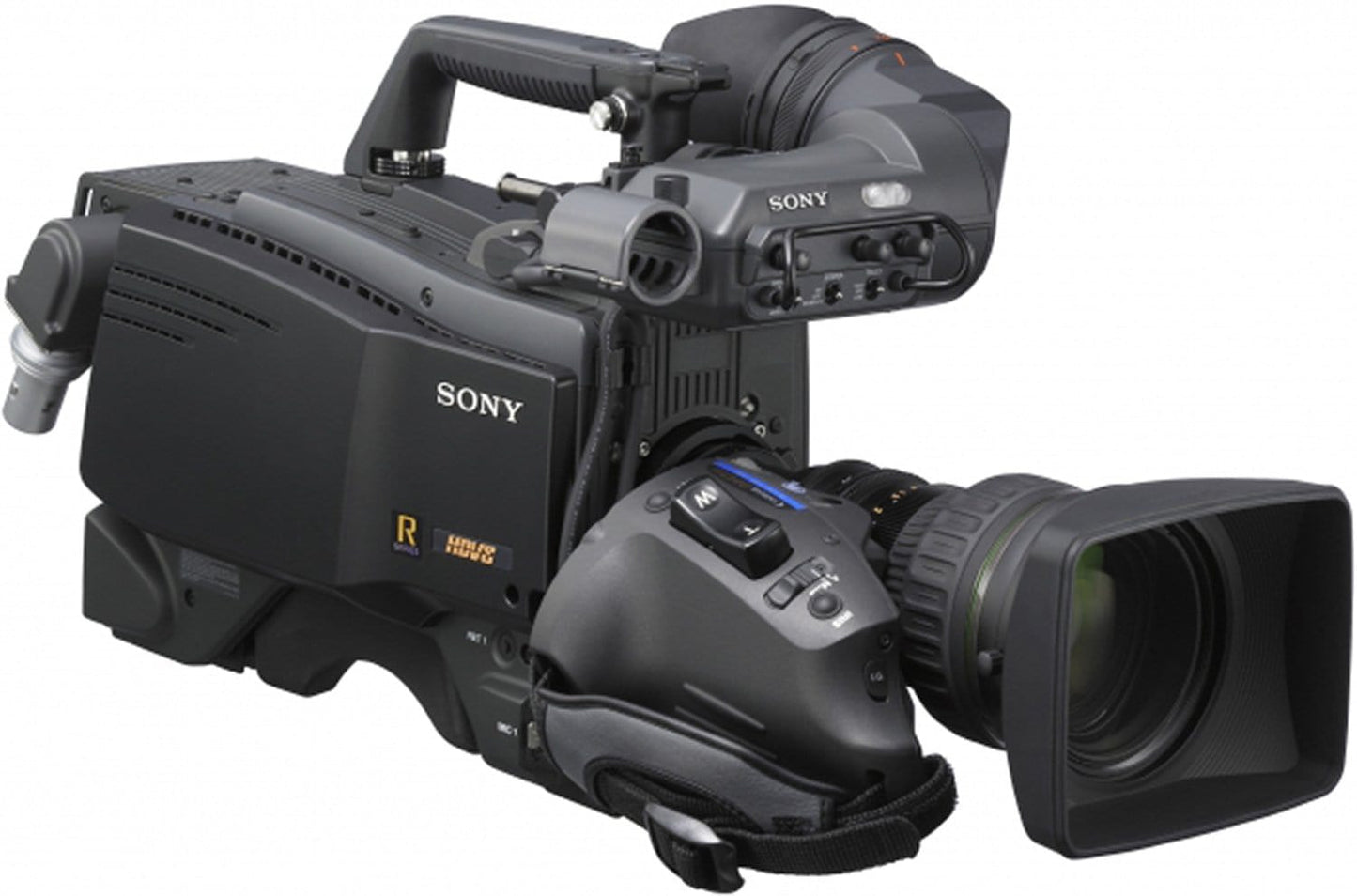

Sony HDC-1500 Fiber Optic HD Camera

Sony HDC-1500 Fiber Optic HD Camera

Pursuing the ultimate HD system for today and for tomorrow. Sony sets another milestone in the history of multi-format HD camera systems, offering a broader choice of interlace and progressive formats, much greater picture quality, and enhanced operational flexibility.

Features:

• Power HAD FX CCD for high sensitivity
• 14-bit A/D (Analog to Digital) conversion
• Improved S/N ratio
• Newly added Focus Assist Functions
• Compact and Lightweight

Specifications:

• General
  • Power requirements: 240 V AC, 1.4 A (max.), 180 V DC, 1.0 A (max.), 12 V DC, 7 A (max.)
  • Operating temperature: -20 to +45°C (-4 to +113°F)
  • Storage temperature: -20°C to +60°C (-4°F to +140°F)
  • Mass: Approx. 4.5 kg (9 lb 15 oz)
• Camera
  • Pickup device: 3-chip 2/3-inch type CCD
  • Effective picture elements (H x V): 1920 x 1080
  • Signal format:
    • 1080/50i, 59.94i, 23.98P, 24P, 25P, 29.97P
    • 1080/50P, 59.94P
    • 720/50P, 59.94P
  • Spectrum system: F1.4 prism system
  • Lens mount: Sony bayonet mount
  • Built-in filters:
    • CC: A: CROSS, B: 3200K, C: 4300K, D: 6300K, E: 8000K
    • ND: 1: Clear, 2: 1/4ND, 3: 1/8ND, 4: 1/16ND, 5: 1/64ND
  • Sensitivity (1080/59.94i): F10 at 2000 lx (3200K, 89.9% reflectance)
  • Signal-to-noise ratio: 56 dB/64 dB (w/NS max.) (1080i, typical)
  • Horizontal resolution (1080/59.94i): 1000 TV lines (at center)
  • Registration: Within 0.02% (all zones, without lens)
  • Shutter speed selection:
    • 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 s (1080/59.94i)
    • 1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000 s (1080/50i)
  • Modulation depth: 45% horizontally (typical) (800 TV lines at center, 27.5 MHz, with typical lens)
• Input/output connectors
  • Audio input (CH1): XLR-3-pin (female) (1), mic or front mic or line selectable
  • Audio input (CH2): XLR-3-pin (female) (1), AES/EBU or mic or line selectable
  • Mic 1 input: XLR-3-pin (female) (1)
  • Prompter output/Genlock input/Return input: BNC type (1), 1.0 Vp-p, 75 ohms
  • Prompter 2: BNC type (1), 1.0 Vp-p, 75 ohms
  • DC input: XLR-4-pin (1), 10.5 to 17 V DC
  • DC output: 4-pin (1), 10.5 to 17.5 V DC, 1.5 A (max.)
  • Test output: BNC type (1), 1.0 Vp-p, 75 ohms
  • SDI 1 output: BNC type (1) HD-SDI
  • SDI 2 output: (without embededd audio)
  • Earphone output: Stereo mini-jack (1)
  • CCU: Electro-optical connector (1)
  • Tracker: 10-pin (1)
  • Crane: 12-pin
  • Intercom 1: XLR-5-pin (female) (1)
  • Intercom 2: XLR-5-pin (female) (1)
  • Remote: 8-pin (1)
  • Lens: 12-pin (1)
  • Viewfinder: 20-pin (1)
• Supplied Accessories
  • Switch label 1, 2
  • Operation manual
