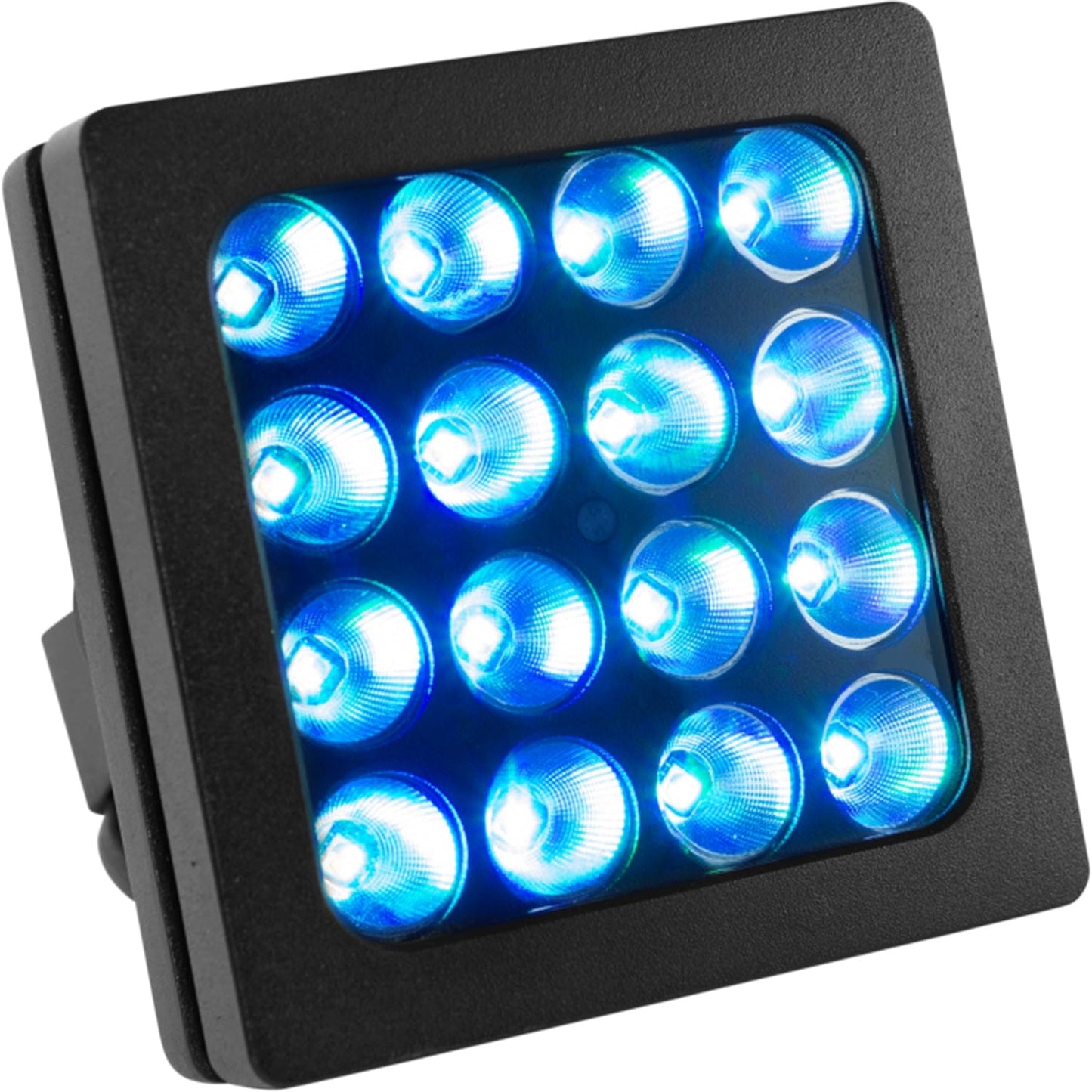

Solaris SOLMOZARTFLR 36-Degree Clear Lens LED

Solaris SOLMOZARTFLR 36-Degree Clear Lens LED

The Solaris Mozart FLR, successor to the Solaris Mozart, is one of the smallest DMX512 controlled LED fixtures on the market. Boasting vibrant colors with Cree™ LEDs, the Mozart FLR demonstrates it’s powerful performance in a versatile size. Modes include 1, 4, or 16 pixels (3 to 64 DMX channels) per fixture.

Features:

• Extreme brightness in a small package
• Great for low weight load-bearing structures and surfaces
• Moisture and dust resistant IP54 enclosure
• 1200 Hz refresh rate
• Single cable, simple power-data connections, daisy-chain or split – easily place a Mozart almost anywhere
• Easy remote addressing and mode switching via RDM

Specifications:

• Part Number: SOLMOZARTFLR
• LED Light sources: 16 CREE®
• Pixels per fixture: 1, 4, or 16
• DMX Channels per fixture: 3, 4, 12, 16, 48, or 64
• Fixtures per Drive Output:
  • 8 max. in Normal Mode
  • 5 max. in HiPower Mode
• Beam Spread: 36°
• Color LEDs: RGBW
• Average color wavelength (manufacturer rated):
  • red: 620-630 nm
  • green: 520-530 nm
  • blue: 450-460 nm
• Refresh rate: 1200 Hz
• Intensity Control: 8bit
• Control: DMX-512A, RDM
• DC Power: 48V
• Power Consumption: 25W
• Cooling: Convection
• IP Rating: IP54
• Operating Temperature: -20°C to +40°C
• Control/Power Connectors: In/Out - Amphenol Sensor M12
• Unit Dimensions (HxWxD): 4.7 x 4.7 x 1.9 in (120 x 120 x 49 mm)
• Shipping Dimensions (HxWxD): 5 x 6.5 x 6.75 in (127 x 165 x 172 mm)
• Unit Weight: 2.20 lb (1.0 kg)
• Shipping weight: 2.45 lb (1.1 kg)
