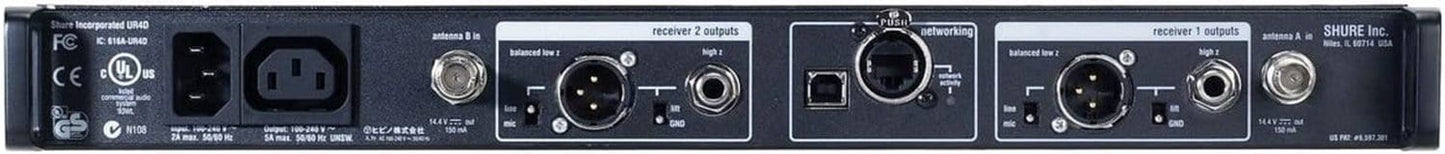

Shure UR4D-G1 Dual Channel Receiver UHF 470-530 Mhz
UR4D+ receivers provide dual-channel option for the premium Shure UHF-R Wireless line. Using the latest in wireless technologies, UHF-R receivers provide advanced control and robust flexibility for a wide range of professional uses.
Features:
- Up to 2400 selectable frequencies across 60 MHz bandwidth
- Track Tuning Filtering technology
- Up to 40 preset compatible systems/band (160 w/multiple bands, region dependent)
- Networked automatic frequency selection
- Automatic transmitter setup (including custom group upload)
- Flash memory to store six 60-channel custom frequency groups
- Patented Audio Reference Companding
- Multi-function bit-mapped backlit LCD
- Built-in USB & ethernet network compatibility
- Wireless Workbench control/monitoring software
- Remoteable antennas
- RF distribution ports allow up to 10 receivers to share a single pair of antennas.
- Microprocessor-controlled diversity
Specifications:
- Frequency Range(G1): 470-530 MHz
- Overall Dimensions: 44 mm H x 483 mm W x 366 mm D (1.72 x 19.00 x 14.39 in.)
- Net Weight: 11.2 pounds (5.1 kg)
- Housing Galvanized Steel: Galvanized Steel
- Audio Output Level: + 24 dBu (-6 dBu mic)
- Output Impedance: 200 Ω active balanced (150 Ω mic)
- RF Sensitivity: -107 dBm typical for 12 dB SINAD; -102 dBm typical for 30 dB SINAD
- Image Rejection: 110 dB typical
- Spurious Rejection: 90 dB typical
- Audio Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on XLR output pin 2 with respect to XLR pin 3 and on the tip of the 1/4-inch output jack.
- Power Requirements: 90 to 230 Vac, 50/60 Hz
- Power Consumption: 12 – 16 W
- Frequency Range(G1): 470-530 MHz
- Overall Dimensions: 44 mm H x 483 mm W x 366 mm D (1.72 x 19.00 x 14.39 in.)
- Net Weight: 11.2 pounds (5.1 kg)
- Housing Galvanized Steel: Galvanized Steel
- Audio Output Level: + 24 dBu (-6 dBu mic)
- Output Impedance: 200 Ω active balanced (150 Ω mic)
- RF Sensitivity: -107 dBm typical for 12 dB SINAD; -102 dBm typical for 30 dB SINAD
- Image Rejection: 110 dB typical
- Spurious Rejection: 90 dB typical
- Audio Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on XLR output pin 2 with respect to XLR pin 3 and on the tip of the 1/4-inch output jack.
- Power Requirements: 90 to 230 Vac, 50/60 Hz
- Power Consumption: 12 – 16 W
