Shure SLX4 J3 Single Receiver UHF 572-596Mhz

Shure SLX4 J3 Single Receiver UHF 572-596 Megahertz

The Shure SLX4 is a single-channel rackmount wireless receiver housed in a rugged metal chassis. It is compatible with the SLX1 bodypack and SLX2 handheld transmitters as well as the MX690 boundary and MX890 desktop base transmitters. The receiver offers high-quality, reliable audio to presenters, clergy, lecturers, and performers working in business and educational settings, houses of worship, theaters, or on musical stages.

Features:

• Auto-scan instantly locates a clear, interference-free channel for safe transmission
• Predictive-diversity technology uses a microprocessor to switch antennas before dropouts occur, greatly improving reception
• The receiver operates in a 24 MHz UHF tuning range with 960 selectable frequencies available
• Allows for up to 12 wireless mics transmitting simultaneously in the same space
• Automatically synchronize the frequency between the transmitter and the receiver via the easily accessible infrared (IR) port
• Shure’s patented Audio Reference Companding delivers crystal-clear audio with a 45 Hz to 15 kHz frequency response
• Detachable 1/4 wave antennas
• Multifunction, backlit LCD showing group, channel, frequency, transmitter battery strength, and locked/unlocked status

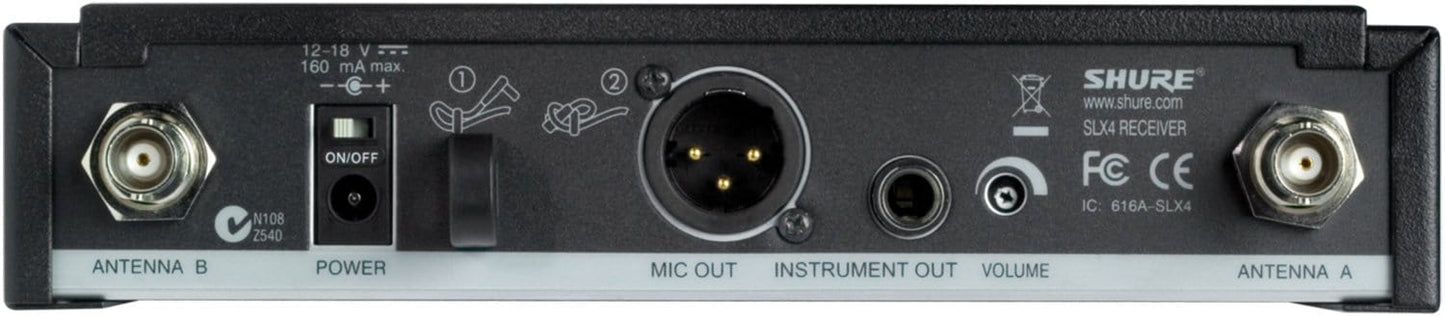

• The back panel houses a balanced XLR mic-level output as well as an unbalanced 1/4" instrument-level output
• Volume control is located on the rear of the unit
• Frequency and power lockout
• Rugged metal construction
• Includes rackmounting hardware

Specifications:

• Shure SLX4 Specs
  • Wireless Transmission: Analog UHF
  • Number of RF Channels: 960
  • Diversity: Antenna Diversity
  • RF Frequency Band: J3: 572 to 596 MHz
  • RF Bandwidth: 24 MHz
  • Frequency Step Size: 25 kHz
  • RF Channel Scanning: Auto-Scan
  • Max Operating Range: 328.1' / 100 m
  • Max Microphones per Band: 12
• Receiver
  • Form Factor: Tabletop
  • Mounting Options: Rackmount (with Included Hardware)
  • Rackmount Size: 1 RU (1/2 Rack)
  • Antenna: 2 x 1/4 Wave External, BNC (Rear-Mount)
  • Number of Audio Channels: 1
  • Audio I/O:
    • 1 x XLR 3-Pin Male Balanced Mic Output (Lockable)
    • 1 x 1/4" TRS Female Unbalanced Output
  • Gain Range: 0 to -25 dB
  • Audio Output Level:
    • XLR Output: -13 dBV (Mic Level)
    • 1/4" Output: -2 dBV (Instrument Level)
  • Frequency Response: 45 Hz to 15 kHz ±2 dB
  • Impedance:
    • XLR Output: 200 Ohms (Balanced)
    • 1/4" Output: 1K ohms (Unbalanced)
  • Approximate RF Sensitivity: -105 dBm
  • Adjacent Channel Isolation: >70 dB
  • Power Requirements: AC/DC Power Adapter
  • AC/DC Power Adapter: 12 VDC at 400 mA (Included)
  • AC Input Power: 100 to 240 VAC, 50 / 60 Hz at 150 mA
  • Display & Indicators: 1 x Backlit LCD (Channel, Group, Transmitter Battery Status)
  • Housing: Steel
  • Operating Temperature: 0 to 122°F / -18 to 50°C
  • Dimensions: 7.8 x 1.7 x 5.3" / 197 x 42 x 134 mm
  • Weight: 1.8 lbs. / 816 g
• Packaging Info
  • Package Weight: 6.05 lbs.
  • Box Dimensions (LxWxH): 18.2 x 14.5 x 3.7"
