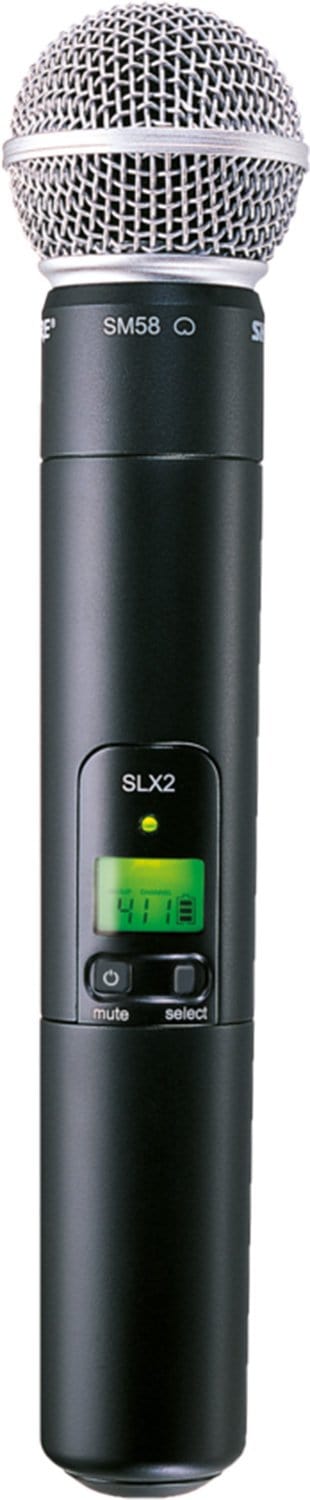

Shure SLX2 J3 Handheld Microphone UHF 740-776 Megahertz
The Shure SLX2 transmitter with the legendary SM58 head which is tuned to accentuate the warmth and clarity of lead and backing vocals.
Features:
- Automatic Transmitter Setup
- Backlit LCD with timeout feature
- Frequency and power lockout
- 3-segment battery fuel gauge
- 2 AA batteries (included) provide 8 hours of continuous use
Specifications
- Audio Input Level:
- mic: −10 dBV maximum
- 0dB: +10 dBV maximum
- –10dB: +20 dBV maximum
- Gain Adjustment Range: 30 dB
- Input Impedance: 1 MΩ
- RF Output Power: 10–30 mW
- Pin Assignments: TA4M
- 1: ground (cable shield)
- 2: + 5 V Bias
- 3: audio
- 4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)
- Dimensions: 108mm x 64mm x 19mm (H x W x D)
- Weight: 81 g (3 oz.)
- Housing: galvanized steel
- Power Requirements: 2 "AA" size alkaline or rechargeable batteries
- Battery Life: up to 8 hours (alkaline)
- Audio Input Level:
- mic: −10 dBV maximum
- 0dB: +10 dBV maximum
- –10dB: +20 dBV maximum
- Gain Adjustment Range: 30 dB
- Input Impedance: 1 MΩ
- RF Output Power: 10–30 mW
- Pin Assignments: TA4M
- 1: ground (cable shield)
- 2: + 5 V Bias
- 3: audio
- 4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)
- Dimensions: 108mm x 64mm x 19mm (H x W x D)
- Weight: 81 g (3 oz.)
- Housing: galvanized steel
- Power Requirements: 2 "AA" size alkaline or rechargeable batteries
- Battery Life: up to 8 hours (alkaline)
