Shure QLXD2/N8SB=-G50 Wireless QLXD2 Handheld Mic Transmitter with Nexadyne 8/S Capsule - Black

Shure QLXD2/N8SB=-G50 Wireless QLXD2 Handheld Mic Transmitter with Nexadyne 8/S Capsule - Black

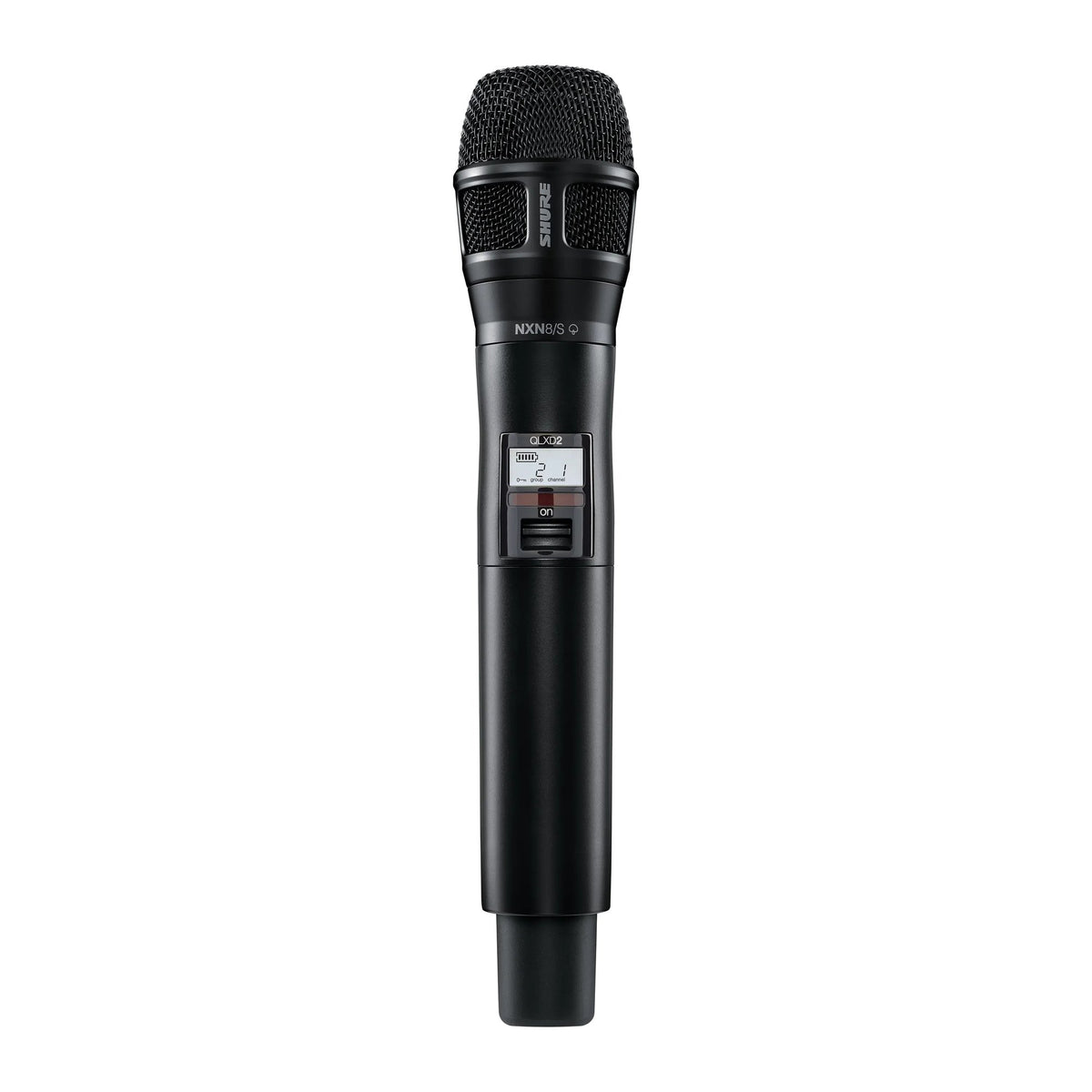

The Shure QLXD2/N8SB=-G50 is a digital handheld wireless microphone transmitter designed for seamless integration with QLX-D receivers. It features the Nexadyne 8/S supercardioid dynamic capsule powered by Shure's innovative Revonic dual-transducer design. This technology combines two interdependent diaphragms, voice coils, and magnets to deliver condenser-like clarity with natural high-end detail. The supercardioid polar pattern ensures tight directionality, high gain before feedback, and superior off-axis sound rejection, making it ideal for live vocal performances.

Operating in the G50 frequency band (470 to 534 MHz), this version provides a 64 MHz tuning range with 2560 selectable frequencies, ensuring a clear and reliable transmission channel. With up to 9 hours of runtime on two AA batteries, a transmission range of up to 330 feet, and selectable 1/10mW RF output power, the QLXD2/N8SB=-G50 offers outstanding performance and versatility for professional audio applications.

Features

• Compatible with QLX-D receivers.
• Nexadyne 8/S supercardioid dynamic microphone capsule.
• Shure Revonic dual-engine transducer for exceptional audio clarity.
• 64 MHz tuning range with 2560 selectable frequencies.
• 1/10mW selectable RF output power.
• Backlit LCD for easy operation and navigation.
• Adjustable gain control with a range of 0 to 21 dB (3 dB steps).
• Secure AES-256 encryption for reliable transmission.
• Networked intelligent charging capability.
• Up to 9 hours of battery life with 2 AA batteries (included).

Specifications

• RF Frequency Band: G50: 470 to 534 MHz.
• RF Bandwidth: 64 MHz.
• Frequency Step Size: 25 kHz.
• RF Channel Scanning: Auto-Scan.
• Max Operating Range: 330' / 100.6 m.
• Max Transmitters per Band: 60.
• Sample Rate/Resolution: 48 kHz / 24-Bit.
• Latency: < 2.9 ms.
• Encryption: AES 256.
• Transmitter Type: Handheld.
• RF Output Power: 1 / 10 mW.
• Frequency Response: 30 Hz to 20 kHz.
• Gain Range: 0 to 21 dB (3 dB Steps).
• Sync Method: IR.
• Antenna: 1x 1/4 Wave.
• Power Requirements: Battery.
• Battery Type: 2x AA (included) or Shure SB900A (optional, replaceable).
• Transmitter Battery Life: 9 hours (alkaline).
• Housing: Aluminum.
• Dimensions: 2 x 10.1" / 51 x 256 mm.
• Weight: 12.2 oz / 347 g (without batteries).
• Microphone Type: Handheld Capsule.
• Polar Pattern: Supercardioid.
• Frequency Range: 50 Hz to 20 kHz.
• Sensitivity: -51 dBV/Pa.
• Color: Black.
