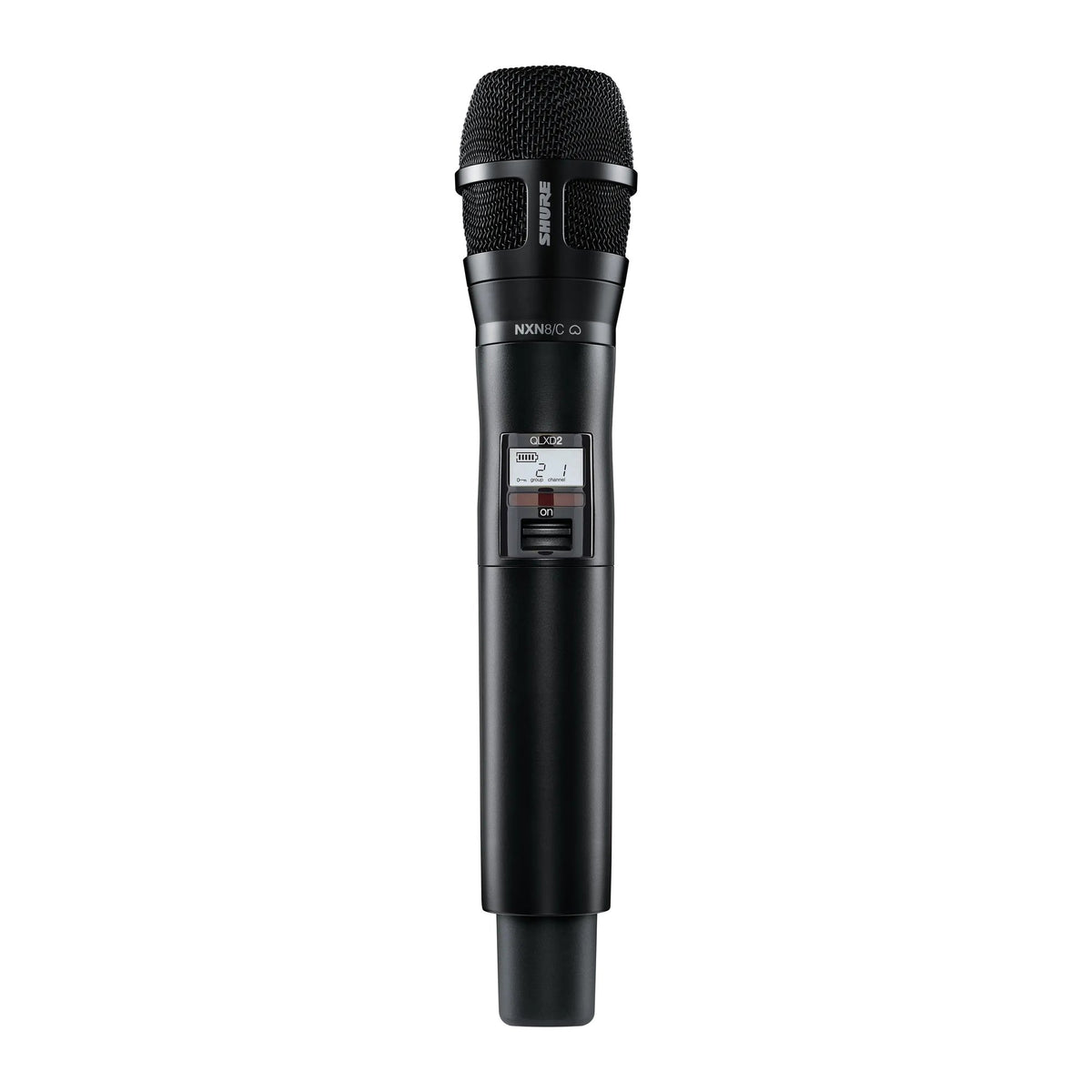

Shure QLXD2/N8CB=-G50 Wireless QLXD2 Handheld Mic Transmitter with Nexadyne 8/C Capsule - Black

Shure QLXD2/N8CB=-G50 Wireless QLXD2 Handheld Mic Transmitter with Nexadyne 8/C Capsule - Black

The Shure QLXD2/N8CB=-G50 handheld transmitter combines legendary audio quality, reliable wireless performance, and versatile functionality. Featuring 24-bit digital audio and efficient RF spectrum usage, the QLXD2 ensures uninterrupted signal clarity in venues of any size. Its 100m (330 ft.) range, all-metal durable construction, and easy IR syncing make it a dependable choice for live performances and presentations. With over 120 dB of dynamic range and no need for transmitter gain adjustment, this transmitter is designed for professional-grade performance.

Equipped with Shure's patented Nexadyne 8/C capsule, the transmitter features dual-engine transducer technology for optimal sound output. The cardioid polar pattern and advanced acoustic signal processing deliver clear, natural audio with excellent rejection of off-axis noise. With options for AA batteries or an optional lithium-ion rechargeable battery, the QLXD2 provides up to 10 hours of runtime and versatile configuration for various audio applications.

Features

• 20 Hz to 20 kHz frequency range with flat response (microphone dependent).
• Interchangeable Shure microphone capsules, including the SM58®.
• AES 256-bit encryption for secure transmission.
• Over 120 dB of dynamic range – no transmitter gain adjustment required.
• 1 mW and 10 mW selectable RF output power.
• Up to 9 hours continuous use with 2 x AA alkaline batteries.
• Optional Shure SB900B lithium-ion rechargeable battery provides up to 10 hours of runtime.
• External charging contacts for docked charging.
• Backlit LCD with easy-to-navigate menu and controls.
• Selectable display modes for group/channel, frequency, or battery runtime.
• 100-meter (330 ft.) line-of-sight operating range.
• Rugged machined aluminum housing.
• Frequency and power lockout for secure operation.

Specifications

• Mic Offset Range: 0 to 21 dB (in 3 dB steps).
• Battery Type:
  • Shure SB900A Rechargeable Li-Ion or AA batteries 1.5 V.
• Battery Runtime @ 10 mW:
  • Shure SB900A: Up to 10 hours.
  • Alkaline: Up to 9 hours.
• Dimensions: 256 mm × 51 mm (10.1 in. × 2.0 in.) L × Dia.
• Weight: 347 g (12.2 oz.) without batteries.
• Housing: Machined aluminum.
• Audio Input:
  • Configuration: Unbalanced.
  • Maximum Input Level @ 1 kHz at 1% THD: 145 dB SPL (SM58), typical (microphone dependent).
• RF Output:
  • Antenna Type: Integrated Single Band Helical.
  • Occupied Bandwidth: < 200 kHz.
  • Modulation Type: Shure proprietary digital.
  • Power: 1 mW or 10 mW (varies by region).
