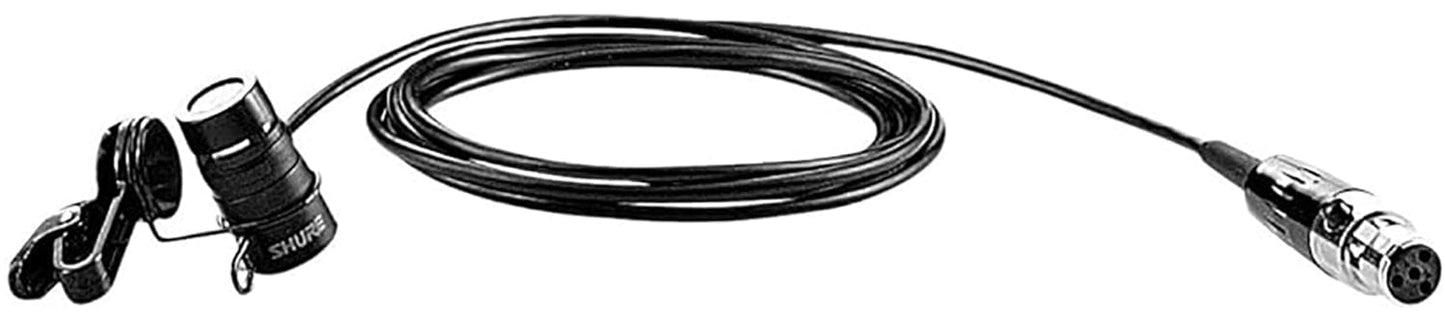

Shure QLXD14 Combo System with WL184 Lavalier Microphone - J50A Band

Shure QLXD14 Combo System with WL184 Lavalier Microphone - J50A Band

The Shure QLXD14 rackmount digital wireless guitar system provides musicians with professional-quality audio, and reliable RF performance. Rugged and easy-to-use, the system delivers an impressively low latency of 2.9ms, so you don't experience any lag when playing in medium-sized venues including concert stages, houses-of-worship, theaters, and clubs.

Features:

• For Guitar and Bass Players
• WA305 Locking Instrument Cable
• Rugged Bodypack Transmitter
• Switching-Diversity Rackmount Receiver
• 1760 Auto-Scan Frequencies
• Selectable 1/10mW RF Power
• High-Contrast LCD Display
• Ethernet Port for WWB Control Software
• 9-Hr AA Batteries
• Expandable to 60 Mic Channels/330' Range

Specifications:

• Number of RF Channel Frequencies: 1760
• Diversity: Antenna Diversity
• RF Frequency Band: J50A (572 to 608 MHz - 614 to 616 MHz)
• RF Bandwidth: 44 MHz
• Frequency Step Size: 25 kHz
• RF Channel Scanning: Auto-Scan
• Max Operating Range: 330' / 100.6 m
• Max Transmitters per Band: 60
• Latency: < 2.9 ms
• Modulation: Proprietary
• Receiver:
  • Receiver Type: Tabletop
  • Mounting Options: Rackmount (with Included Hardware)
  • Rackmount Size: 1 RU (1/2 Rack)
  • Antenna: 2 x 1/2 Wave External, Detachable (Rear-Mount)
  • Number of Audio Channels: 1
  • Audio I/O:
    • 1 x XLR 3-Pin Male Balanced Output
    • 1 x 1/4" TRS Female Balanced Output
  • Gain Range: -18 to +42 dB (1 dB Steps)
  • Pad: 30 dB
  • Audio Output Level:
    • XLR Output: +18 dBV (Line Level)
    • XLR Output: -12 dBV (Mic Level)
    • 1/4" Output: +12 dBV (Instrument Level)
  • Phantom Power Protection: On 1/4", XLR Output
  • Network I/O: 1 x RJ45 (10/100 Mb/s)
  • Network Protocols: DHCP, Manual IP
  • Impedance:
    • XLR Output: 100 Ohms (Balanced)
    • 1/4" Output: 100 Ohms (Balanced)
    • 1/4" Output: 50 Ohms (Unbalanced)
  • Approximate RF Sensitivity: -97 dBm
  • Adjacent Channel Isolation: >70 dB
  • Spurious: Rejection - >80 dB
  • Power Requirements: AC/DC Power Adapter
  • AC/DC Power Adapter: 12 VDC at 0.4 A, Center-Positive (Included)
  • AC Input Power: 100 to 240 VAC, 50 / 60 Hz at 150 mA
  • Display & Indicators:
    • 1 x Backlit LCD (AF Level, Channel, Group, Menu Navigation, Metering, RF Level, Transmitter Battery Status)
    • 1 x LED (Sync)
    • 1 x LED (Peak)
  • Housing: Metal
  • Operating Temperature: 0 to 122°F / -18 to 50°C
  • Dimensions: 7.8 x 1.6 x 5.9" / 197 x 41 x 151 mm (without Antennas)
  • Weight: 1.7 lb / 777 g (without Antenna)
• Packaging Info:
• Package Weight: 8.015 lb
• Box Dimensions (LxWxH): 19.2 x 17.4 x 4.1"
