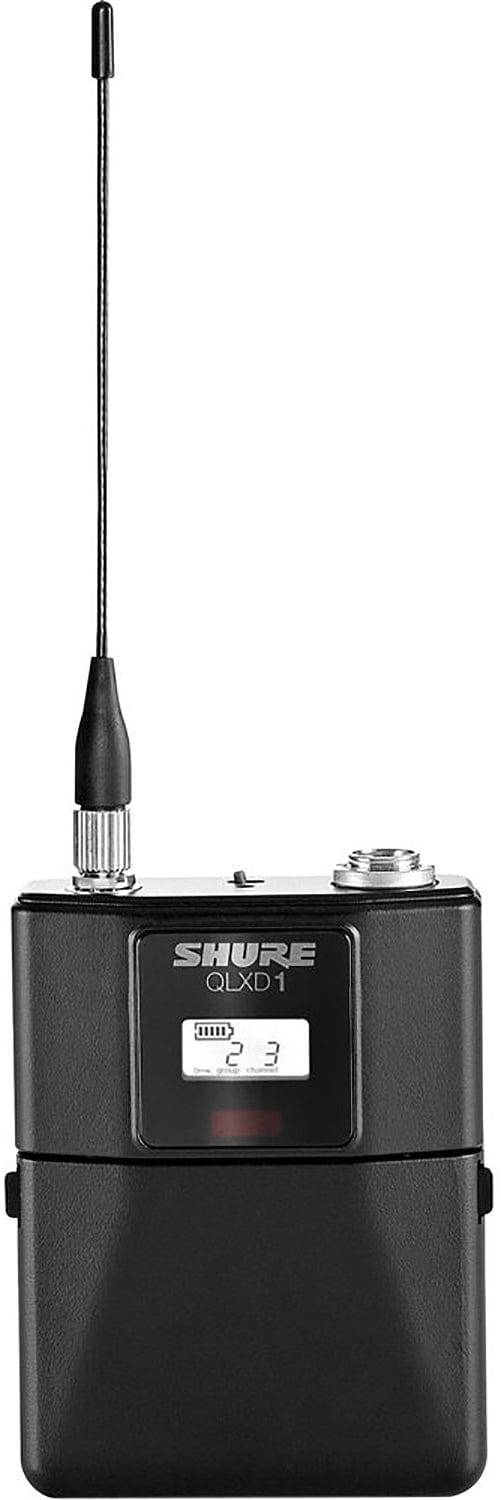

Shure QLXD1 Bodypack Transmitter - X52 Band
For capturing audio, the QLXD1 Wireless Bodypack Transmitter (902 to 928 MHz) by Shure is a good 24-bit digital audio solution. It can be used for wireless vocals and instruments in audio applications such as in presentation spaces, music venues, houses of worship, DJ setups, and more. It features a 20 Hz to 20 kHz frequency range and has over 120 dB of dynamic range. Features AES 256-bit encryption for secure transmission and up to 9 hours continuous use with two AA alkaline batteries. The QLXD1 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 328' range. All metal construction ensures durability and with a wide selection of compatible microphones choices, this bodypack transmitter when paired with a wireless receiver, provides clear audio and gets the job done.
Features:
- For Vocal and Instrument Applications
- 20 Hz to 20 kHz Frequency Range
- AES 256-Bit Encryption
- Runs on AA Alkaline Batteries
- IR Sync Capabilities
- Over 60 Selectable Channels
- 328' Reception Range
- Detachable Antenna
Specifications:
- Bodypack Transmitter:
- Frequency Range: 20 Hz to 20 kHz
- Band: 902 to 928 MHz
- Housing: Cast Aluminum
- Mic Offset Range: 0 to 21 dB (in 3 dB Steps)
- Battery Type: Shure SB900 Rechargeable Li-Ion or AA Batteries 1.5 V
- Battery Life:
- At 10 mW:
- Shure SB900: up to 10 Hours
- Alkaline: up to 9 Hours
- Audio Input:
- Connector: 4-Pin Male Mini Connector (TA4M)
- Configuration: Unbalanced
- Impedance: 1 MOhm
- Maximum Input Level 1 kHz at 1% THD: 8.5 dBV (7.5 V pp)
- Preamplifier Equivalent Input Noise (EIN) System Gain Setting ≥ +20: −120 dBV, A-Weighted, Typical
- RF Output:
- Connector: SMA
- Antenna Type: 1/4 Wave
- Impedance: 50 Ohms
- Occupied Bandwidth: <200 kHz
- Modulation Type: Shure Proprietary Digital
- Power: 1 mW or 10 mW
- Dimensions: 3.38 x 2.57 x 0.92" / 86 x 65 x 23 mm
- Weight: 4.9 oz / 138 g, without Batteries
- Bodypack Transmitter:
- Frequency Range: 20 Hz to 20 kHz
- Band: 902 to 928 MHz
- Housing: Cast Aluminum
- Mic Offset Range: 0 to 21 dB (in 3 dB Steps)
- Battery Type: Shure SB900 Rechargeable Li-Ion or AA Batteries 1.5 V
- Battery Life:
- At 10 mW:
- Shure SB900: up to 10 Hours
- Alkaline: up to 9 Hours
- Audio Input:
- Connector: 4-Pin Male Mini Connector (TA4M)
- Configuration: Unbalanced
- Impedance: 1 MOhm
- Maximum Input Level 1 kHz at 1% THD: 8.5 dBV (7.5 V pp)
- Preamplifier Equivalent Input Noise (EIN) System Gain Setting ≥ +20: −120 dBV, A-Weighted, Typical
- RF Output:
- Connector: SMA
- Antenna Type: 1/4 Wave
- Impedance: 50 Ohms
- Occupied Bandwidth: <200 kHz
- Modulation Type: Shure Proprietary Digital
- Power: 1 mW or 10 mW
- Dimensions: 3.38 x 2.57 x 0.92" / 86 x 65 x 23 mm
- Weight: 4.9 oz / 138 g, without Batteries
