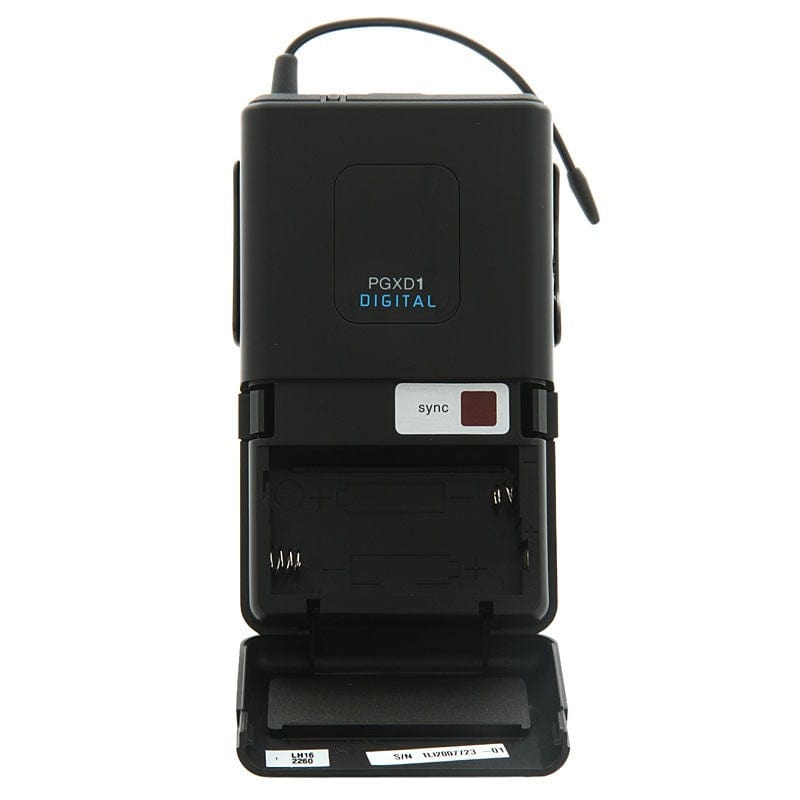

Shure PGXD1X8 Beltpack Transmitter X8 902-928 Megahertz
Powerful yet compact, the Shure PGXD1 transmits wireless audio from instrument or microphone sources with pure digital clarity and rock-solid reliability.
Features:
- Rugged, compact bodypack with belt clip
- 20 Hz - 20 kHz frequency range captures every nuance of tone
- Power, mute, and battery status LED
- 200 ft (60 m) operating range
- Up to 10 hours of continuous use from 2 AA batteries
- Recessed dial on side provides 26 dB of continuously adjustable gain
- Lockable interface prevents accidental setting change
Specifications:
- Audio Input Level:
- +10 dBV maximum, at minimum gain setting
- -16 dBV maximumm at maximum gain setting
- Gain Adjustment Range: 26 dB
- Impedance: 1000 Ω
- RF Output Power: 10 mW (varies by region)
- TA4M Pin Assigments:
- 1: ground (cable shield)
- 2: + 5 V bias
- 3: audio
- 4: Tied through active load to ground (on instrument adapter cable, pin 4 floats)
- Housing: Molded polycarbonate case
- Power Requirements: 2 AA size alkaline or rechargeable batteries
- Battery Life: Up to 10 hours
- Dimensions (H x W x D): 1.57 x 7.13 x 4.09 in | 40 x 181 x 104 mm
- Weight: 4.5 oz | 128 g, without batteries
- Audio Input Level:
- +10 dBV maximum, at minimum gain setting
- -16 dBV maximumm at maximum gain setting
- Gain Adjustment Range: 26 dB
- Impedance: 1000 Ω
- RF Output Power: 10 mW (varies by region)
- TA4M Pin Assigments:
- 1: ground (cable shield)
- 2: + 5 V bias
- 3: audio
- 4: Tied through active load to ground (on instrument adapter cable, pin 4 floats)
- Housing: Molded polycarbonate case
- Power Requirements: 2 AA size alkaline or rechargeable batteries
- Battery Life: Up to 10 hours
- Dimensions (H x W x D): 1.57 x 7.13 x 4.09 in | 40 x 181 x 104 mm
- Weight: 4.5 oz | 128 g, without batteries
