Shure P9TRA+425CL-H21 PSM1000 Monitor System - Dual Transmitter/2x Bodypacks/2x Earphones - H21 Band
The Shure PSM1000 Dual-Channel Personal Monitor System is a comprehensive package designed for professional applications, featuring a P10T full-rack dual-channel wireless transmitter, two P10R+ wireless diversity bodypack receivers, and two pairs of SE425 sound isolating earphones. It also includes antennas for both the transmitter and receivers, along with essential accessories like a hardware rackmount kit, link bar, zipper bag, bumper kit, and front-mount antenna cables. Ideal for touring, stage events, or permanent installations, this system ensures pristine RF signal and audio quality, with network control via Ethernet, internal power supply with IEC in/out ports, and compatibility with PSM 900 receivers. The diversity bodypack enhances signal reception, offering increased range, while the 72 MHz tuning bandwidth provides flexibility in crowded RF environments. Additionally, the P10R+ receiver conducts a full bandwidth scan for clean frequencies, and Wireless Workbench 6 software enables advanced RF spectrum plotting and frequency coordination, along with live monitoring and adjustment of transmitter settings.
Features:
- 2 x P10R+ Wireless Bodypack Receivers
- 2 x SE425 Sound-Isolating Earphones
- Full-Rack 2-Channel Wireless Transmitter
- Networkable via Ethernet
- Bodypack Rechargeability
- 49 Compatible Frequencies per Band
- 66 MHz Tuning Bandwidth
- Includes Antennas and Cables
- Includes Power Supply and Rackmount Kit
Specifications:
- Shure P10T Full-Rack Dual-Channel Wireless Transmitter:
- Specifications:
- RF Carrier Frequency Rang: 542-578 MHz
- Compatible Frequencies: Per Band: 39
- Tuning Bandwidth: 72 MHz
- Operating Range: 300' / 90 m (Environment Dependent)
- Frequency Response: 35 Hz to 15 kHz (±1 dB)
- Signal to Noise Ratio: 90 dB (Typical) A-Weighted
- Total Harmonic Distortion (THD): Ref. ±34 kHz Deviation at 1 kHz <0.5% (Typical)
- Companding: Patented Shure Audio Reference Companding
- Spurious Rejection: Ref. 12 dB SINAD: >80 dB (Typical)
- Frequency Stability: ±2.5 ppm
- MPX Pilot Tone: 19 kHz (±0.3 kHz)
- Modulation:
- FM (±34 kHz Deviation at 1 kHz)
- MPX Stereo Ref.
- Operating Temperature: 0 to 135°F / -18 to 57°C
- Transmitter:
- RF Output Power: Selectable: 10, 50, 100 mW (+20 dBm)
- RF Output Impedance: 50 Ohms (typical)
- Power Requirement:
- Input: 100 to 240 VAC, 50/60 Hz, 0.5 A Max (5.5, with Outlet Loaded)
- Output: 100 to 240 VAC, 50/60 Hz, 5 A Max, Unswitched
- Audio Input: Combination XLR-1/4" /6.3 mm TRS
- Polarity:
- XLR: Non-Inverting (Pin 2 Positive with Respect to Pin 3)
- 1/4" / 6.3 mm: Tip Positive with Respect to Ring
- Configuration: Electronically Balanced
- Impedance: 70.2 Kilohms (Actual)
- Nominal Input Level: Switchable: +4 dBu, -10 dBV
- Maximum Input Level:
- +4 dBu: +29.2 dBu
- -10 dBV: +12.2 dBu
- Pin Assignments:
- XLR: 1=Ground, 2=Hot, 3=Cold
- 1/4" / 6.3 mm TRS: Tip=Hot, Ring=Cold, Sleeve=Ground
- Phantom Power Protection: Up to 60 VDC
- Audio Output:
- Connector Type: 1/4" / 6.3 mm TRS
- Configuration: Electronically Balanced
- Impedance: Connected Directly to Inputs
- Physical Characteristics:
- Dimensions: 1.7 x 19.0 x 13.5" / 4.3 x 48.3 x 34.3 cm
- Weight: 10.4 lb / 4.7 kg
- Shure P10R+ Wireless Bodypack Receiver:
- Physical Characteristics
- RF Filter Range: Tri-Band: -3 dB at 30.5 MHz from the Center Frequency of Each Band
- RF Gain: Active: 31 dB (Adjusts RF Sensitivity to Provide More RF Dynamic Range)
- RF Sensitivity: 2.2 μV (20 dB SINAD)
- Squelch Threshold: 22 dB SINAD (±3 dB), Default Setting
- Adjacent Channel Rejection: >70 dB
- Intermodulation Attenuation: >70 dB
- Blocking: >80 dB
- Image Rejection: >90 dB
- Image Rejection: >90 dB
- Audio Output Power: 100 mW per Output (1 kHz @ <1% Distortion, Peak Power, @ 16 Ohms)
- Minimum Load Impedance: 4 Ohms
- Output Impedance: <1 Ohm
- 4-Band Parametric Equalizer:
- Low-Shelf Selectable Gain: ±2, ±4, ±6 dB @ 100 Hz
- Low-Mid Selectable Gain: ±2, ±4, ±6 dB @ 160, 250, 400, 500, 630 Hz
- Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
- High-Mid Selectable Gain: ±2, ±4, ±6 dB @ 1, 1.6, 2.5, 4, 6.3 kHz
- Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
- High-Shelf Selectable Gain: ±2, ±4, ±6 dB @ 10 kHz
- Volume Limiter: Selectable: 0 to -48 dB in 3 dB Steps
- Volume Lock:
- Selectable: 0 to -70 dB
- Limits Volume Adjustment Knob
- Selected Value Analogous to Volume Knob Increment
- Battery Life: 4-6 Hours (Continuous Use) with AA Batteries
- Dimensions: 3.9 x 2.6 x 0.9" / 9.9 x 6.6 x 2.3 cm
- Weight: 5.6 oz / 158.0 g without Batteries

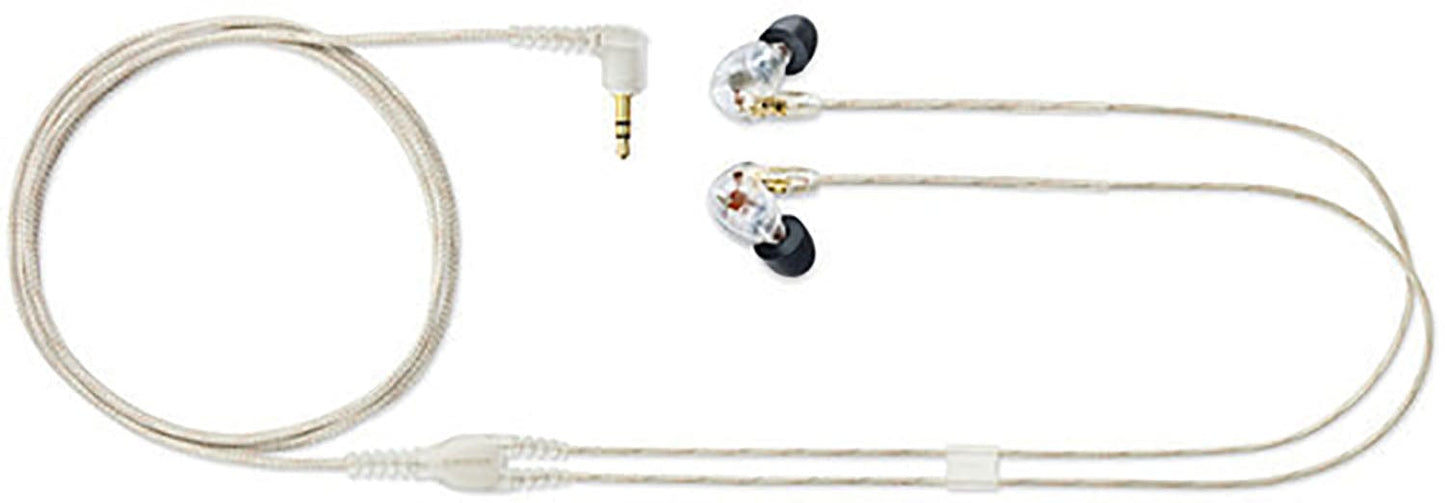

- Shure SE425 Sound Isolating In-Ear Stereo Headphones (Clear):
- Earpiece:
- Design: In-Ear (Intra-Aural)
- General:
- Frequency Response: 20 Hz to 19 kHz
- Sensitivity: 109 dB
- Impedance: 22 Ohms
- Connectivity:
- Audio Connector: 1/8" / 3.5 mm TRS
- Connector Plating: Gold
- Included Adapter: 1/4"
- Cable:
- Detachable: Yes
- Cable Length: 5.3' / m
- Shure P10T Full-Rack Dual-Channel Wireless Transmitter:
- Specifications:
- RF Carrier Frequency Rang: 542-578 MHz
- Compatible Frequencies: Per Band: 39
- Tuning Bandwidth: 72 MHz
- Operating Range: 300' / 90 m (Environment Dependent)
- Frequency Response: 35 Hz to 15 kHz (±1 dB)
- Signal to Noise Ratio: 90 dB (Typical) A-Weighted
- Total Harmonic Distortion (THD): Ref. ±34 kHz Deviation at 1 kHz <0.5% (Typical)
- Companding: Patented Shure Audio Reference Companding
- Spurious Rejection: Ref. 12 dB SINAD: >80 dB (Typical)
- Frequency Stability: ±2.5 ppm
- MPX Pilot Tone: 19 kHz (±0.3 kHz)
- Modulation:
- FM (±34 kHz Deviation at 1 kHz)
- MPX Stereo Ref.
- Operating Temperature: 0 to 135°F / -18 to 57°C
- Transmitter:
- RF Output Power: Selectable: 10, 50, 100 mW (+20 dBm)
- RF Output Impedance: 50 Ohms (typical)
- Power Requirement:
- Input: 100 to 240 VAC, 50/60 Hz, 0.5 A Max (5.5, with Outlet Loaded)
- Output: 100 to 240 VAC, 50/60 Hz, 5 A Max, Unswitched
- Audio Input: Combination XLR-1/4" /6.3 mm TRS
- Polarity:
- XLR: Non-Inverting (Pin 2 Positive with Respect to Pin 3)
- 1/4" / 6.3 mm: Tip Positive with Respect to Ring
- Configuration: Electronically Balanced
- Impedance: 70.2 Kilohms (Actual)
- Nominal Input Level: Switchable: +4 dBu, -10 dBV
- Maximum Input Level:
- +4 dBu: +29.2 dBu
- -10 dBV: +12.2 dBu
- Pin Assignments:
- XLR: 1=Ground, 2=Hot, 3=Cold
- 1/4" / 6.3 mm TRS: Tip=Hot, Ring=Cold, Sleeve=Ground
- Phantom Power Protection: Up to 60 VDC
- Audio Output:
- Connector Type: 1/4" / 6.3 mm TRS
- Configuration: Electronically Balanced
- Impedance: Connected Directly to Inputs
- Physical Characteristics:
- Dimensions: 1.7 x 19.0 x 13.5" / 4.3 x 48.3 x 34.3 cm
- Weight: 10.4 lb / 4.7 kg
- Shure P10R+ Wireless Bodypack Receiver:
- Physical Characteristics
- RF Filter Range: Tri-Band: -3 dB at 30.5 MHz from the Center Frequency of Each Band
- RF Gain: Active: 31 dB (Adjusts RF Sensitivity to Provide More RF Dynamic Range)
- RF Sensitivity: 2.2 μV (20 dB SINAD)
- Squelch Threshold: 22 dB SINAD (±3 dB), Default Setting
- Adjacent Channel Rejection: >70 dB
- Intermodulation Attenuation: >70 dB
- Blocking: >80 dB
- Image Rejection: >90 dB
- Image Rejection: >90 dB
- Audio Output Power: 100 mW per Output (1 kHz @ <1% Distortion, Peak Power, @ 16 Ohms)
- Minimum Load Impedance: 4 Ohms
- Output Impedance: <1 Ohm
- 4-Band Parametric Equalizer:
- Low-Shelf Selectable Gain: ±2, ±4, ±6 dB @ 100 Hz
- Low-Mid Selectable Gain: ±2, ±4, ±6 dB @ 160, 250, 400, 500, 630 Hz
- Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
- High-Mid Selectable Gain: ±2, ±4, ±6 dB @ 1, 1.6, 2.5, 4, 6.3 kHz
- Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
- High-Shelf Selectable Gain: ±2, ±4, ±6 dB @ 10 kHz
- Volume Limiter: Selectable: 0 to -48 dB in 3 dB Steps
- Volume Lock:
- Selectable: 0 to -70 dB
- Limits Volume Adjustment Knob
- Selected Value Analogous to Volume Knob Increment
- Battery Life: 4-6 Hours (Continuous Use) with AA Batteries
- Dimensions: 3.9 x 2.6 x 0.9" / 9.9 x 6.6 x 2.3 cm
- Weight: 5.6 oz / 158.0 g without Batteries
- Shure SE425 Sound Isolating In-Ear Stereo Headphones (Clear):
- Earpiece:
- Design: In-Ear (Intra-Aural)
- General:
- Frequency Response: 20 Hz to 19 kHz
- Sensitivity: 109 dB
- Impedance: 22 Ohms
- Connectivity:
- Audio Connector: 1/8" / 3.5 mm TRS
- Connector Plating: Gold
- Included Adapter: 1/4"
- Cable:
- Detachable: Yes
- Cable Length: 5.3' / m
