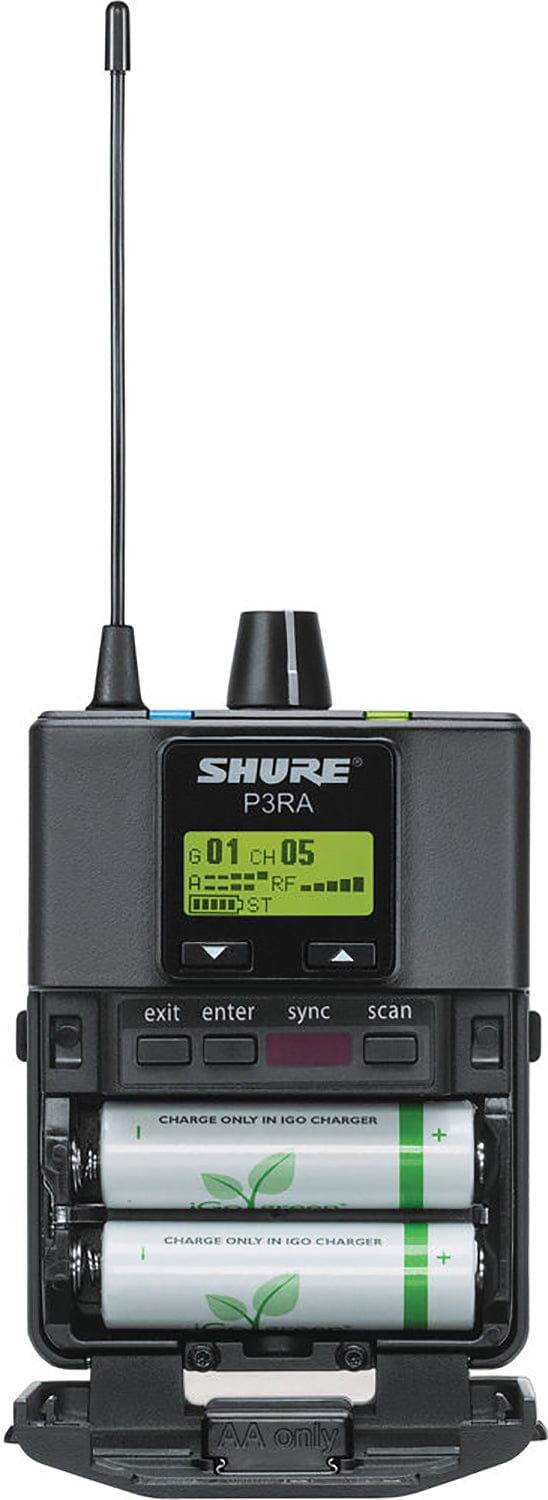

Shure P3RA=-J13 PSM300 Professional Bodypack Receiver - J13 Band
The P3RA is a wireless stereo bodypack receiver for use with the PSM®300 Personal Monitor System. With detailed 24-bit digital audio and reliable wireless performance, the P3RA bodypack delivers professional personal monitoring to any corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Find a wireless channel easily, using the scan function to automatically select the cleanest frequency available from a wide tuning bandwidth. Adjust the volume and use MixMode® technology or stereo mode to create a personal mix from two channels of audio. EQ and volume limiting further individualize the sound via the high-contrast LCD menu. With a compact and rugged aluminum body, the P3RA ensures a long lifetime of use and easily clips onto a belt or guitar strap. Two standard AA batteries provide up to 6 hours of continuous use. The optional SB900A rechargeable battery (sold separately) extends runtime and allows easy in-unit charging.
Features:
- Rugged, all-metal construction
- High-contrast LCD screen with menu-based navigation
- 2-band shelving EQ with high and low boost
- Volume limiter sets the maximum gain level range for the volume knob
- MixMode® technology enables adjustment of two independent monitoring mix levels
- Stereo mode enables adjustment of left/right balance
- Frequency scan and IR sync quickly finds and assigns a clean channel
- 2 AA batteries provide up to 6 hours of continuous use
- Optional Shure SB900A lithium-ion rechargeable battery provides extended runtime
- Power and battery status LED
- 5-segment battery life meter
- Power save mode preserves battery life when earphones are not connected
Specifications:
- Active RF Sensitivity (at 20 dB SINAD): 2.2 μV
- Image Rejection: >90 dB
- Adjacent Channel Rejection: >60 dB
- Intermodulation Attenuation: >50 dB
- Blocking: >60 dB
- Audio Output Power 1 kHz @ <1% distortion, peak power, @32 Ω: 80 mW (per output)
- Minimum Load Impedance: 16 Ω
- Headphone output: 3.5 mm (1.8") stereo
- Net Weight: 196 g (6.9 oz.) (with batteries)
- Dimensions: 99 × 66 × 23 mm (H × W × D)
- Battery Life (continuous use):
- 4–5.5 hours, AA batteries
- 5.5–7 hours, SB900A battery
- Active RF Sensitivity (at 20 dB SINAD): 2.2 μV
- Image Rejection: >90 dB
- Adjacent Channel Rejection: >60 dB
- Intermodulation Attenuation: >50 dB
- Blocking: >60 dB
- Audio Output Power 1 kHz @ <1% distortion, peak power, @32 Ω: 80 mW (per output)
- Minimum Load Impedance: 16 Ω
- Headphone output: 3.5 mm (1.8") stereo
- Net Weight: 196 g (6.9 oz.) (with batteries)
- Dimensions: 99 × 66 × 23 mm (H × W × D)
- Battery Life (continuous use):
- 4–5.5 hours, AA batteries
- 5.5–7 hours, SB900A battery
