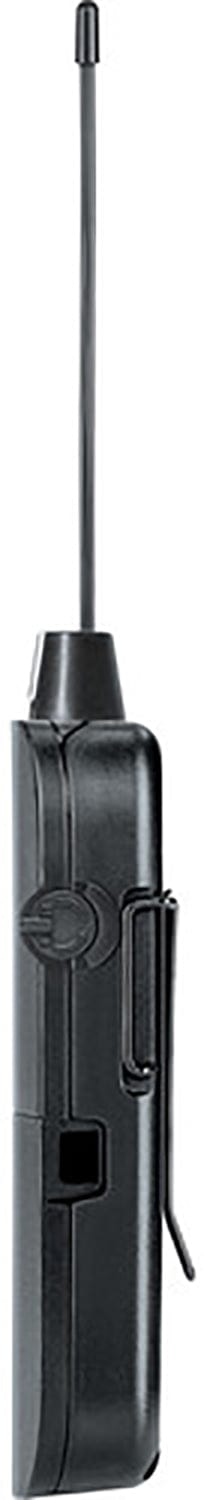

Shure P3R=-H20 Wireless Bodypack Receiver for PSM 300 Personal Monitor System
The P3R is a wireless stereo bodypack receiver for use with the PSM 300 Personal Monitor System.
With 24-bit digital audio clarity and up to 90 meters of range, the P3R offers reliable wireless freedom that covers every corner of the stage. Simply connect a set of earphones and adjust the controls to create a wireless personal mix. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Use MixMode® technology to customize the mono blend from two channels of audio, or select stereo mode and adjust the left/right balance as desired. One-touch frequency scan and automatic frequency selection enables quick setup and connection to a P3T transmitter via IR sync.
Features:
- Slim, lightweight, durable form factor
- Frequency scan and IR sync quickly finds and assigns a clean channel
- MixMode technology enables adjustment of two independent monitoring mix levels
- Stereo mode enables adjustment of left/right balance
- Easy to adjust volume knob and mix control
- 2 AA batteries provide up to 7 hours of continuous operation
- Power save mode preserves battery life when earphones are not connected
- Power and battery status LED
Specifications:
- Active RF Sensitivity (at 20 dB SINAD): 2.2 μV
- Image Rejection: >90 dB
- Adjacent Channel Rejection: >60 dB
- Intermodulation Attenuation: >50 dB
- Blocking: >60 dB
- Audio Output Power 1 kHz @ <1% distortion, peak power, @32 Ω: 80 mW (per output)
- Minimum Load Impedance: 16 Ω
- Headphone output: 3.5 mm (1.8") stereo
- Net Weight: 98 g (3.5 oz.) (without batteries)
- Dimension :110 × 64 × 21 mm H × W × D
- Battery Life (continuous use): 5–7 hours, AA batteries
- Active RF Sensitivity (at 20 dB SINAD): 2.2 μV
- Image Rejection: >90 dB
- Adjacent Channel Rejection: >60 dB
- Intermodulation Attenuation: >50 dB
- Blocking: >60 dB
- Audio Output Power 1 kHz @ <1% distortion, peak power, @32 Ω: 80 mW (per output)
- Minimum Load Impedance: 16 Ω
- Headphone output: 3.5 mm (1.8") stereo
- Net Weight: 98 g (3.5 oz.) (without batteries)
- Dimension :110 × 64 × 21 mm H × W × D
- Battery Life (continuous use): 5–7 hours, AA batteries
