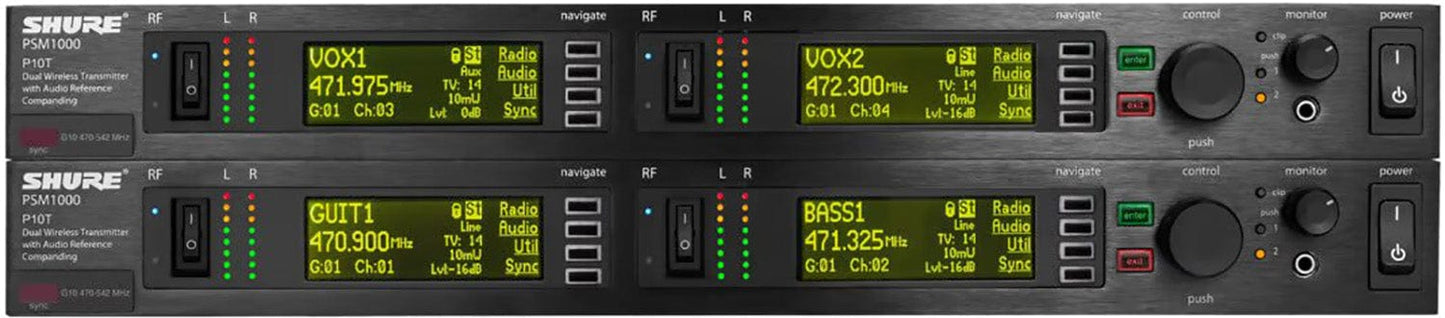

Shure P10T=-L8 Wireless Transmitter - L8 Frequency
Shure’s P10T is a networkable, full-rack, dual-channel wireless transmitter used in conjunction with the P10R Wireless Bodypack Receiver as part of the PSM® 1000 Personal Monitor System. The P10T Wireless Transmitter combines state-of-the-art technology with touring-grade features for professional monitoring applications of any size with no room for error. It offers a 72 MHz to 80 MHz tuning bandwidth, networked remote control via Wireless Workbench® software, advanced rechargeability options, and PSM® 900 backwards compatibility.
Features:
- Touring-Grade Design and Performance
- Robust RF Performance and Networked Control
- Advanced Setup and Operation
- Exceptional Audio Quality
Specifications:
- RF Output Power Selectable: 10, 50, 100 mW (regionally dependent)
- RF Output Impedance: 50 Ω (typical)
- Net Weight: 4.7 Kg (10.4 lb)
- Dimensions: 44 x 483 x 343 mm
- Power Requirement:
- RF on, 100 mW power mode, no audio
- Input: 100-240V AC, 50/60 Hz, 0.5A max (5.5 max outlet loaded)
- Output: 100-240V AC, 5A max, unswitched
- Audio Input:
- Connector Type: Combination XLR and 6.35 mm (1/4”) TRS
- Polarity:
- XLR: Non-inverting (pin 2 positive with respect to pin 3)
- 6.35 mm (1/4”) TRS: Tip positive with respect to ring
- Configuration: Electronically balanced
- Impedance: 70.2 kΩ (actual)
- Nominal Input Level: Switchable: +4 dBu, –10 dBV
- Maximum Input Level:
- +4 dBu: +29.2 dBu
- –10 dBV: +12.2 dBu
- Pin Assignments:
- XLR: 1=ground, 2=hot, 3=cold
- 6.35 mm (1/4”) TRS: Tip=hot, Ring=cold, Sleeve=ground
- Phantom Power Protection: Up to 60 V DC
- Audio Output:
- Connector Type: 6.35 mm (1/4”) TRS
- Configuration: Electronically balanced
- Impedance: Connected directly to inputs
