Shure MXCWAPT-W Wireless Access Point Transceiver - Asia (Except Japan)/Europe/India/Rest of World

Shure MXCWAPT-W Wireless Access Point Transceiver - Asia (Except Japan)/Europe/India/Rest of World

The MXCWAPT Access Point Transceiver is the hub of the Microflex Complete Wireless conference system. It manages audio routing, frequency coordination, and system control for up to 125 wireless conference units.

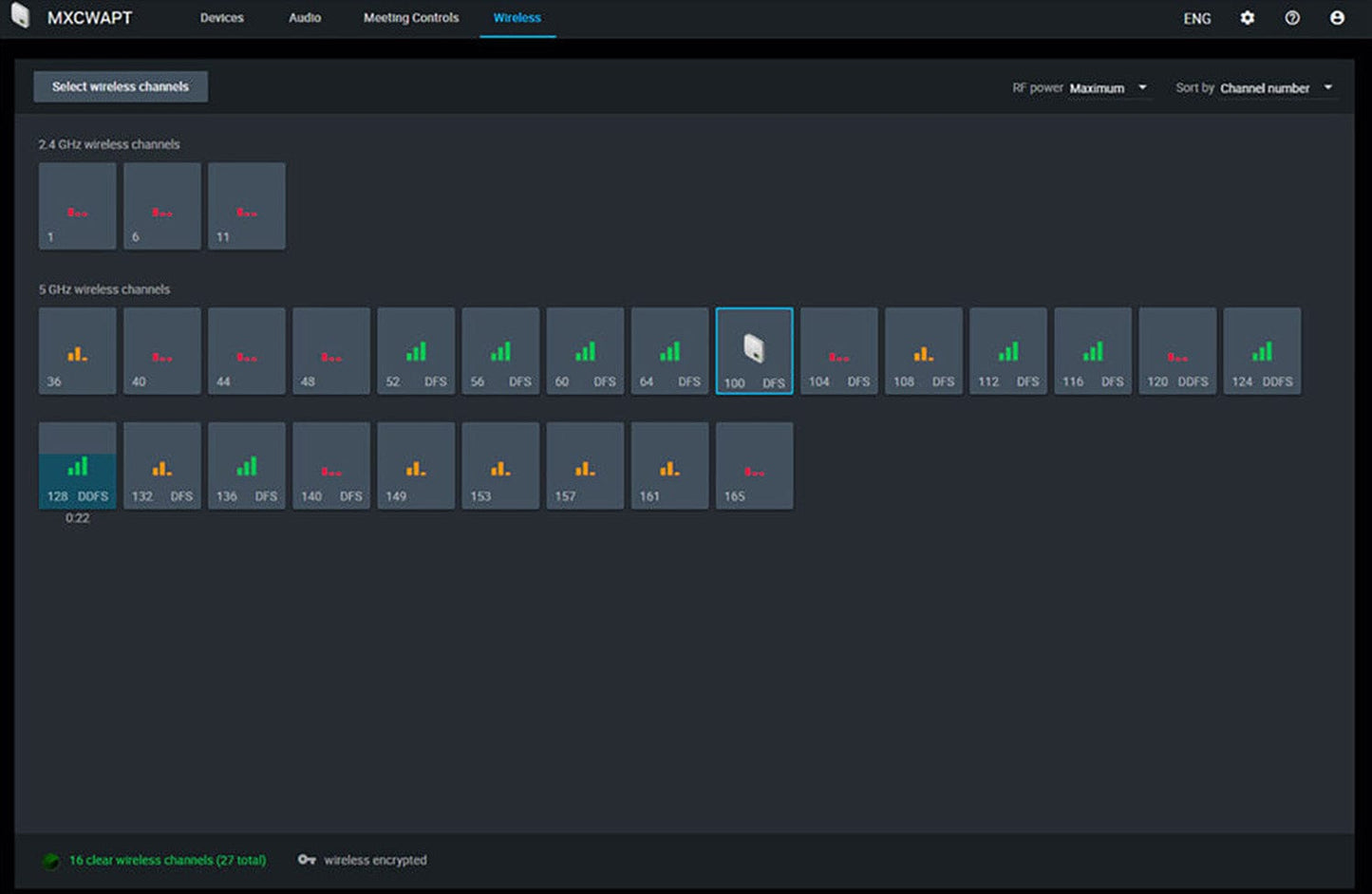

During setup, the MXCWAPT scans the 2.4 GHz and 5 GHz frequency bands to identify the clearest channel and conveys that information to the conference units. The Access Point system takes advantage of limited-access DFS spectrum to expand the number of available channels. If a potential conflict is identified, the Access Point immediately instructs all conference units to change channels seamlessly, without interruption. The wireless connection features AES-128 encryption for enhanced privacy.

The Access Point includes a Dante networked audio connection that supports up to 10 input channels and 10 output channels. In addition, an analog XLR audio input and output permits connection of a wireless microphone for a presenter or an external sound reinforcement system for an audience.

The MXCWAPT includes an information display and controls for basic system configuration without a laptop. The unit is powered by a standard PoE switch or power injector. The access point can be mounted on the wall or ceiling with the included mounting bracket and paintable cover, or placed on a table for temporary meetings.

Features:

• Controls up to 125 MXCW640 wireless conference units
• Bi-directional wireless connection provides audio to and from conference units and enables real-time control of all settings
• Operates in 2.4 GHz / 5 GHz frequency bands, including DFS spectrum
• Automatic frequency coordination, interference detection, and avoidance
• Dante digital audio (10 inputs/10 outputs)
• Analog audio input and output (XLR)
• One Ethernet cable for audio, control, and PoE power
• AES-128 encryption for enhanced privacy
• Display for basic system configuration without a laptop
• LEDs indicate power, wireless connection, and network status
• Includes wall/ceiling mounting plate

Specifications:

• Analog Audio Inputs:
  • Maximum Input Level:
    • 24.9 dBV (1% THD+N, Measured at Dante Output, Line Level, Analog Input Gain = 0 dB, Dante Output Gain = 0 dB)
    • 10.3 dBV (1% THD+N, Measured at Dante Output, Aux Level, Analog Input Gain = 0 dB, Dante Output Gain = 0 dB)
  • Frequency Response:
    • 22 Hz to 20 kHz (+0.5 dB/-3 dB, Measured at Dante Output, -6 dBFS Input, Line Level, Analog Input Gain = 0 dB, Dante Output Gain = 0 dB)
    • 22 Hz to 20 kHz (+0.5 dB/-3 dB, Measured at Dante Output, -6 dBFS Input, Aux Level, Analog Input Gain = 0 dB, Dante Output Gain = 0 dB)
  • Total Harmonic Distortion/Noise:
    • 0.03%, Typical (Measured at Dante Output, -6 dBFS Input, 1 kHz, Line Level, Analog Input Gain = 0 dB, Dante Output Gain = 0 dB, 22 Hz to 22 kHz BW)
    • 0.02%, Typical (Measured at Dante Output, -6 dBFS Input, 1 kHz, Aux Level, Analog Input Gain = 0 dB, Dante Output Gain = 0 dB, 22 Hz to 22 kHz BW)
  • Dynamic Range:
    • 115 dB [A-Weighted, 113 dB (Unweighted), Typical Measured at Dante Output, Line Level, Analog Input Gain = 0 dB, Dante Output Gain = 0 dB, 22 Hz to 22 kHz BW]
    • 112 dB [A-Weighted, 110 dB (Unweighted), Typical Measured at Dante Output, Aux Level, Analog Input Gain = 0 dB, Dante Output Gain = 0 dB, 22 Hz to 22 kHz BW]
  • Equivalent Input Noise:
    • Preamplifier:
      • -92 dBV (A-Weighted, Typical Line Level, Analog Input Gain = 0 dB, 22 Hz to 22 kHz BW)
      • -104 dBV (A-Weighted, Typical Aux Level, Analog Input Gain = 0 dB, 22 Hz to 22 kHz BW)
  • Connector Type: XLR-3-Pin Female (Pin 1 = Ground, Pin 2 = Audio +, Pin 3 = Audio -)
• Analog Audio Outputs:
  • Maximum Output Level: 4.3 dBV (1% THD+N, Audio Injected at Dante Input, Dante Input Gain = 0 dB, Analog Output Gain = 0 dB)
  • Frequency Response: 1 Hz to 20 kHz (+0.5 dB/-3 dB), Audio Injected at Dante Input, -6 dBFS Input, Dante Input Gain = 0 dB, Analog Output Gain = 0 dB
  • Total Harmonic Distortion/Noise: 0.01% (Typical, Audio Injected at Dante Input, -6 dBFS Input, 1 kHz, Dante Input Gain = 0 dB, Analog Output Gain = 0 dB, 22 Hz to 22 kHz BW)
  • Dynamic Range (Typical): 100 dB [A-Weighted, 97 dB (Unweighted), Typical Audio Injected at Dante Input, Dante Input Gain = 0 dB, Analog Output Gain = 0 dB, 22 Hz to 22 kHz BW]
  • Load Impedance: >600 Ohms, Typical
  • Connector Type: 3-Pin XLR Male [Standard XLR Pinout (Pin 1 = Ground, Pin 2 = Audio +, Pin 3 = Audio -)]
  • Ground Lift: XLR GND Lift Switch Position - "Left (Pin 1-GND Connected) Right (Pin 1-GND Disconnected)"
  • Equivalent Noise Level: -104 dBV [A-Weighted, Typical Aux Level, Analog Input Gain = 0 dB, 22 Hz to 22 kHz BW], Input Impedance 10 Kilohms Line Level
  • Input Impedance:
    • 10 Kilohms, Line Level
    • 12 Kilohms, Aux Level
  • Configuration: Balanced
• RF Specification:
  • IEEE WLAN Standard: IEEE 802.11 a, g
  • Frequency Bands: 2.4 GHz ISM, 5 GHz UNII
  • Sensitivity: -80 dBm at 10% PER
  • RF Output Power: 1 mW (Low), 5 mW (Medium), 13 mW (High), 25 mW (Maximum)
  • Antenna Type: Proprietary Internal Bi-Level Dual-Band (PIFA), Patent Pending
• Power:
  • Supply Type: Power over Ethernet (PoE) 802.2 af, Class 0 PD
  • Supply Voltage: 37 to 57 V
  • Power Consumption: 12.95 W Maximum, 6.5 W Typical
• Network:
  • Interface: Gigabit Ethernet, Dante Digital Audio
  • Link: Speed - 10/100/1000 Mb/s
  • Network Addressing Capability: DHCP or Manual IP Address
  • Cable Length: 328' / 100 m Maximum
  • Cable Type: Cat 5e or Higher
• Display:
  • Type: Monochrome FFSTN LCD
  • Display Size: 1.84 x 0.074" / 46.7 x 18.8 mm
  • Display Resolution: 152 x 78 (78 ppi)
• General:
  • Housing: Molded Plastic, Die-Cast Aluminum
  • Mounting: Ceiling Bracket or Wall
  • Operating Temperature Range: 19.4 to 120.2° F / 7 to 49° C
  • Storage Temperature: -20.2 to 140° F / -29 to 60° C
  • Dimensions: 1.88 x 9.55 x 9.52" / 47.8 x 242.5 x 241.8 mm
  • Weight: 2.54 lb / 1.15 kg
