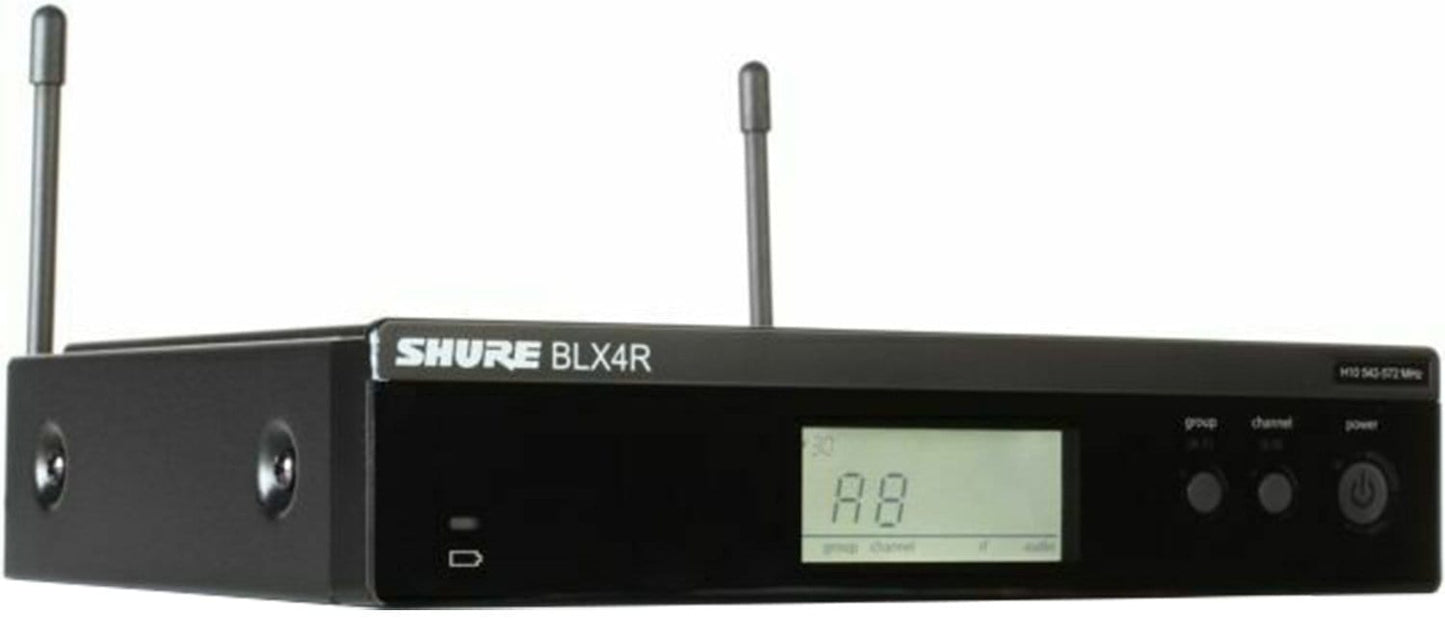

Shure BLX4RH10 UHF Simple Receiver 542-572 Megahertz
The Shure BLX4R is a single-channel wireless receiver compatible with the BLX1 bodypack transmitter and BLX2 handheld transmitters. It features a rugged metal chassis and, using the included hardware, can be rackmounted with the two removable antennas positioned on the front of the rack—for optimal signal reception in A/V installations and sound-reinforcement applications.
Features:
- For Small Venues and Conference Rooms
- Single-Channel, Rackmount Design
- 123 Auto-Scan Frequencies
- Two Removable Antennas with Diversity
- Adjustable Output Level
- Rugged Metal Construction
- Expandable to 12 Mic Channels/300' Range
Specifications
- Shure BLX4R Specs:
- Wireless Technology: Analog UHF
- Number of RF Channels: 123
- Diversity: Antenna Diversity
- RF Frequency Band H10: 542 to 572 MHz
- RF Bandwidth: 24 MHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 300' / 91.4 m (Line of Sight)
- Max Microphones per Band: 12
- Receiver:
- Receiver Type: Rackmount
- Mounting Options: Rackmount (with Included Hardware)
- Rackmount Size: 1 RU (1/2 Rack)
- Antenna: 2 x 1/4 Wave External, Detachable (Rear-Mount)
- Number of Audio Channels: 1
- Audio I/O:
- 1 x XLR 3-Pin Male Balanced Output
- 1 x 1/4" TS Female Unbalanced Output
- Audio Output Level:
- XLR Output: -20.5 dBV (Mic Level)
- 1/4" Output: -13 dBV (Instrument Level)
- Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)
- Impedance:
- XLR Output: 200 Ohms
- 1/4" Output: 50 Ohms
- Approximate RF Sensitivity: -105 dBm
- Adjacent Channel Isolation: >50 dB
- Power Requirements: AC/DC Power Adapter
- AC/DC Power Adapter: 12 to 15 VDC at 260 mA, Center-Positive (Included)
- Display & Indicators:
- 1 x Backlit LCD (AF Level, Channel, Group, Metering, RF Level)
- 1 x LED (Transmitter Battery Status)
- Housing: Steel
- Operating Temperature: 0 to 135°F / -17 to 57°C
- Dimensions: 7.8 x 2 x 6.4" / 198 x 50 x 163 mm (without Mounting Hardware, Antennas)
- Weight: 35.2 oz / 998 g
- Packaging Info:
- Package Weight: 6.4 lb
- Box Dimensions (LxWxH): 18.4 x 14.7 x 3.8"
