Description

Shure BLX14R Wireless Rack-mount Headset System with SM35 Headset Microphone - J11 Band

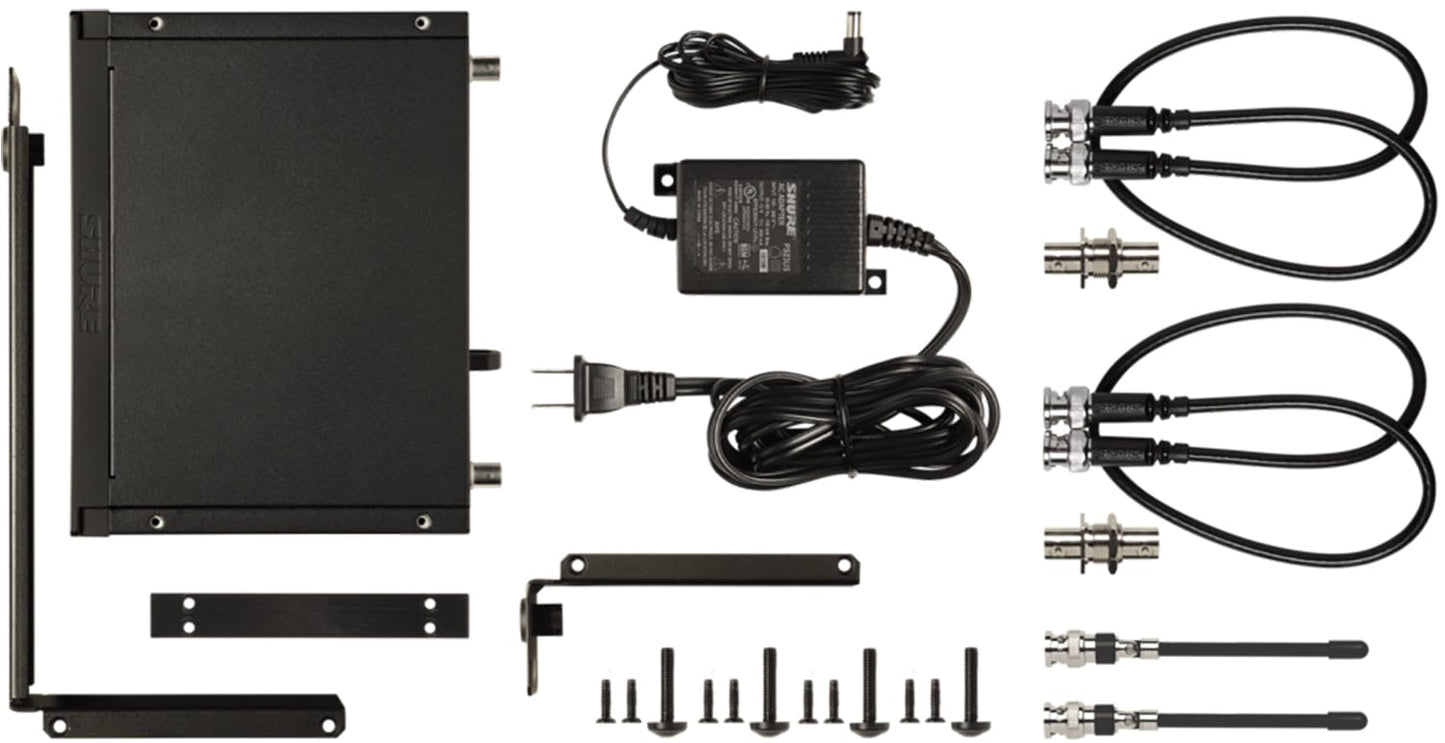

The Shure BLX14R/SM35 Wireless Rack-mount Headset System combines professional-quality sound with simple setup and up to 14 hours battery life for great audio performance right out of the box. The system includes BLX4R half-rack single-channel receiver, SM35 headset microphone with BLX1 bodypack transmitter, clothing clip, power supply, 2 AA batteries, windscreens, rackmount kit, 2 1/4 wave antennas, and user guide.

Features:

  • Superior Audio - Perform with Confidence
  • Reliable Signal - Extend your range
  • Easy Setup – Own the stage
  • Battery Life – 14 hours of power
  • Systems Expansions – Run up to 12 channels per frequency band
  • Versatility Included – You’ve got options

Specifications:

  • System:
    • Wireless Technology: Analog UHF
    • Number of RF Channel Frequencies: 123
    • Included Transmitters: 1 x Bodypack
    • Diversity: Antenna Diversity
    • RF Frequency Band: J11 (596-616 MHz)
    • RF Bandwidth: 24 MHz
    • RF Channel Scanning: Auto-Scan
    • Max Operating Range: 300' / 91.4 m (Line of Sight)
    • Max Transmitters per Band: 12
    • Dynamic Range: 100 dBA
  • Receiver:
    • Receiver Type: Tabletop
    • Mounting Options: Rackmount (with Included Hardware)
    • Rackmount Size: 1 RU (1/2 Rack)
    • Antenna: 2 x 1/4 Wave External, Detachable (Rear-Mount)
    • Number of Audio Channels: 1
    • Audio I/O:
      • 1 x XLR 3-Pin Male Balanced Output
      • 1 x 1/4" TS Female Unbalanced Output
    • Audio Output Level:
      • XLR Outputs: -27 dBV (Mic Level)
      • 1/4" Outputs: -13 dBV (Instrument Level)
    • Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)
    • Impedance:
      • XLR Outputs: 200 Ohms
      • 1/4" Outputs: 50 Ohms
    • Adjacent Channel Isolation: >50 dB
    • Power Requirements: AC/DC Power Adapter
    • AC/DC Power Adapter: 12 to 15 VDC at 160 mA, Center-Positive (Included)
    • Display & Indicators:
      • 1 x Backlit LCD (AF Level, Channel, Group, Metering, RF Level)
      • 1 x LED (Transmitter Battery Status)
    • Housing: Steel
    • Dimensions: 7.8 x 2 x 6.4" / 198 x 50 x 163 mm (without Mounting Hardware, Antennas)
    • Weight: 35.2 oz / 998 g
  • Transmitter:
    • Transmitter Type: Bodypack
    • RF Output Power: 10 mW
    • Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
    • Included Cable Connector: 1/4" TS
    • Muting: Off/On Switch
    • Auto-Level Control: No
    • Gain Range: -16 to +10 dB
    • Sync Method: Manual
    • Antenna: 1 x Flexible Whip, Fixed (Beltpack)
    • Power Requirements: Battery
    • Battery Type: 2 x AA (Included)
    • Approx. Battery Life: 14 Hours (Alkaline)
    • Display & Indicators:
      • 1 x Multi-Segment LED (Channel, Group)
      • 1 x LED (Battery Status, Power)
    • Housing: ABS
    • Dimensions: 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
    • Weight: 2.6 oz / 75 g (without Batteries)
  • Microphone:
    • Microphone Type: Headset
    • Sound Field: Mono
    • Capsule: Electret Condenser
    • Polar Pattern: Cardioid
    • Frequency Range: 40 Hz to 20 kHz
    • SNR: 55 dB
    • Equivalent Noise Level: 39 dB
    • Maximum SPL: 153 dB SPL
    • Impedance: 2400 Ohms
    • Sensitivity; -59 dBV/Pa
    • Dynamic Range: 114 dB
    • Output Connector: 1 x TA4/Mini XLR 4-Pin Female (Lockable)
    • Cable Length: 3.61' / 1.1 m
    • Operating Voltage: 5 to 10 V
    • Weight: 2.54 oz / 72 g
  • Packaging Info:
    • Package Weight: 6.575 lb
    • Box Dimensions (LxWxH): 18.4 x 15.2 x 4.1"
