Shure BLX1288 Wireless Combo System with SM58 Handheld and WL185 Lavalier - J11 Band
The Shure BLX1288/W85 Wireless Combo System combines professional-quality sound with simple setup and up to 14 hours battery life for great versatility and legendary audio performance right out of the box.
The system includes BLX88 dual-channel receiver, WL185 lavalier microphone w/ BLX1 bodypack transmitter and legendary SM58 handheld transmitter, power supply, microphone clip, lavalier clip, lavalier windscreens, 2 sets of AA batteries, and user guide.
Features:
- Superior Audio - Perform with Confidence
- Reliable Signal - Extend your range
- Easy Setup – Own the stage
- Battery Life – 14 hours of power
- Systems Expansions – Run up to 12 channels per frequency band
- Versatility Included – You’ve got options
Specifications:
- System:
- Wireless Technology: Analog UHF
- Number of RF Channel Frequencies: 123
- Included Transmitters:
- 1 x Bodypack
- 1 x Handheld
- Diversity: Antenna Diversity
- RF Frequency Band: J11(596-616 MHz)
- RF Bandwidth: 24 MHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 300' / 91.4 m (Line of Sight)
- Max Transmitters per Band: 12
- Receiver:
- Receiver Type: Tabletop
- Antenna: 2 x Internal, Fixed
- Number of Audio Channels: 2
- Audio I/O:
- 2 x XLR 3-Pin Male Balanced Output
- 2 x 1/4" TS Female Unbalanced Output
- Audio Output Level:
- XLR Outputs: -27 dBV (Mic Level)
- 1/4" Outputs: -13 dBV (Instrument Level)
- Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)
- Impedance:
- XLR Outputs: 200 Ohms
- 1/4" Outputs: 50 Ohms
- Approximate RF Sensitivity: -105 dBm
- Power Requirements: AC/DC Power Adapter
- AC/DC Power Adapter: 12 to 15 VDC at 160 mA, Center-Positive (Included)
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz at 150 mA
- Display & Indicators:
- 1 x Multi-Segment LED (Channel, Group)
- 2 x LED (AF Level, Sync)
- Housing: ABS
- Operating Temperature: 0 to 135°F / -17 to 57°C
- Dimensions: 15.3 x 1.6 x 4.6" / 388 x 40 x 116 mm
- Weight: 15.1 oz / 429 g
- Transmitter:

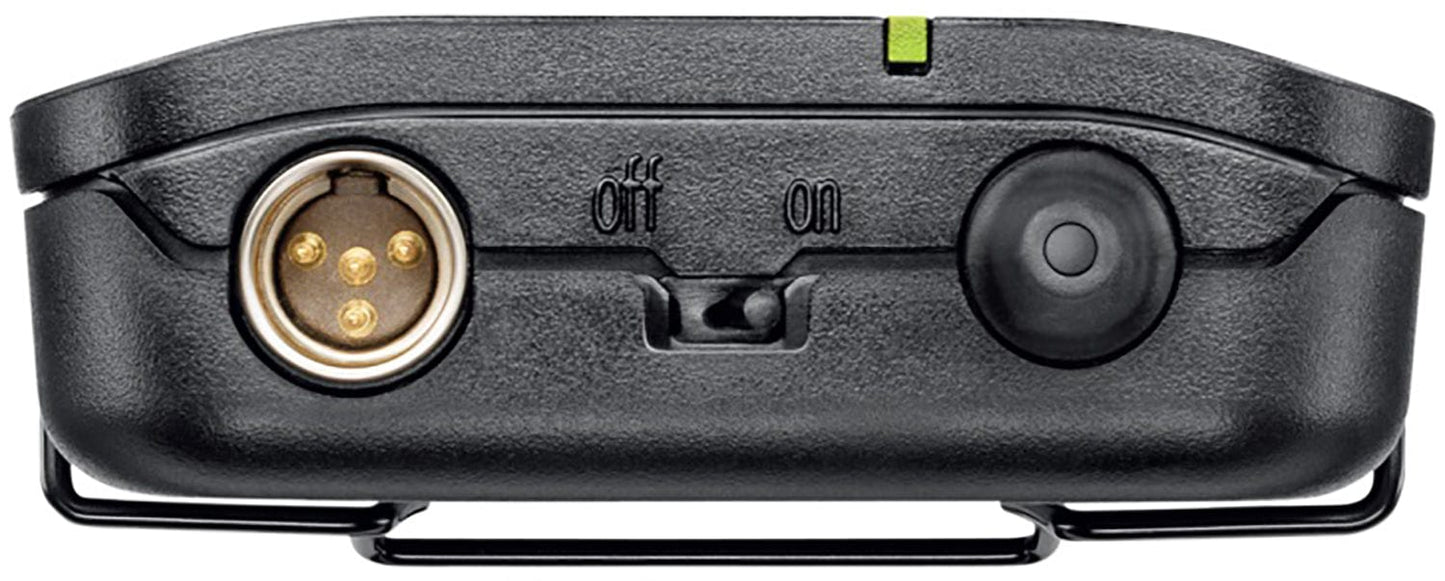

- Transmitter Type: Bodypack
- RF Output Power: 10 mW
- Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
- Muting: Off/On Switch
- Auto-Level Control: No
- Gain Range: -16 to +10 dB
- Sync Method: Manual
- Antenna: 1 x Flexible Whip, Fixed (Beltpack)
- Power Requirements: Battery
- Battery Type: 2 x AA (Included)
- Approx. Battery Life: 14 Hours (Alkaline)
- Display & Indicators:
- 1 x Multi-Segment LED (Channel, Group)
- 1 x LED (Battery Status, Power)
- Housing: ABS
- Dimensions: 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
- Weight: 2.6 oz / 75 g (without Batteries)
- Microphone:
- Microphone Type: Lavalier
- Sound Field: Mono
- Capsule: Electret Condenser
- Polar Pattern: Cardioid
- Frequency Range: 50 Hz to 17 kHz
- Equivalent Noise Level: 28 dB A-Weighted
- Maximum SPL: 130.5 dB SPL
- Impedance: 1800 Ohms
- Dynamic Range: 102.5 dB
- Output Connector: 1 x TA4/Mini XLR 4-Pin Female (Lockable)
- Cable Length: 4.00' / 1.22 m
- Operating Voltage: 1.5 to 10 V
- Transmitter 2:
- Transmitter Type: Handheld
- RF Output Power: 10 mW
- Audio I/O: None
- Muting: Off/On Switch
- Auto-Level Control: No
- Gain Range: -20 to -10 dB
- Sync Method: Manual
- Antenna: 1 x Internal (Handheld)
- Power Requirements: Battery
- Battery Type: 2 x AA (Included)
- Approx. Battery Life: 14 Hours (Alkaline)
- Display & Indicators:
- 1 x Multi-Segment LED (Channel, Group)
- 1 x LED (Battery Status, Power)
- Housing: ABS
- Dimensions: 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
- Weight: 7.7 oz / 218 g (without Batteries)
- Microphone 2:
- Second Microphone Type: Handheld Capsule
- Sound Field: Mono
- Capsule: Dynamic
- Polar Pattern: Cardioid
- Frequency Range: 50 Hz to 15 kHz
- Packaging Info:
- Package Weight: 5.05 lb
- Box Dimensions (LxWxH): 19.2 x 16.1 x 3.5"
