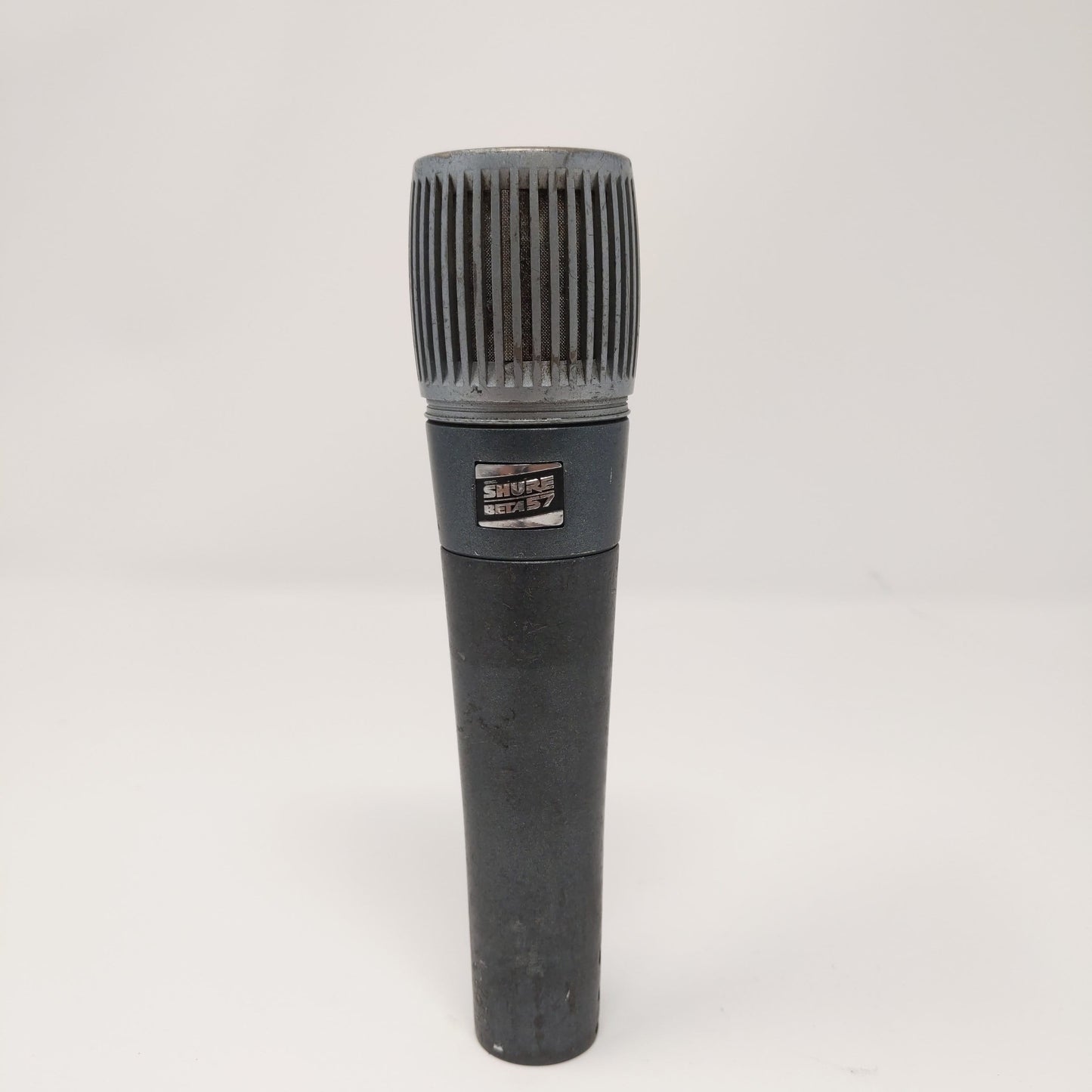

Shure BETA 57 Dynamic Supercardioid Microphone
The Beta 57 is a premium quality supercardioid, dynamic microphone, ideal for musical instrument applications. A superefficient magnetic circuit design utilizing a neodymium magnet provides maximum output voltage for improved signal-to-noise ratio in recording and sound reinforcement applications. Unlike many other supercardioid microphones, the Beta 57 retains a true supercardioid -(unidirectional) pickup pattern throughout its frequency range.
Features:
- Wide and smooth frequency response adds extra clarity and naturalness to microphone pickup
- High efficiency magnetic circuit using neodymiumiron-boron magnet increases output, maximizes signalto-noise ratio with any amplifier
- Supercardioid pattern remains uniform and symmetrical throughout the microphone's frequency range to reduce off-axis coloration and feedback, while improving separation from other sound sources
- Improved pop protection compared to other instrument microphones
- Unique and stylish grille of extra-rugged chrome-plated steel
- Humbucking coil permits use even in strong hum fields produced by lighting and power equipment
- Advanced electro-pneumatic shock mount design effec-tively minimizes transmission of handling or stand noise
- Extremely rugged and durable
- Admirable performance in the studio or on stage
- Legendary Shure reliability for years of trouble-free performance
Specifications:
- Type: Dynamic
- Frequency Response: 50 to 16,000 Hz
- Polar Pattern: Supercardioid, rotationally symmetrical about microphone axis, uniform with frequency
- Impedance: Microphone rating impedance is 150 ohms (290 ohms actual) for connection to microphone inputs rated at 75 to 300 ohms
- Output Level (at 1,000 Hz)
- Open Circuit Voltage: -71.5 dB (0.27 mv)
- Power Level: -52.0 dB
- Hum Pickup (typical): 14 dB equivalent SPL per millioersted
- Phasing: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 (see Figure 3)
- Case: Silver blue enamel painted die casting and chromeplated steel grille
- Dimensions: 16-3/16 inches(160 mm), 1-1/2 inches(38 mm), 29/32 inches (23 mm)
- Swivel Adapter: Slip in positive-action, adjustable from O to 90°, with standard 5/8"-27 thread
- Net Weight: 260 grams (9.2 oz)
- Type: Dynamic
- Frequency Response: 50 to 16,000 Hz
- Polar Pattern: Supercardioid, rotationally symmetrical about microphone axis, uniform with frequency
- Impedance: Microphone rating impedance is 150 ohms (290 ohms actual) for connection to microphone inputs rated at 75 to 300 ohms
- Output Level (at 1,000 Hz)
- Open Circuit Voltage: -71.5 dB (0.27 mv)
- Power Level: -52.0 dB
- Hum Pickup (typical): 14 dB equivalent SPL per millioersted
- Phasing: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 (see Figure 3)
- Case: Silver blue enamel painted die casting and chromeplated steel grille
- Dimensions: 16-3/16 inches(160 mm), 1-1/2 inches(38 mm), 29/32 inches (23 mm)
- Swivel Adapter: Slip in positive-action, adjustable from O to 90°, with standard 5/8"-27 thread
- Net Weight: 260 grams (9.2 oz)
