Description
Shure ANIUSB-MATRIX-TA 4CH IN/2CH OUT USB MX,DNTE,BLK TAA
Audio network interface connects up to 4 Dante channels and 1 analog output to a room's audio and video conferencing system via USB connection. Internal matrix mixer offers flexible routing, allowing users to route any input to any output.
Details
- Connects 4 Dante audio inputs and 1 analog input to an A / V conferencing system or a PC-based videoconferencing application

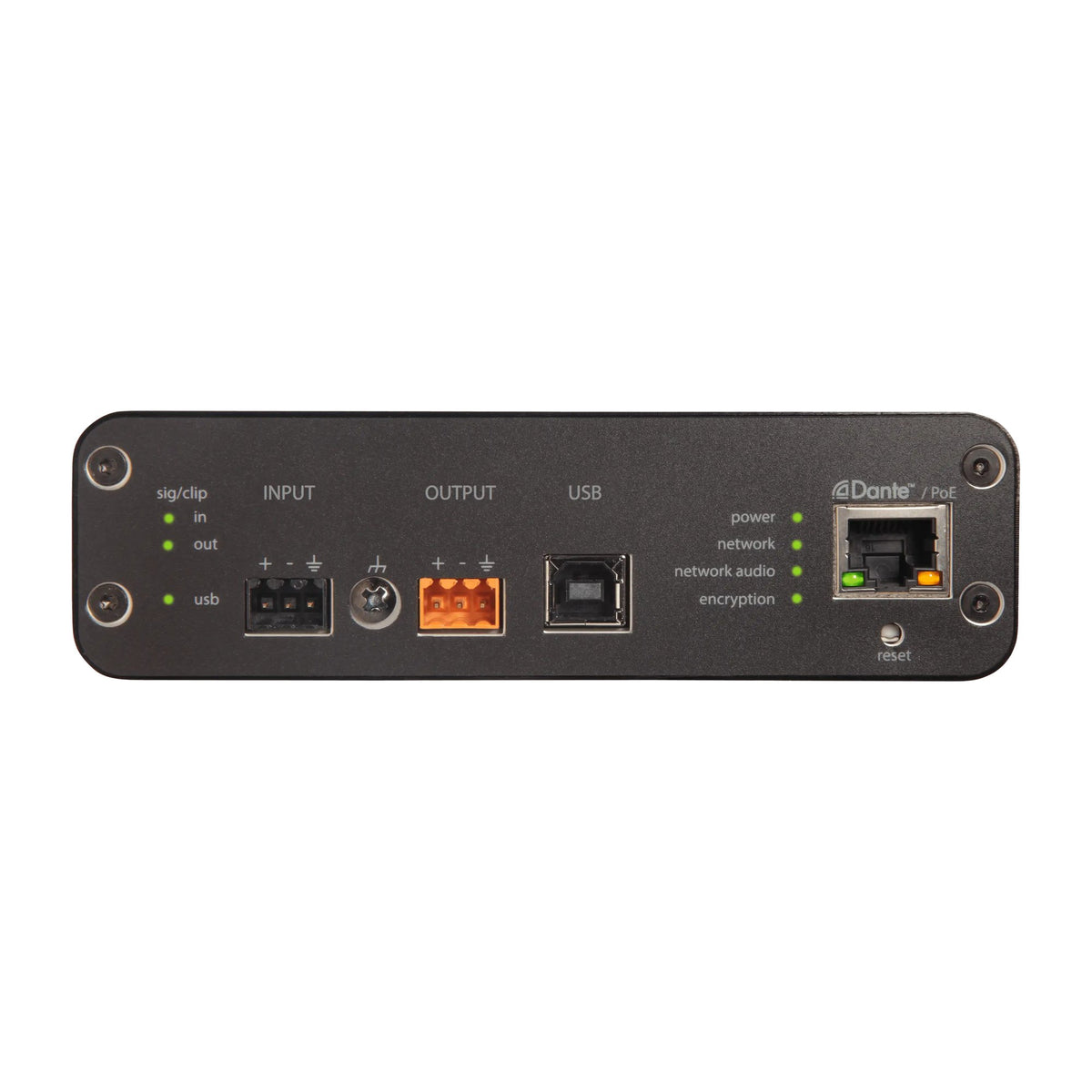

- Flexible signal routing and connectivity: analog audio (1 block in / 1 block out) to room A / V conferencing system; USB (1 in / out) to connect to laptop or room PC
- Power-over-Ethernet (PoE) eliminates the need for an outboard power supply
- Compact form factor is easy to mount without equipment rack
The ANIUSB-MATRIX USB Audio Network Interface complements the existing ANI4IN, ANI4OUT, and ANI22 products. It offers the ideal performance, connectivity, and affordability for audio/video conferencing installations in small and medium-size meeting rooms when a premium microphone solution is desired, and acoustic echo cancellation of an A / V conferencing codec will be used.
The ANIUSB-MATRIX connects 4 Microflex® Advance™ or Microflex® Wireless microphone channels via Dante (4 in / 2 out), and provides analog connectivity (1 block in / 1 block out) to a room audio / video conferencing system or a PC-based A / V conferencing application via USB (1 in / out).
An internal matrix mixer offers flexible routing, allowing users to route any input to any output. A 4-band parametric EQ filter is also available on the analog and USB outputs.
The ANIUSB-MATRIX supports standards-based security protocols to manage access and protect data, including 802.1x, secure boot/storage, and AES encryption for control and audio data.
