Description

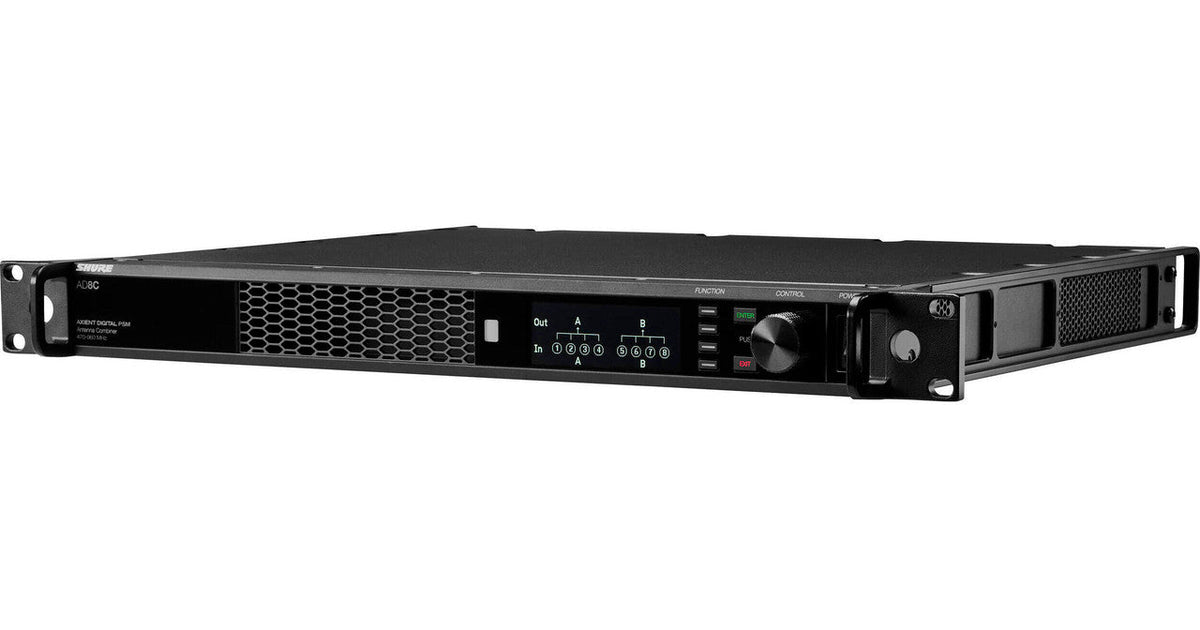

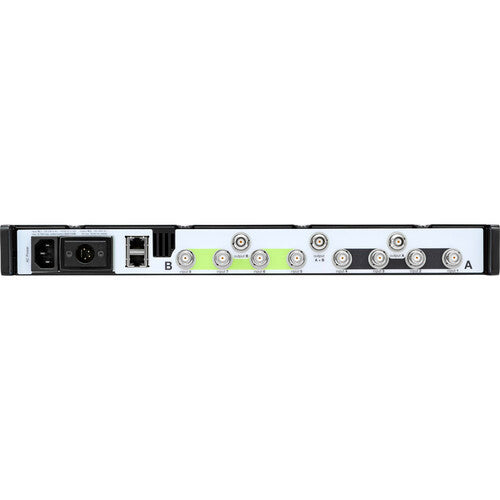

Shure AD8CDC AXIENT DIGITAL PSM 8-PORT COMBINER DC MODULE 470-960 MHz
Streamline your Axient PSM transmit antenna setup with the AD8C Axient Digital PSM 8-Port Combiner from Shure. The unit combines the RF outputs from up to 8 different ADTQ or ADTD Axient PSM transmitters into a single output to feed a single transmit antenna, helping to eliminate intermodulation noise when multiple antennas are deployed in the same space. Alternatively, the AD8C can combine the output of up to 4 Axient PSM transmitters to feed two antennas; this supports Spatial Diversity for improved reception and greater coverage area. The combiner enables Automatic Transmitter Compensation with the ADTQ or ADTD Axient Digital PSM transmitters, which helps defend against passive signal loss. This version of the combiner features a DC input for power redundancy.
At a Glance
Eight-port passive antenna combiner for Axient Digital PSM
Selectable 8:1 or 2x 4:1 modes
8:1 mode combines up to 32 WMAS channels
2x 4:1 mode combines up to 16 WMAS channels
Automatic Transmitter Compensation with ADTQ or ADTD Axient Digital PSM transmitters
Ethernet switch for remote control and firmware updates
Built-in DC module to support redundant power
