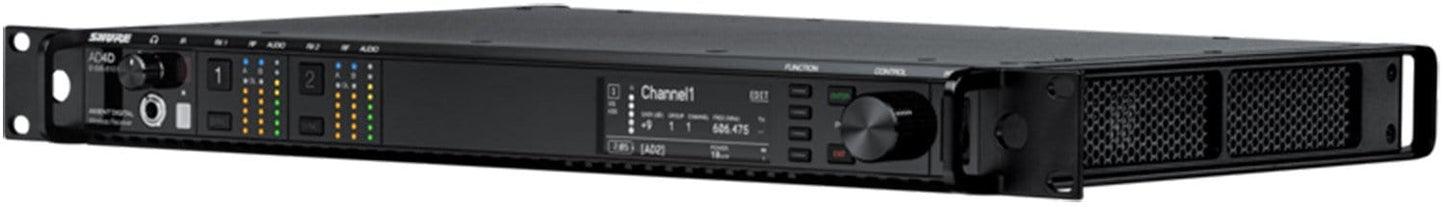

Shure AD4D 2-Channel Digital Receiver UHF 470-626Mhz
Axient Digital offers dual and quad receiver options that open the door to a full range of features, from high-performance RF to transparent digital audio. The AD4D Two-Channel Digital Receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency, and High Density (HD) mode, ensuring solid performance in the most challenging RF environments. Networked control, AES3 + AES67 + Dante™ output, and signal routing options bring a new level of management and flexibility to your entire workflow.
Features:
- Works with Axient® Digital Wireless Systems
- Features networked control and signal routing options, plus mobile monitoring and control capabilities
- Available with or without accessories
- Wide tuning range up to 184 MHz
- True digital diversity reception per channel for drop-out resistance
- Networked control with Wireless Workbench® software and ShurePlus™ Channels iOS app
- Front panel headphone jack enables Dante™ Cue and Dante™ Browse monitoring
- Configurable Ethernet switch for redundant Dante or AES67 digital output
- AES3 output
- Channel Quality meter displays RF signal-to-noise
- Locking AC connectors
- DC module version available to support redundant power
Specifications:
- PHYSICAL:
- Dimensions (H × W × D): 1.7 × 19.0 × 13.1 in (44 × 483 × 333 mm)
- Weight: 10.1 lb (4.6 kg) without antennas
- Housing: Steel; extruded aluminum
- Power Requirements:
- 100 to 240 VAC, 50–60 Hz
- 0.68 A max
- Thermal Dissipation:
- Maximum: 23 W (78 BTU/hr)
- Idle: 15 W (6)
- AUDIO OUTPUT
- Gain Adjustment Range: –18 to +42 dB in 1 dB steps (plus Mute setting)
- Configuration:
- 1/4" (6.35 mm): Transformer-coupled Balanced
- (Tip=audio, Ring=no audio, Sleeve=ground)
- XLR: Transformer-Coupled Balanced(1=ground, 2=audio +, 3=audio –)
- Impedance: (Typical, XLR Line Out) 100 Ω
- Full Scale Output (200 kΩ load):
- 1/4" (6.35 mm): +8 dBV
- XLR (LINE setting): +18 dBV
- XLR (MIC setting): –12 dBV
- Mic/Line Switch: 30 dB pad
- Phantom Power Protection: Yes
- NETWORKING
- Network Interface:
- 10/100 Mbps, 1 Gbps, Dante Digital
- Audio
- Network Addressing Capability: DHCP or Manual IP address
- Maximum Cable Length: 100 m (328 ft)
- CASCADE OUTPUT
- Connector Type: BNC
- Configuration: Unbalanced, passive
- Impedance: 50 Ω
- Insertion Loss: 0 dB, typical
- RF INPUT
- Spurious Rejection: >80 dB, typical
- Connector Type: BNC
- Impedance: 50 Ω
- Bias Voltage: 12-13.5 VDC, 150 mA maximium, per antenna, switchable on/off
- RF Carrier Frequency Range Model-Dependent:
- AD4D=A: 470–636 MHz
- AD4D=B: 606–810 MHz
- AD4D=C: 750–960 MHz
- PHYSICAL:
- Dimensions (H × W × D): 1.7 × 19.0 × 13.1 in (44 × 483 × 333 mm)
- Weight: 10.1 lb (4.6 kg) without antennas
- Housing: Steel; extruded aluminum
- Power Requirements:
- 100 to 240 VAC, 50–60 Hz
- 0.68 A max
- Thermal Dissipation:
- Maximum: 23 W (78 BTU/hr)
- Idle: 15 W (6)
- AUDIO OUTPUT
- Gain Adjustment Range: –18 to +42 dB in 1 dB steps (plus Mute setting)
- Configuration:
- 1/4" (6.35 mm): Transformer-coupled Balanced
- (Tip=audio, Ring=no audio, Sleeve=ground)
- XLR: Transformer-Coupled Balanced(1=ground, 2=audio +, 3=audio –)
- Impedance: (Typical, XLR Line Out) 100 Ω
- Full Scale Output (200 kΩ load):
- 1/4" (6.35 mm): +8 dBV
- XLR (LINE setting): +18 dBV
- XLR (MIC setting): –12 dBV
- Mic/Line Switch: 30 dB pad
- Phantom Power Protection: Yes
- NETWORKING
- Network Interface:
- 10/100 Mbps, 1 Gbps, Dante Digital
- Audio
- Network Addressing Capability: DHCP or Manual IP address
- Maximum Cable Length: 100 m (328 ft)
- Network Interface:
- CASCADE OUTPUT
- Connector Type: BNC
- Configuration: Unbalanced, passive
- Impedance: 50 Ω
- Insertion Loss: 0 dB, typical
- RF INPUT
- Spurious Rejection: >80 dB, typical
- Connector Type: BNC
- Impedance: 50 Ω
- Bias Voltage: 12-13.5 VDC, 150 mA maximium, per antenna, switchable on/off
- RF Carrier Frequency Range Model-Dependent:
- AD4D=A: 470–636 MHz
- AD4D=B: 606–810 MHz
- AD4D=C: 750–960 MHz
