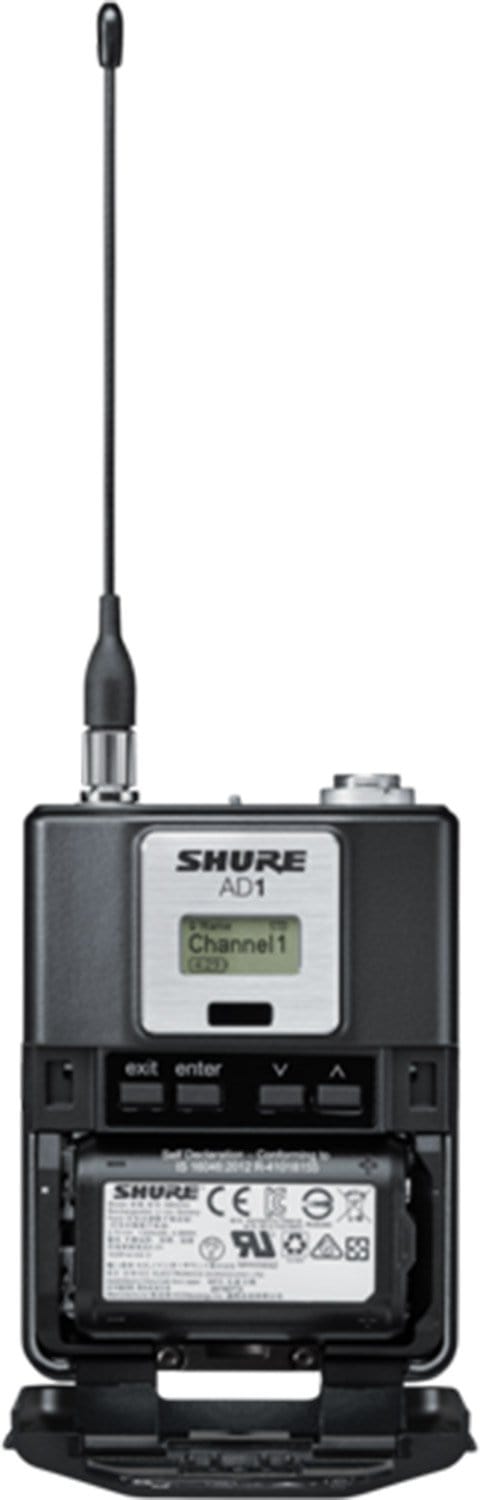

Shure AD1G57 Belt Pack Transmitter G57 470-616Mhz

The AD1 is a wireless bodypack transmitter compatible with Axient® Digital Wireless Systems. With breakthrough RF performance and wide tuning up to 184 MHz, the AD1 puts professional-quality wireless digital audio within reach.

Features:

• Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
• Encryption-enabled, secure transmission
• Two connector options: TA4 and LEMO3
• Detachable ¼-wave antenna
• AA or SB900B lithium-ion rechargeable batteries for convenient power options
• External contacts for docked charging

Specifications:

• Shure AD1 Specs
  • Wireless Transmission: Digital UHF
  • RF Frequency Band: 470 to 616 MHz
  • RF Bandwidth: 146 MHz
  • Frequency Step Size: 25 kHz
  • Max Operating Range: 328.1' / 100 m (Line of Sight)
  • Latency: 2 to 2.9 ms (Selectable)
  • Encryption: AES 256
  • Modulation: Proprietary
• Transmitter
  • Form Factor: Bodypack
  • RF Output Power: 2 / 10 / 35 mW
  • Audio: I/O 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
  • Pad: 12 dB
  • Muting: Off/On Switch
  • Audio Input Level:
    • 8.5 dBV / 7.5 Vpp (Pad Off)
    • 20.5 dBV / 30 Vpp (Pad On)
  • Gain Range: -12 to +21 dB (1 dB Steps)
  • Sync Method: IR
  • Antenna: 1 x 1/4 Wave Flexible Whip, Detachable (Beltpack)
  • Power Requirements: Battery
  • Battery Type:
    • 2 x AA (Included, Replaceable)
    • 1 x Rechargeable (Not Included, Replaceable)
  • Approx. Battery Life:
    • 8 Hours (Alkaline)
    • Med.: 9 Hours (Lithium Rechargeable)
  • Display & Indicators: 1 x Backlit LCD (Battery Status, Channel, Group, Signal Strength)
  • Housing: Aluminum
  • Operating Temperature: 0 to 122°F / -17 to 50°C
  • Storage Temperature: -20 to 165°F / -28 to 73°C
  • Dimensions: 2.6 x 3.4 x 0.9" / 66 x 86 x 23 mm (without Antennas)
  • Weight: 5.5 oz. / 155 g (without Batteries)
• Packaging Info
  • Package Weight: 1.085 lbs.
  • Box Dimensions (LxWxH): 12.7 x 4.9 x 3.35"
