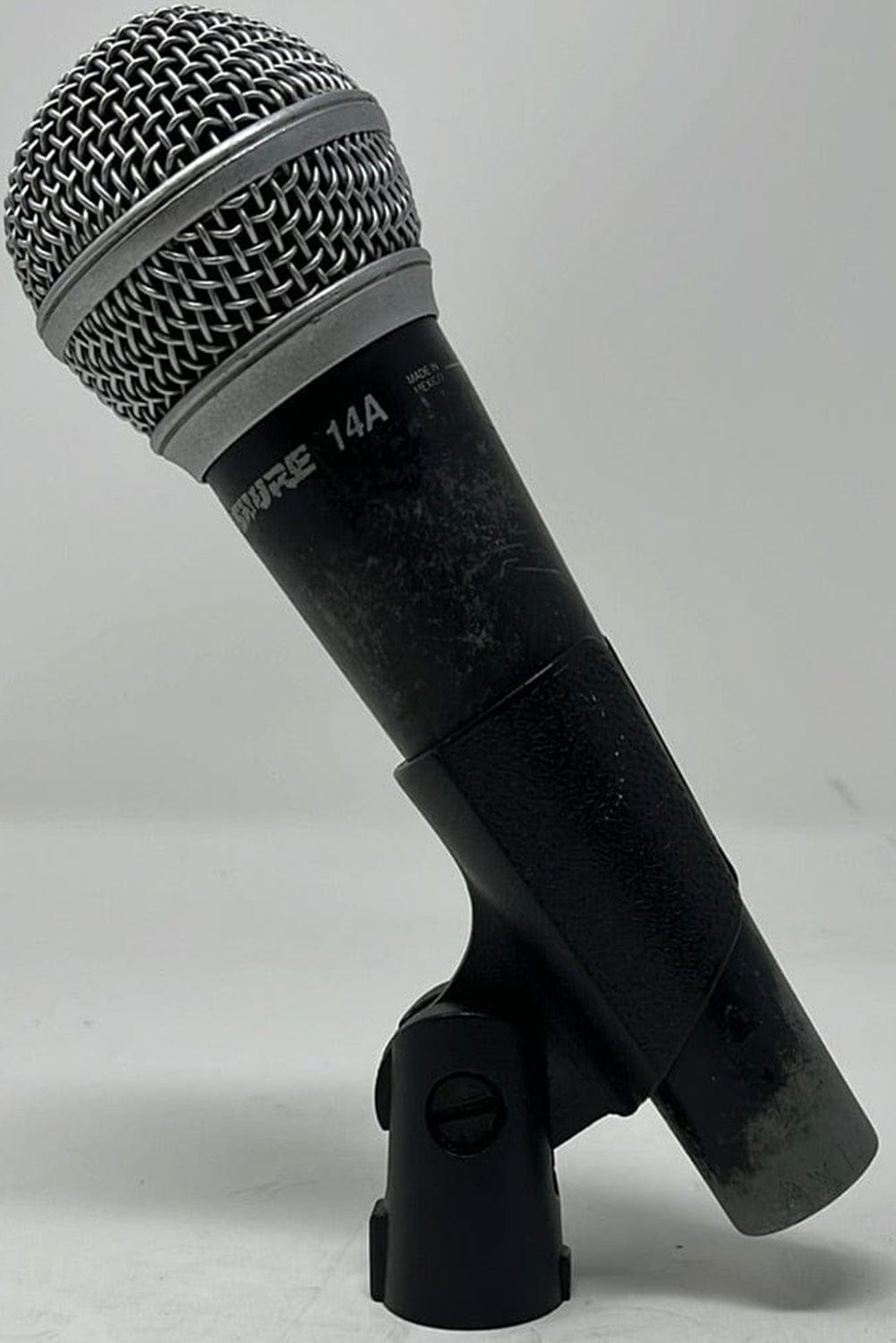

Shure 14A Handheld Dynamic Microphone
The 14A microphone can be used for karaoke, in sound reinforcementor recording, to pick up voices or instruments, indoors or outdoors.
Features
- Tailored frequency response provides vocal intelligibility and crispness
- Neodymium magnet for high signal-to-noise ratio
- Shock mount reduces handling noise
- Cardioid (unidirectional) pickup pattern suppresses feedback
- Locking On/Off switch
Specifications
- Type
- Dynamic
- Frequency Response
- 80 to 14,000 Hz
- Pickup (Polar) Pattern
- Cardioid (unidirectional)
- Impedance (Z)
- Low, rated 150
- Output Level (at 1 kHz)
- Open Circuit Voltage: –56.0 dBV/Pa (0.16 mV) (1 Pa = 94 dB SPL)
- Polarity
- Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3.
- Connector
- Three-pin professional audio connector (male XLR)
- Switch
- Built–in locking On/Off switch, with lockplate. To lock switch On, loosen screw, push lockplate forward, then tighten screw.
- Weight
- 255 g (9 oz)
- Certifications
- Conforms to European Union directives, eligible to bear CE marking; meets European Union EMC Immunity Requirements (EN 50082–1: 1992).
- Type
- Dynamic
- Frequency Response
- 80 to 14,000 Hz
- Pickup (Polar) Pattern
- Cardioid (unidirectional)
- Impedance (Z)
- Low, rated 150
- Output Level (at 1 kHz)
- Open Circuit Voltage: –56.0 dBV/Pa (0.16 mV) (1 Pa = 94 dB SPL)
- Polarity
- Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3.
- Connector
- Three-pin professional audio connector (male XLR)
- Switch
- Built–in locking On/Off switch, with lockplate. To lock switch On, loosen screw, push lockplate forward, then tighten screw.
- Weight
- 255 g (9 oz)
- Certifications
- Conforms to European Union directives, eligible to bear CE marking; meets European Union EMC Immunity Requirements (EN 50082–1: 1992).
