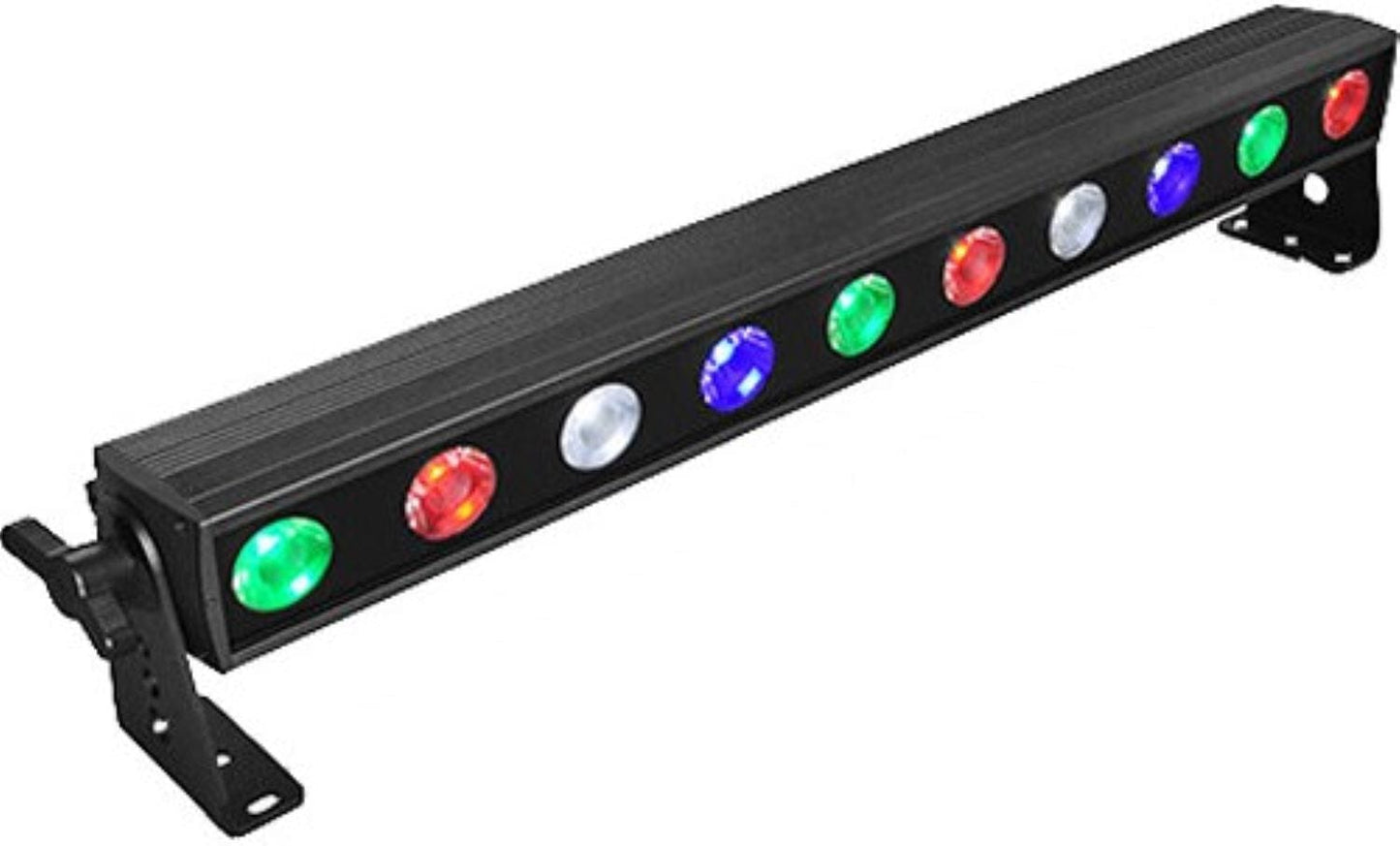

Showline SLSTRIP10IP RGBW IP65 Weatherproof Bar Light

The SL STRIP 10 IP is the ideal choice for outdoor entertainment applications, and wet environments. Ten cells of homogenized RGBW LEDs deliver a blended wash of color, emulating the traditional halogen strip light eff etc, with reduced power consumption, lower heat output, and minimal maintenance. Control each cell individually for maximum flexibility, or in groups for applications requiring simpler control. The SL STRIP 10 IP can be easily configured to suit your design requirements. Choose the appropriate dimming curve, utilize the in-built chase programs, and adjust the beam angle by inserting one of the optional holographic diffuser lenses. With its rugged construction, internal power supply and simple operating system, the SL STRIP 10 IP is an ideal replacement for conventional MR-16 strip lights for all outdoor entertainment applications.

Features:

• Rugged construction
• 10 homogenized RGBW LEDs
• 8-bit DMX-512A operates as 16-bit smooth resolution
• On-board LCD menu system for addressing and setup
• Remote configuration available via RDM
• DMX-512A (RDM) in and thru connections - 1m cable tails
• In and thru power connections - 1m cable tails
• Built-in preset and chase program
• Silent passive cooling
• Harmonize Color Calibration technology

Specifications:

• Source:
  • LED: 10 x Quad chip RGBW
  • Source Max Power Consumption: 10 x 10 W
  • Dimming: Electronic 8-bit / 16-bit
  • Dimmer Curves: Square Law (Default), Linear, S -Curve
  • Tungsten Fade: Selectable on/off
  • Strobe Speed: 0 - 30Hz
  • Strobe Modes: Continuous, Random, Random Sync
• Optical Performance:
  • Beam Angle: 10°
  • Output Lumens: 35000
  • Default Color Output Color Temperature: 6500 K (White LED Only)
  • CRI RA: > 90
• Color System:
  • Additive Color Mixing: RGBW
  • Color Mixing Control: RGBW 8-bit, RGBW 16-bit, HSIC
  • Color Calibration: Selectable On/Off
• Electrical:
  • Max output Power Consumption: 230 W
  • Power Connection: Inline Power Input - Thru
  • Input Voltage: 100–240 VAC, 50 / 60 Hz
• Data:
  • Supported Protocols: DMX512-A (RDM)
  • DMX Modes:
    • 16-Bit: 8 / 16 / 40 / 80 Channels
    • 8-Bit: 4 / 8 / 20 / 40 Channels
  • Data Connections: 5 - Pin XLR Input and Thru
  • Pixel Control: 1 / 2 / 5 / 10 Pixels
  • Manual Mode: On Board local Control
• Noise Level / Fan Control:
  • Cooling System Type: Convection
• Mounting:
  • Yoke / Feet Type: 2 x 180° Swivel M12 (1/2") Fixing point
  • Fixture mounting/Hanging orientation: Hanging - Floor - Side
  • Secondary Safety Wire Point:
  • 2 x Safety Point located rear of fixture
  • Safety Wire not included
• Physical:
  • Construction:
    • Superstructure made of Aluminum, and steel metal plates, Covers
    • Aluminum
  • IP Rating: IP65
  • Standard Finish: Black
  • Dimensions: 959 x 201 x 120 mm (38.0 x 8.0 x 5.0 in)
